WING
CONTOUR
CAUTION
TO
REPRODUCE
THIS
PATTERN
FROM
AEROFICHE,
TO
CORRECT
SCALE
ON
PAPER.
READER/PRINTER
LENS
MUST
BE
42X
MAGNIFICATION.
PITOT
TUBE
CONTOUR
.059
"
HOLE
THRU
AIRCRAFT
SERIAL
17701164
.098
"
HOLE
AIRCRAFT
SERIALS
17701165
THRU
17701370
.078
"
HOLE
AIRCRAFT
SERIALS
17701371
AND
ON

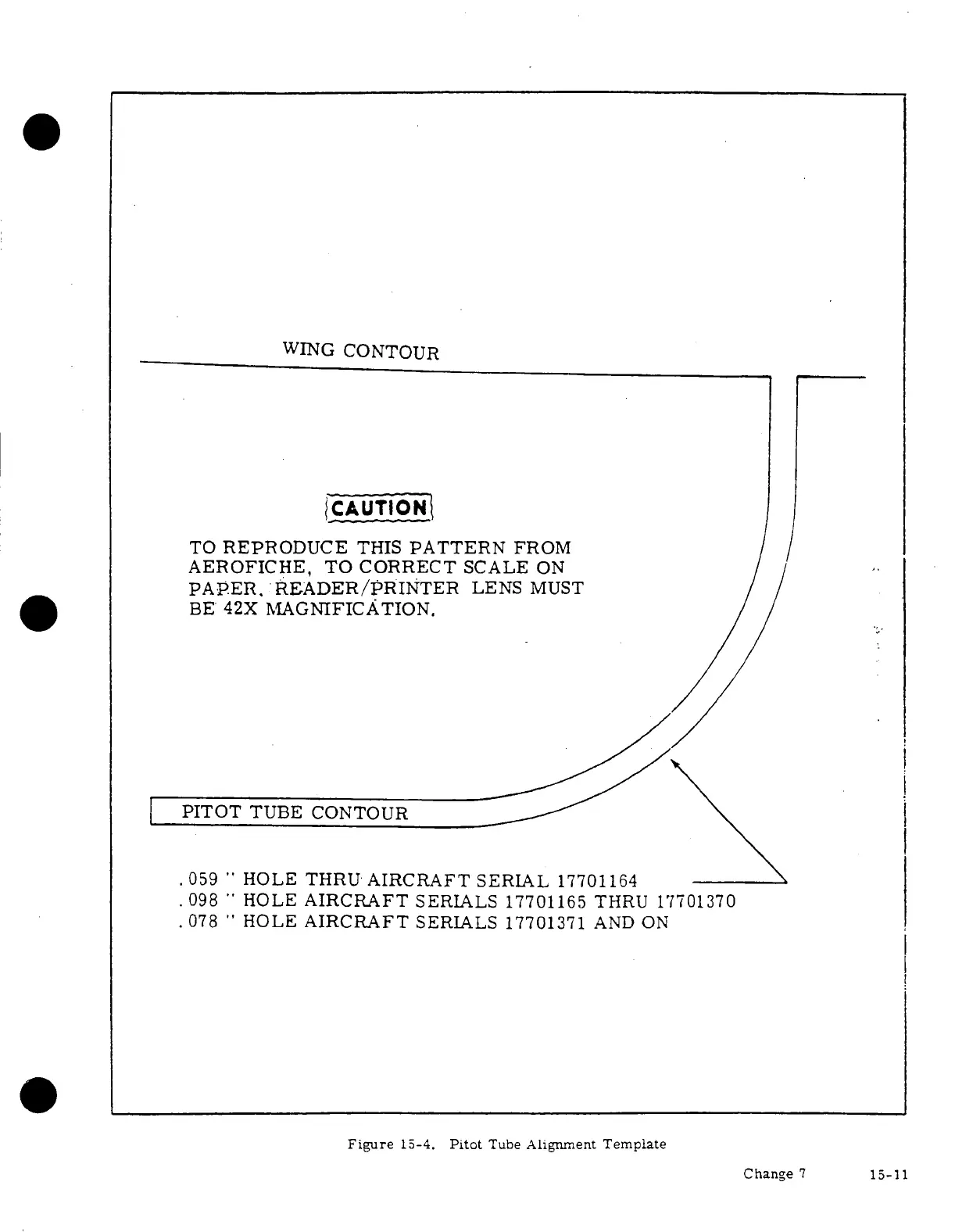

Figure
15-4.
Pitot
Tube
Alignment
Template
Change
7
15-11
