Cessna 177 SERIES Service Manual

PILOT
AND COPILOT
SEAT
2 3
THRU AIRCRAFT
"-J Q SERIAL 17701164
/
6
2
32
4
5
AIRCRAFT SERIALS
17701165
THRU
17701773
RECLINING
BACK
Detail A
(STANDARD)
12
7
2
-----
'8
/15
4
BEGINNING WITH
Detail
A
1.
Fore/Aft
Adjustment
9.
Web
Handle
10.
Cover
2.
Link
11.
Roller
3.
Spring
12.
Torque
Tube
4
4.
Bushing
13.
Recline
Handle
5.
Bellcrank
14.
Housing
6.
Adjustment
Pin
_
15.
Bellcrank
Assembly
7.
Bushing
16.
Seat
Belt
Retainer
B
8.
Adjustment
Pawl
SERIAL
17702314

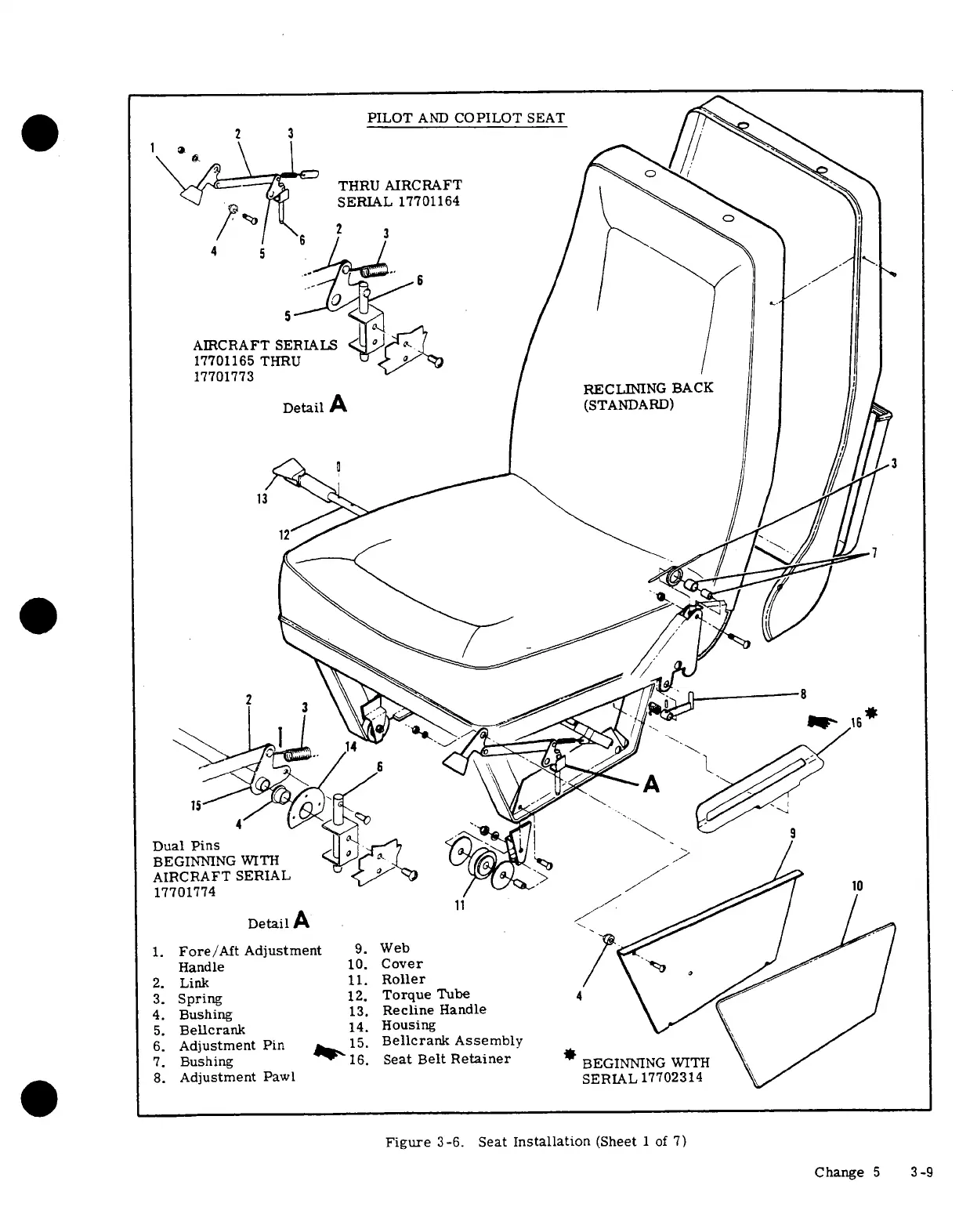

Figure 3-6. Seat
Installation (Sheet
1 of 7)
Change 5 3 -9

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
