Cessna 177 SERIES Service Manual

SAFETY
WIRE
HOLE
3 13
3 -11Lkn -- ,
1
i ^... "
/·14
N2
15
NOTSAFETY WIRE HOLE
NOTE 16
*THRU
SERIAL 17702429
NOTE
*BEGINNING
WITH SERIAL 17702430
Torue
nut (15) to 25-30
lb in.
1.
Spring
6. Plate
12.
O-Ring
2. Washer
7.
O-Ring
13. Bowl
3. Plunger
8. Gasket
14. O-Ring
4. Top
9. Filter
15.
Nut
5. Drain Control
10. Retainer Ring
16. Drain Line
11. Standpipe
i
17. Collar

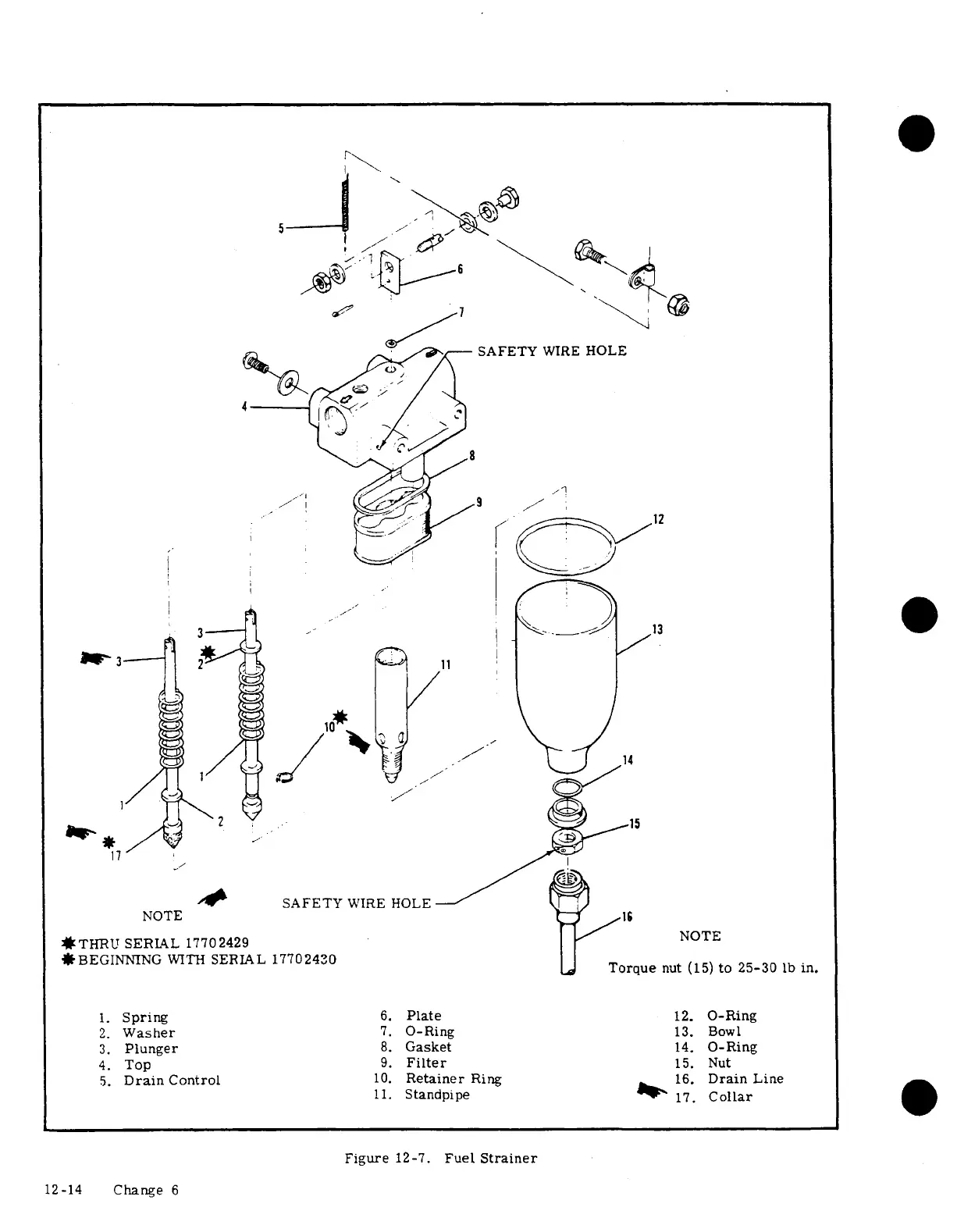

Figure 12-7. Fuel Strainer
12-14
Change
6

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
