Cessna 177 SERIES Service Manual

. ..
-^.K .
--- STOPDRILL
CRACK
IF CRACK
DOES
NOT
EXTEND
TO
EDGE
OF PART
DOUBLER -
2024-T3
ALCLAD ~ e
1/4"
EDGE
MARGIN
A-A
MS20470AD4
RIVETS
ORIGINAL
PARTS
::i:::::::::
REPAIR
PARTS
REPAIR
PARTS
IN
CROSS
SECTION

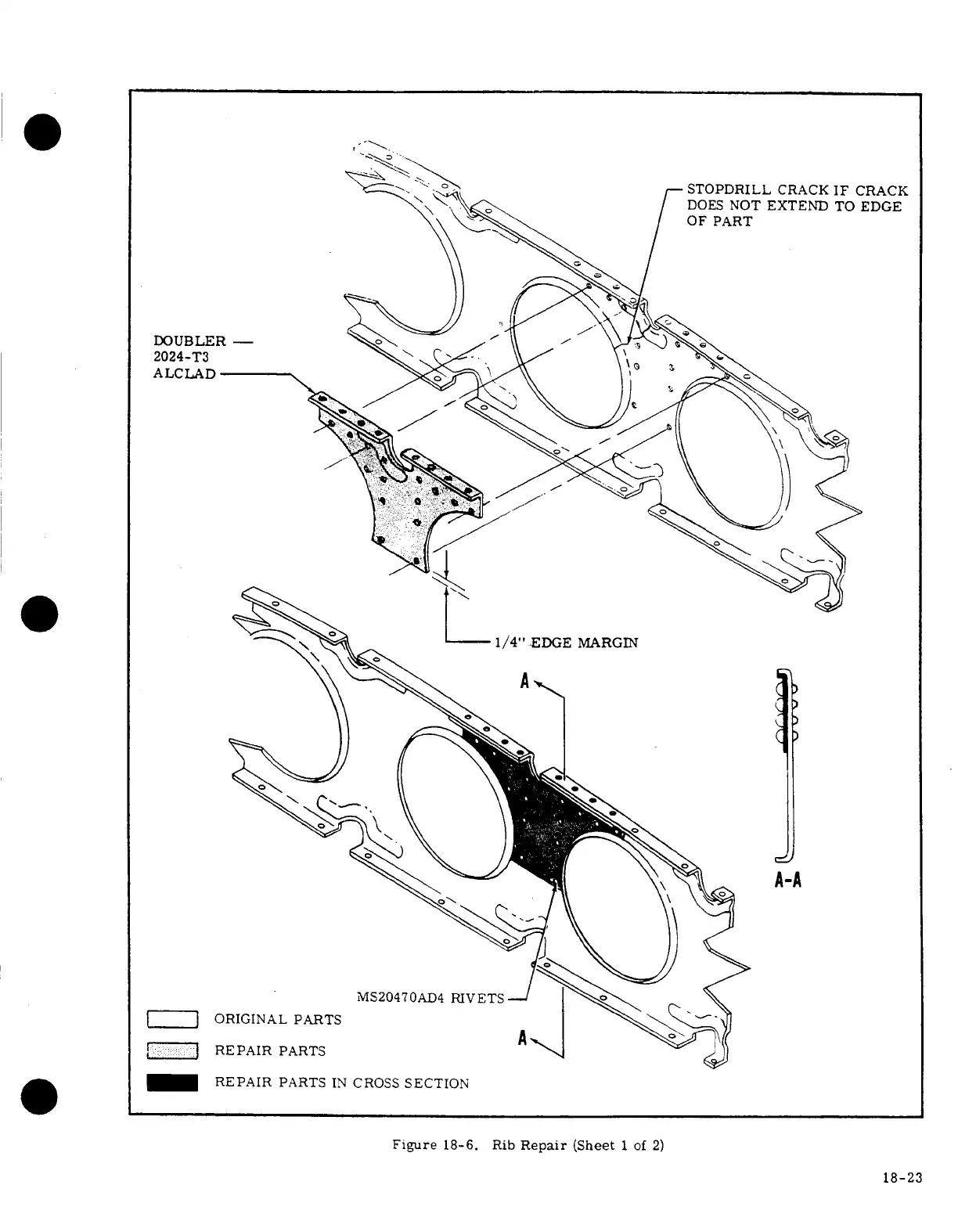

Figure 18-6.
Rib Repair
(Sheet 1 of 2)
18-23
