Cessna 177 SERIES Service Manual

FILLER - 2024-T4 ALCLAD
A-A__~
DOUBLER
-
2024-T3
ALCLAD
CLEAN
OUT DAMAGED
AREA
F3/4" RIVET
. .
SPACING
-
- /
-
RADIUS
-
2 ROWS
RIVETS
OUTBOARD
OF LIGHTENING HOLE
1/4"
MARGIN
CHANNEL
DOUBLER
- 2024-T4
ALCLAD
A AN470AD4 RIVETS
ORIGINAL
PARTS
REPAIR
PARTS
REPAIR
IN
CROSS
SECTION

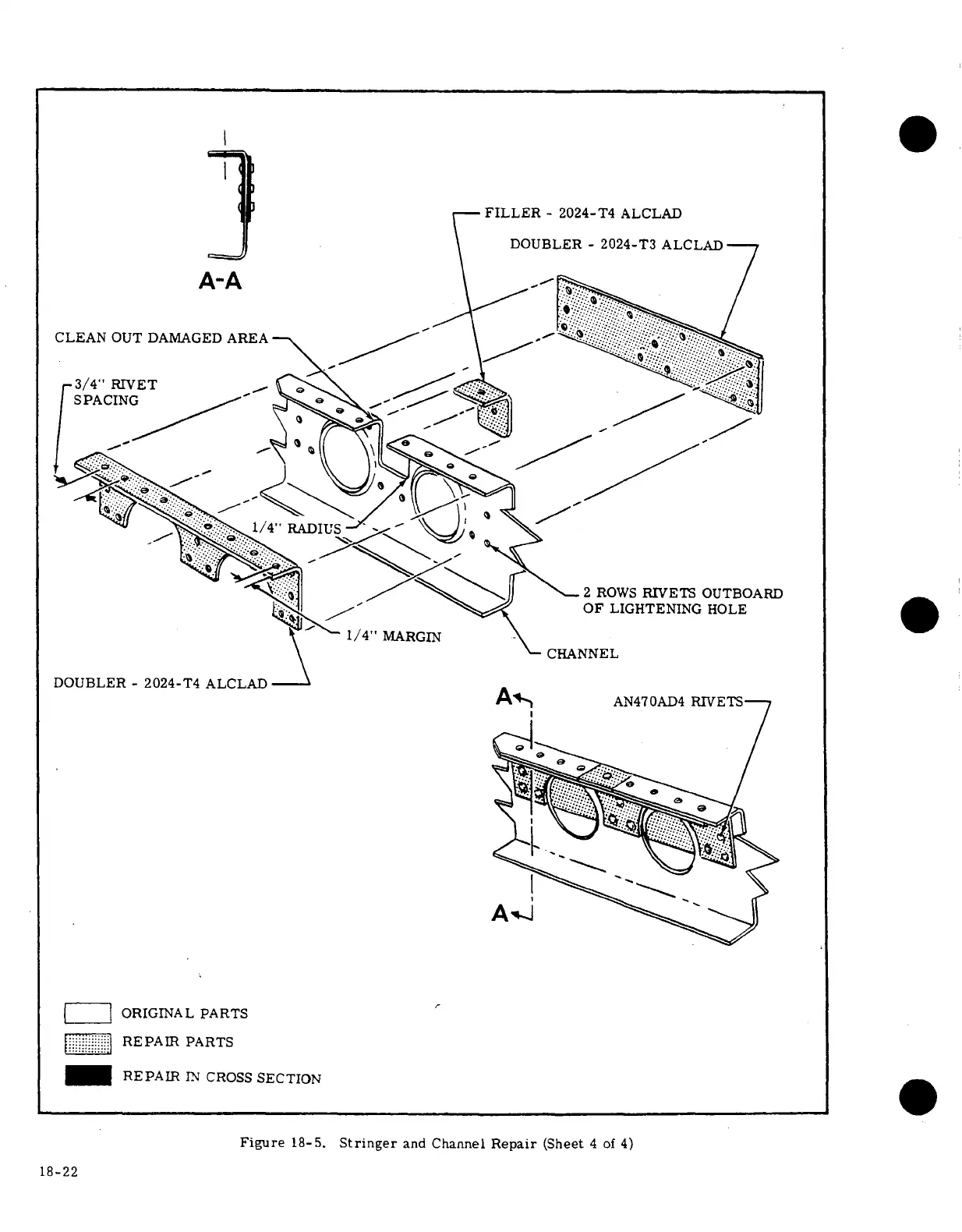

Figure 18-5.
Stringer and Channel
Repair (Sheet 4 of 4)
18-22
