Cessna 177 SERIES Service Manual

ic'^ ~ ALL LINKAGE
f{ \ ~ POINT PIVOTS
OG6 ,,~ /...? .
PARKE;G BRAKE
RUDDER BARS
AND PEDALS
FANDLE
SHAFT
GL
~~~~GL ~
GL
,'-
'
VING-ATTACH
BUSHINGS
-
NOTES
Seaied
bearings require
no lubrication.
0Do not lubricate roller
chains or cables except under seacoast
conditions. Wipe
with a clean, dry cloth.
Lubricate
unsealed pulley
bearings, rod ends,
Oilite bearings,
pivot and hinge
points. and any
other friction
point obviously needing
lubrication,
with general pur-
pose oil every
1000 hours or oftener
if required.
Paralfin wax
rubbed on seat
rails will ease
sliding the seats
fore and aft.
Lubricate door
latching mechanism
with MIL-G-81322A
general purpose
grease,
applied sparingly
to friction points, every 1000 hours
or oftener if binding occurs.
No lubrication is recommended on the rotary clutch.

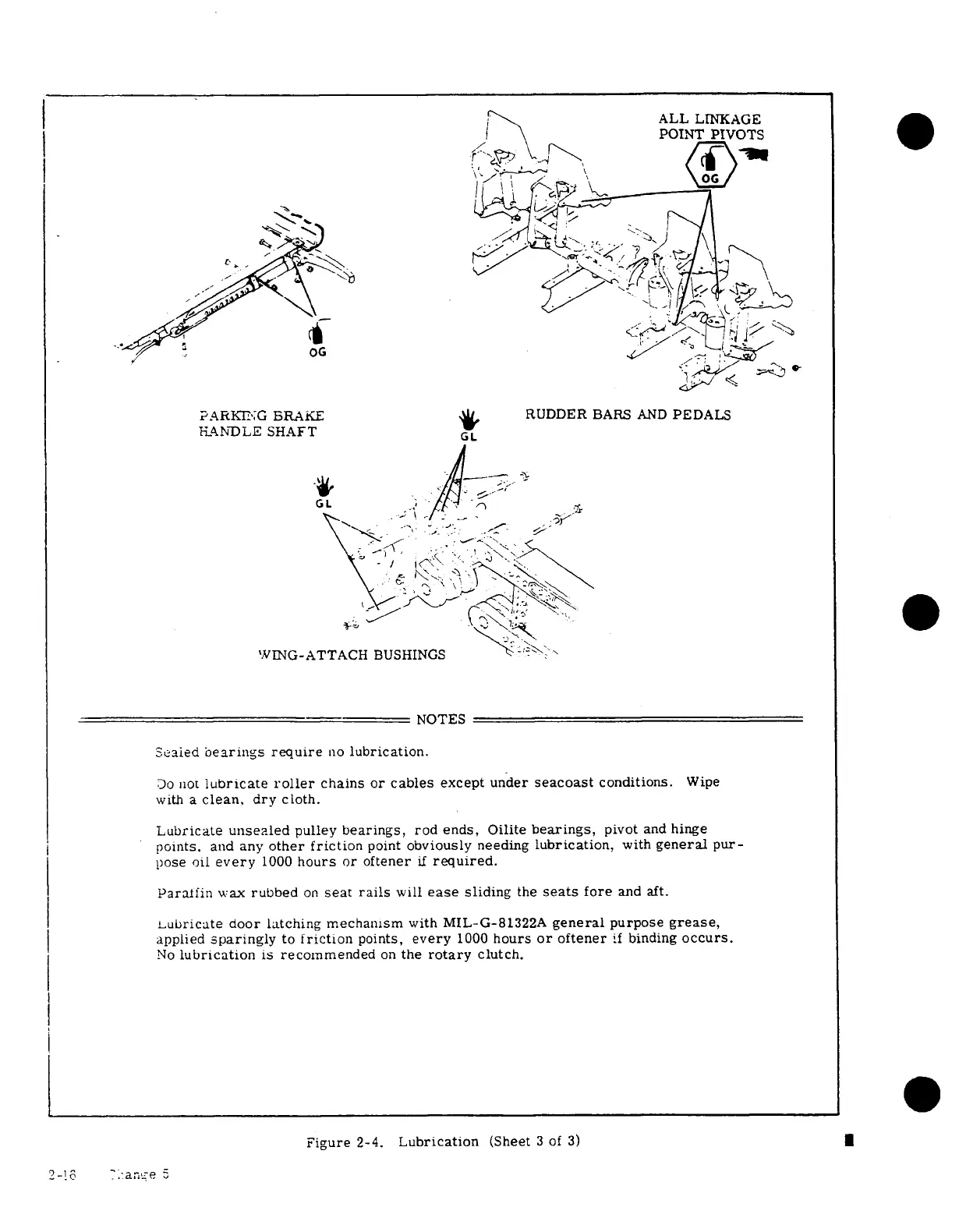

Figure 2-4. Lubrication
(Sheet
3 of 3)
?2-16 -:an-e 5

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
