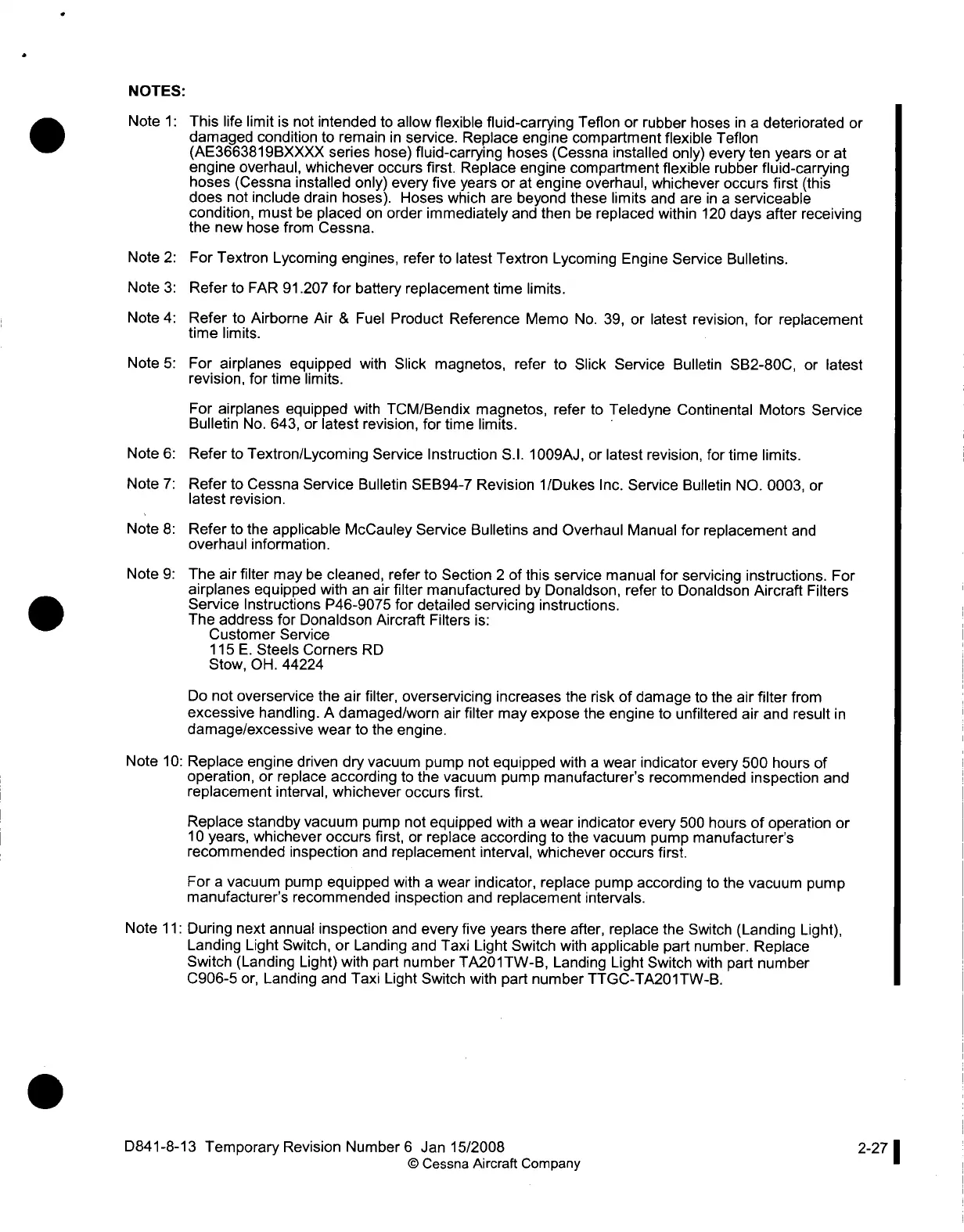

Cessna 177 SERIES Service Manual

NOTES:
Note 1:
This life
limit
is not intended
to allow
flexible
fluid-carrying
Teflon
or
rubber
hoses
in a deteriorated
or
damaged
condition
to
remain
in service.
Replace
engine
compartment
flexible
Teflon
(AE3663819BXXXX
series
hose)
fluid-carrying
hoses
(Cessna
installed
only)
every
ten years
or
at
engine
overhaul,
whichever
occurs
first. Replace
engine
compartment
flexible
rubber
fluid-carrying
hoses
(Cessna
installed
only)
every
five years
or at
engine overhaul,
whichever
occurs
first
(this
does
not include
drain
hoses).
Hoses
which
are beyond
these
limits
and are
in a serviceable
condition,
must
be
placed
on order
immediately
and then
be
replaced
within
120 days
after
receiving
the
new
hose
from
Cessna.
Note
2:
For Textron
Lycoming
engines,
refer
to
latest Textron
Lycoming
Engine
Service
Bulletins.
Note 3:
Refer
to FAR 91.207
for
battery replacement
time limits.
Note
4:
Refer to
Airborne
Air
& Fuel
Product
Reference
Memo
No.
39, or
latest revision,
for replacement
time
limits.
Note
5:
For
airplanes
equipped
with
Slick magnetos,
refer
to
Slick
Service
Bulletin
SB2-80C,
or latest
revision,
for time
limits.
For
airplanes
equipped
with TCM/Bendix
magnetos,
refer
to Teledyne
Continental
Motors
Service
Bulletin
No. 643,
or
latest revision,
for time
limits.
Note
6:
Refer
to Textron/Lycoming
Service
Instruction
S.I.
1009AJ,
or
latest
revision,
for time
limits.
Note
7: Refer
to Cessna
Service
Bulletin
SEB94-7
Revision
1
/Dukes
Inc. Service
Bulletin
NO.
0003,
or
latest revision.
Note
8: Refer
to the
applicable
McCauley
Service
Bulletins
and
Overhaul
Manual
for
replacement
and
overhaul
information.
Note
9: The
air filter
may be
cleaned,
refer
to Section
2 of
this service
manual
for
servicing
instructions.
For
airplanes
equipped
with
an
air filter
manufactured
by Donaldson,
refer
to Donaldson
Aircraft
Filters
Service
Instructions
P46-9075
for
detailed
servicing
instructions.
The address
for
Donaldson
Aircraft
Filters
is:
Customer
Service
1 15 E.
Steels Corners
RD
Stow,
OH.
44224
Do
not
overservice
the
air filter,
overservicing
increases
the
risk of
damage
to the
air filter
from
excessive
handling.
A damaged/worn
air filter
may
expose
the engine
to
unfiltered
air
and result
in
damage/excessive
wear
to the
engine.
Note 1
0: Replace
engine
driven
dry
vacuum
pump
not equipped
with a wear
indicator
every
500
hours
of
operation,
or replace
according
to the
vacuum
pump
manufacturer's
recommended
inspection
and
replacement
interval,
whichever
occurs
first.
Replace
standby
vacuum
pump
not equipped
with a
wear
indicator
every
500 hours
of
operation
or
10 years,
whichever
occurs
first, or
replace
according
to
the vacuum
pump
manufacturer's
recommended
inspection
and replacement
interval,
whichever
occurs first.
For
a vacuum
pump
equipped
with a
wear indicator,
replace
pump
according
to
the vacuum
pump
manufacturer's
recommended
inspection
and replacement
intervals.
Note
1 1: During
next
annual
inspection
and every
five
years there
after,
replace
the
Switch
(Landing
Light),
Landing
Light
Switch,
or Landing
and
Taxi
Light Switch
with
applicable
part
number.
Replace
Switch
(Landing
Light)
with
part number
TA201TW-B,
Landing
Light
Switch
with
part number
C906-5
or,
Landing
and Taxi
Light
Switch with
part
number
TTGC-TA201TW-B.
D841-8-13
Temporary
Revision
Number
6 Jan
15/2008
2
© Cessna
Aircraft Company
-27
