Operating instructions
CF Control 100
3.5 Connecting the measuring cell
Fig. 3-3
Sample water return
Inside of pool
Sample water pump
Sample water

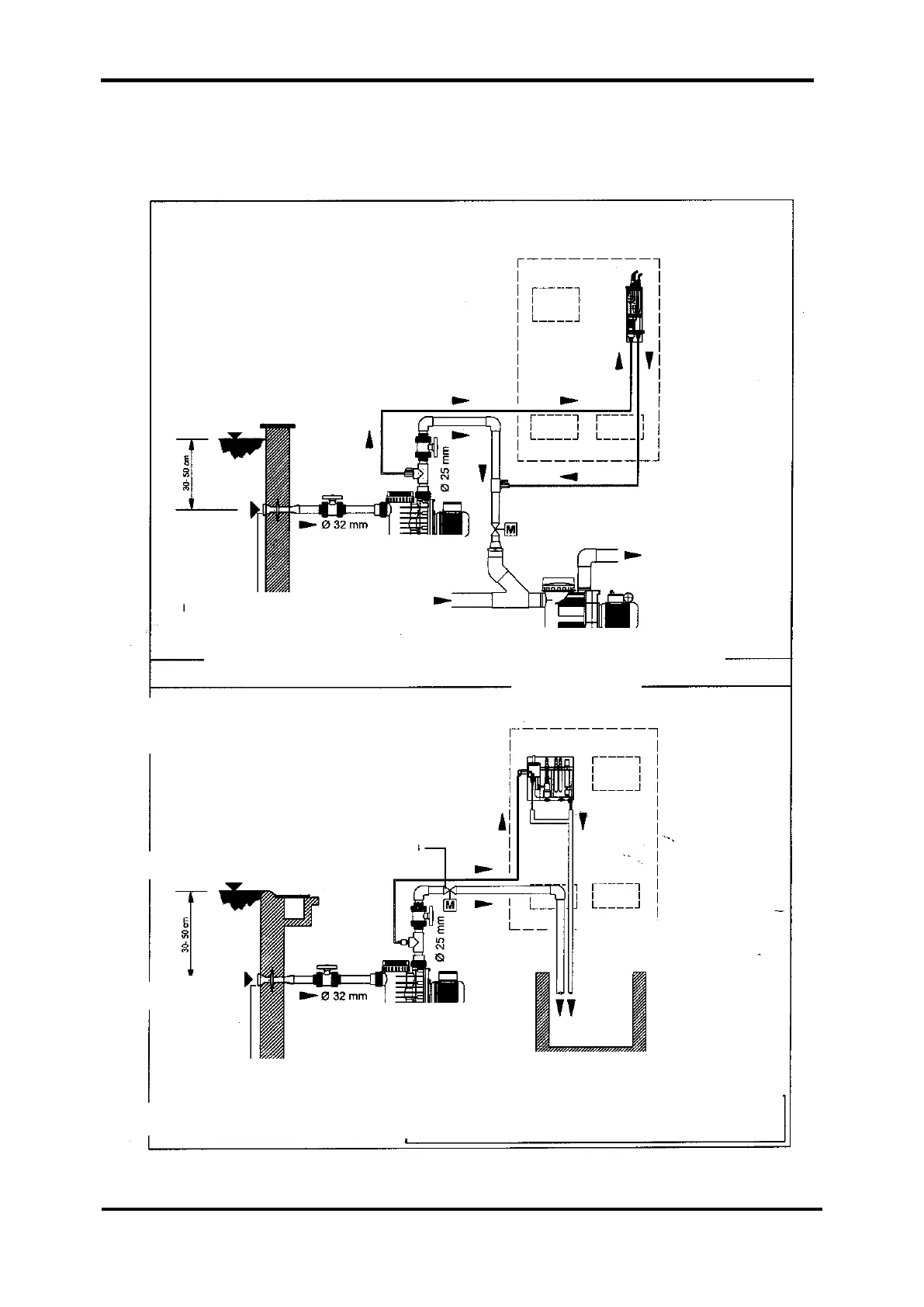

ATTENTION: Schematic diagram
Plant engineer responsible for actual construction.
Balance tanks
Measuring water
sampling from pool
WARNING: Sample water pump and
solenoid valve to be
interlocked with filter pump
Measuring, control
and dosing equipment
Measuring cell
Water surface
Sample water return
Solenoid valve closed w/o current
To filter tank
Filter circulation pump
From pool
Sample water pump
Inside of pool
Water sampling
Warning: Installation of a flow monitor after the filter is imperative!
WARNING: Sample water pump and
solenoid valve to be
interlocked with filter pump
Measuring, control
and dosing equipment
Measuring cell
Solenoid valve
closed w/o current
Sample water return
Water surface
Inside of pool
Sample water pump
Sample water
extraction
ATTENTION: Schematic diagram
Plant engineer responsible for actual construction.
Balance tanks
