Chicago Dryer Edge MAXX - Lower Right Belt Spread Assy

Edge Maxx 3038-010k
PL-25

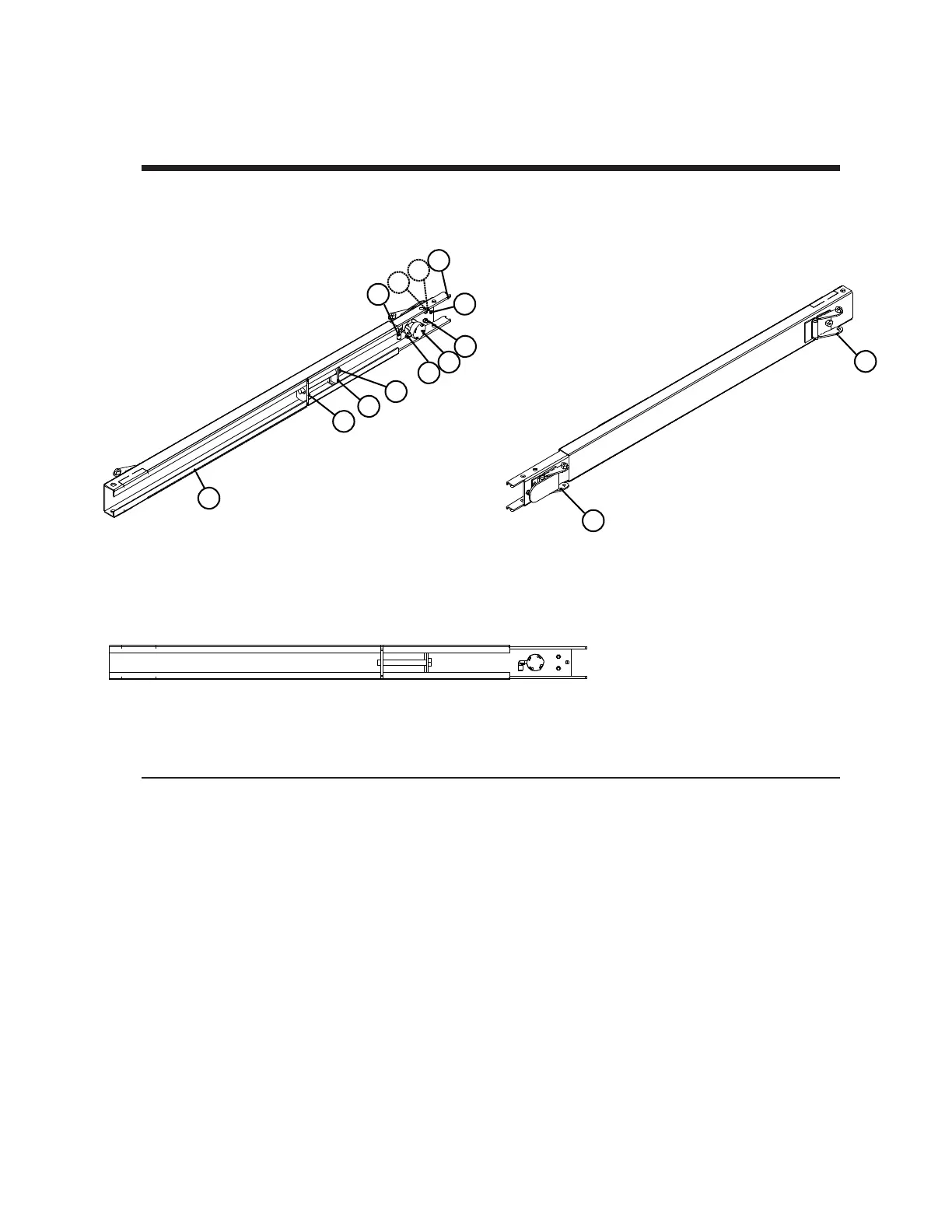

Lower Right Belt Spread Assy.
ID Part Number Qty Description
1 0205-255 1 ELBOW SWIVEL 1/8” NPT x 1/4” OD
2 B05-500 2 1/4-20 x 3/4” HX HD M/S
3 B10-275 1 1/4-20 KEPS NUT
4 2010-333 1 BELT SPREADER 19-1/16” x 5-5/8” x 7 GA
5 B05-520 1 1/4-20 x 3/4” SL FL HD M/S
6 B10-200 2 10-32 HEX NUT
7 0208-725 1 CYLINDER 1-1/16” BORE 5/8” STROKE, NONRO
8 0205-075 1 STRAIGHT CONNECTOR 1/8” NPT x 1/4” OD
9 B06-370 1 5/8-11 x 6” HX HD FULL THRD
10 0605-511 1 BELT SPREADER BRKT 12” x 2” x 3/8 GA
11 0605-563 1 SPREADER INSIDE BRKT 3-1/8” x1-5/8 x7 GA
12 0608-059 1 BELT SPREAD OUTSIDE 47” x 8” x 10 GA
13 0607-343 1 R.H. BELT ROLLER MOUNT ASSEMBLY
14 0607-322 1 RH BELT ROLLER MOUNT ASSY W/O STOPPER
14
13
4
3
1
5
2
9
6
7
8
10
1
1
12
