Edge MAXX Preventive Maintenance
4-19
4.5 Annual PM
(2000 hours)
WARNING
Do not repair or correct any
of these conditions without
reading and understanding
the Repair chapter.
Only qualified personnel
should troubleshoot and
repair this unit.
Make sure the power is
turned OFF at the main
disconnect switch.
Follow lockout/tagout
procedures approved for
your site. Follow local
regulations. Failure to do so
could result in serious injury.
Check and Grease Transfer
Conveyor Gears
Required Tools
Phillips screwdriver, grease gun,
Shell Darina
®
EP2 Grease or
equivalent, clean lint-free cloth
Perform only when the unit is OFF
with power disconnected.
Turn power OFF at the main disconnect
switch.
Remove the guard which protects access
to the transfer conveyor gears (Figure
4-25).
Clean off old lubricant from the drive
gears (Figure 4-26).
Check the gears for wear. If a gear is ex
-
cessively worn, replace it.
Grease the gears using the Shell Darina®
EP2 grease or equivalent.
Replace the protective panel removed in
Step 2.
1.
2.
3.
4.
5.
6.

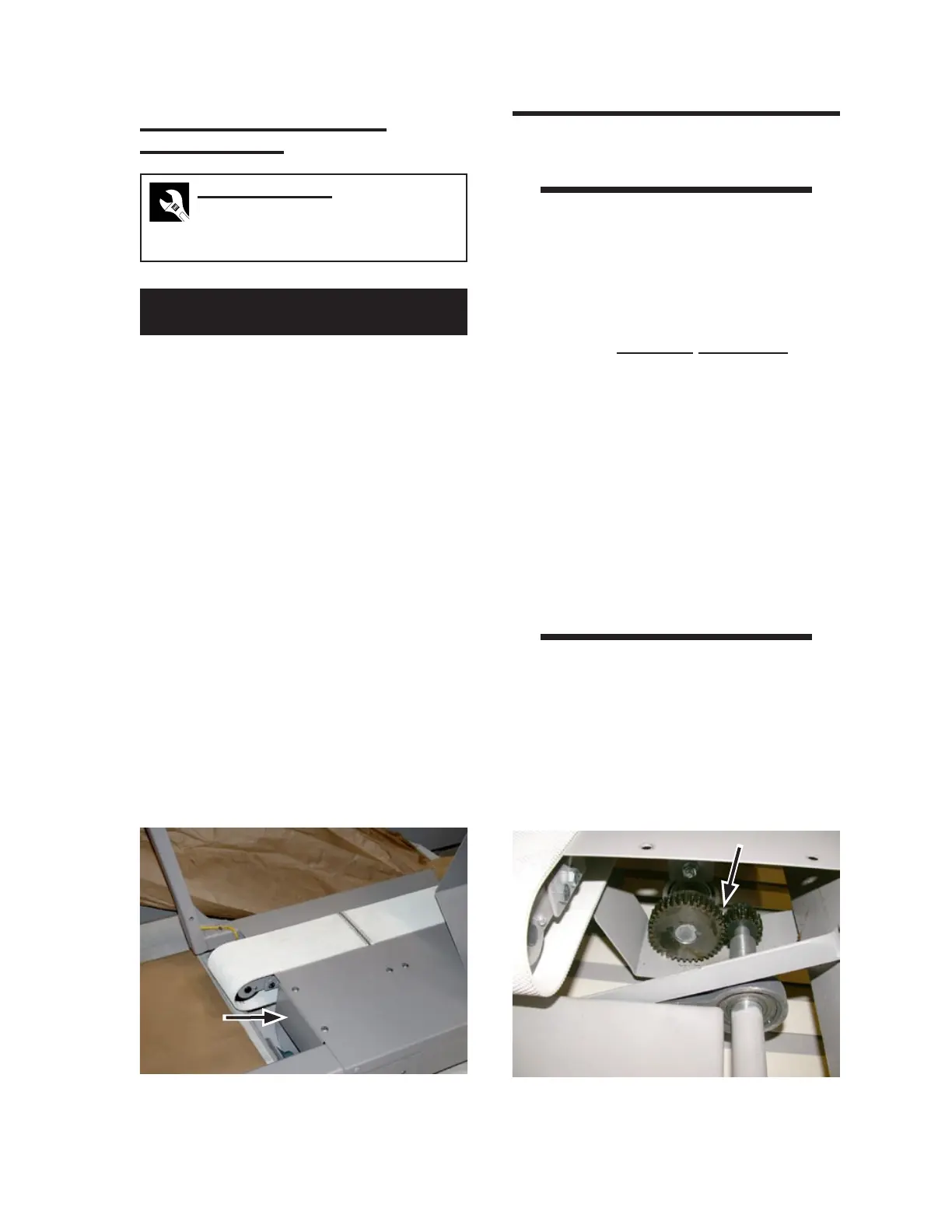

Figure 4-26: Transfer conveyor gears located under
the side conveyor table.
Figure 4-25: A guard protects access to the transfer
conveyor gears.
