Chicago Dryer Edge MAXX - Reject Conveyor Drive Details

Edge Maxx 3038-010k
PL-29

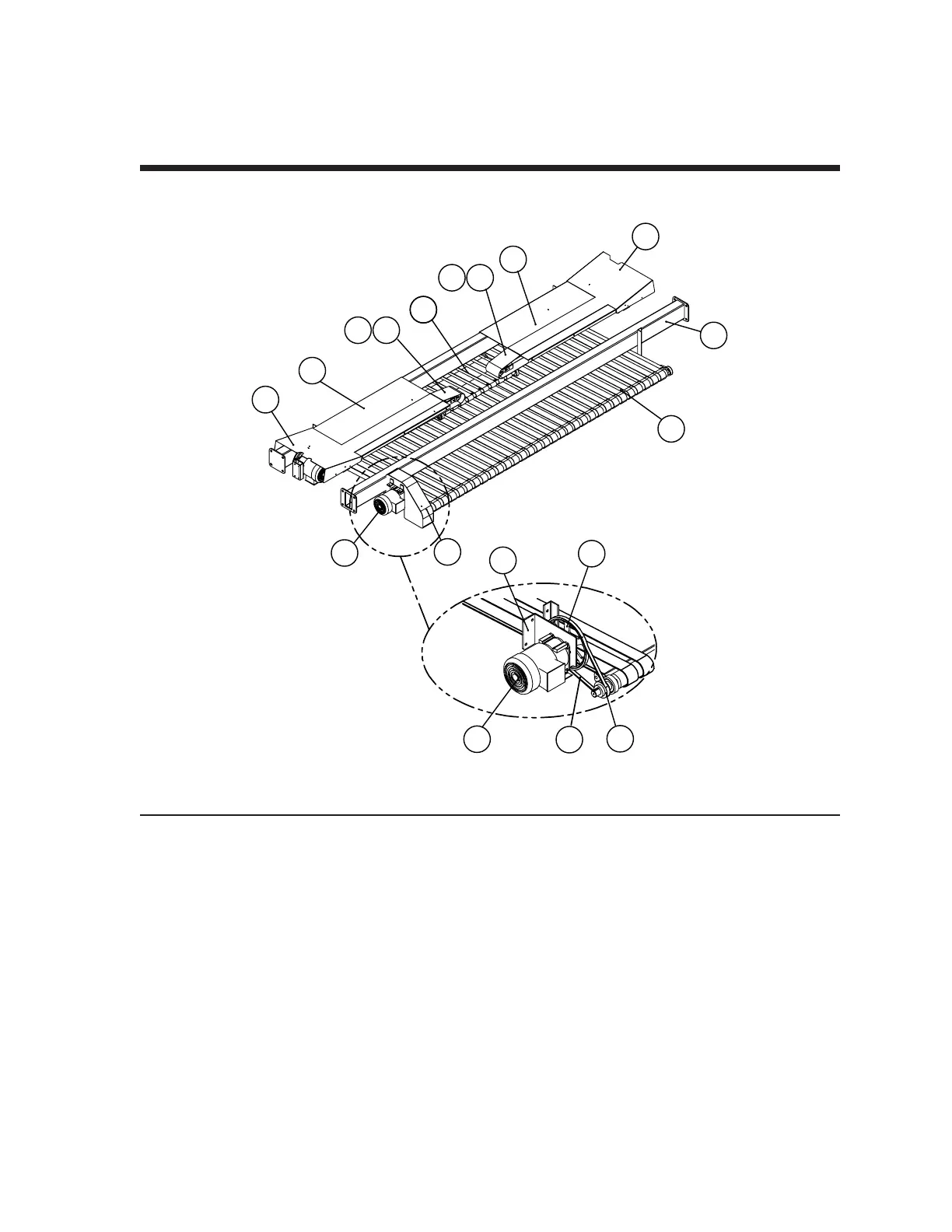

Reject Conveyor Drive Details
ID Part Number Qty Description
1 2814-022 1 R.H. SIDE MOTOR COVER
2 0608-688 2 SIDE CONVEYOR TABLE 21”x35-3/4”x16 GA
3 1003-181 2 POLYFLAKE RIBBON 5”x88” W/GUIDE & W/PIN
4* 1003-221 2 POLYFLAKE RIBBON 5”x104” W/GUIDE & W/PIN
5 3407-211 1 TRANSFER CONVEYOR TABLE ASSY
6 2814-023 1 L.H. SIDE MOTOR COVER
7 2007-161 1 BOTTOM REAR CONNECTING CHANNEL ASSY
8 3407-203 1 REJECT CONVEYOR ASSEMBLY
9 2814-025 1 BOTTOM CONVEYOR MOTOR COVER ASSY
10 2809-325 1 MOTOR 1/6 HP 90 RPM
11 1213-080 1 MOTOR BASE 7” x 10-1/4” x 7 GA
12 1205-895 1 V BELT SHEAVE 6-1/2” OD 5/8” BORE
13 1205-785 1 V BELT SHEAVE 3” OD 1” BORE
14 1203-032 1 POWER TWIST BELT 4 L 47 LINKS LONG
* = 136” Machine
* = 136” Machine Only
*
*
5
3
2
4
6
14
9
1
13
12
10
8
7
10
11
3
4
2
