Chicago Dryer Edge MAXX - Side Conveyor Table Assy

3038-010k Edge Maxx
PL-30

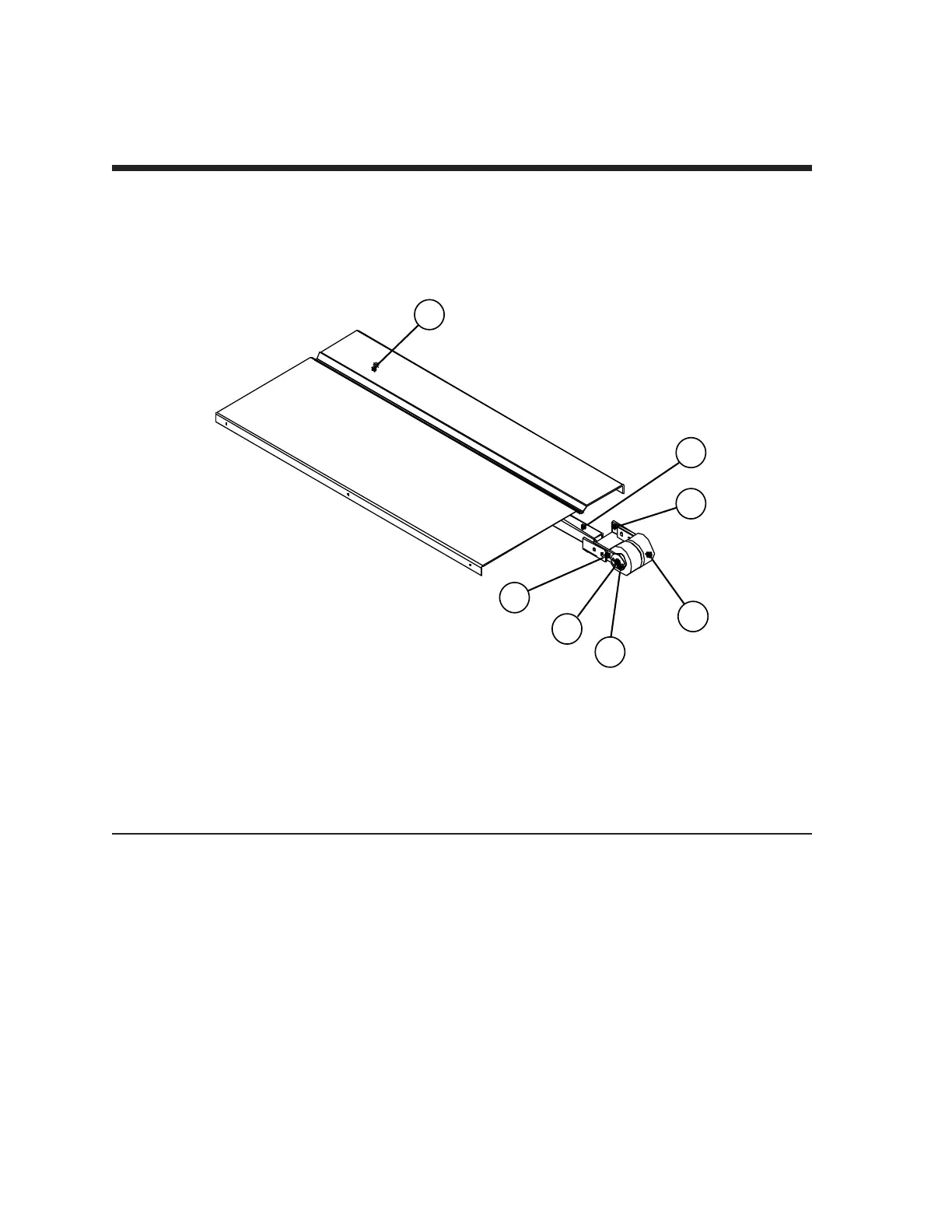

Side Conveyor Table Assy.
ID Part Number Qty Description
1 0608-688 1 SIDE CONVEYOR TABLE 21”x35-3/4”x16 GA
2 S13-175 1 TUBING 1-1/4” SQ 11 GA 145-1/2” L
3 0608-691 1 IDLER ROLL BRACKET 3” x 6-1/4” x 10 GA
4 1205-231 1 IDLER ROLL 3” x 3” GROOVED W/BEARING
5 4215-003 2 LOCKING WASHER 1-3/4”ODx5/8”ID x14GA
6 1210-066 1 SHAFT 5/8” OD x 3-7/8” L
7 0605-547 2 ADD-ON BRACKET INPUT CONVEYOR
1
2
3
4
5
6
7
