Preventive Maintenance Edge MAXX
4-12
Check Setscrews
Required Tools
Allen wrench
Perform only when the unit is OFF
with power disconnected.

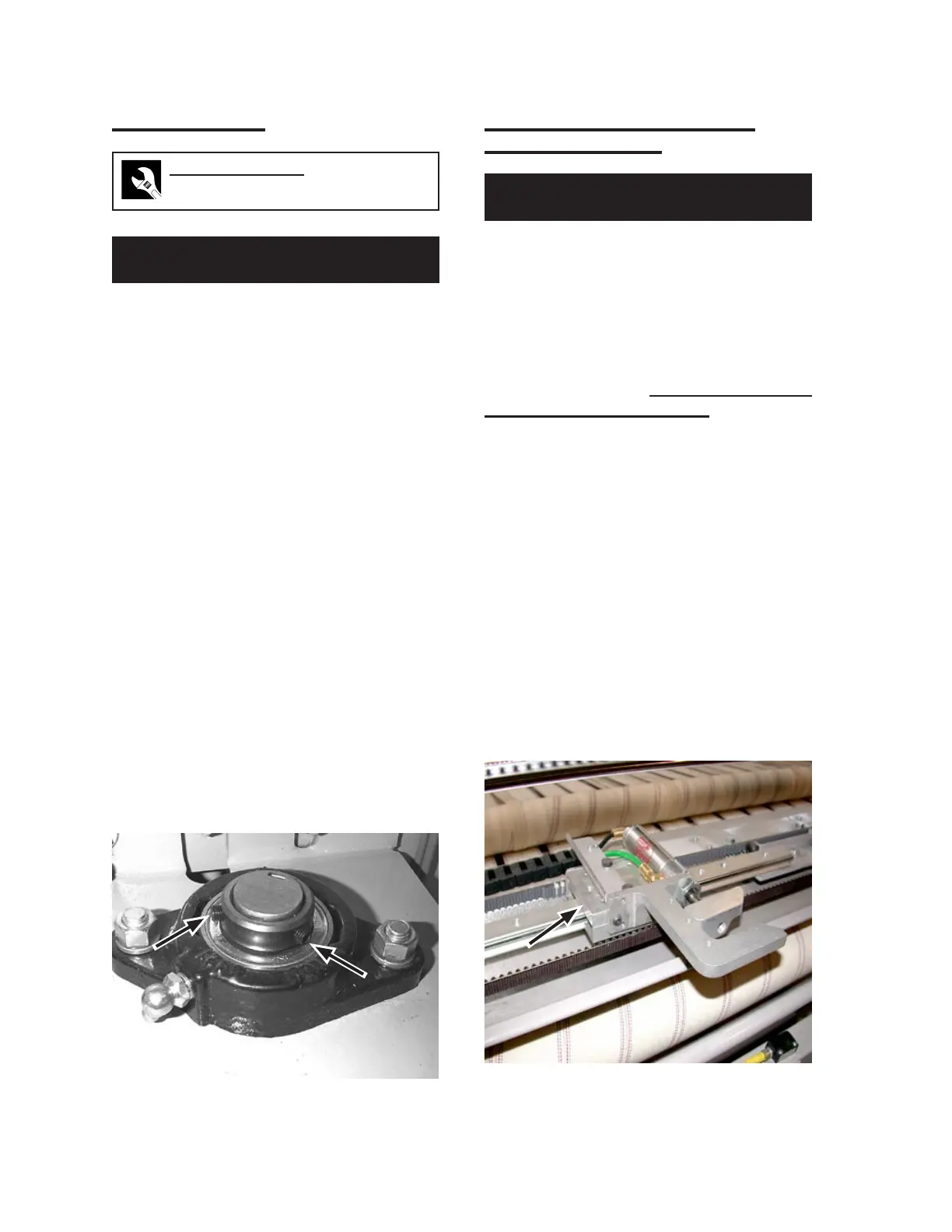

Setscrews (Figure 4-13) hold sprockets,
bearings, and other rotating parts securely in
place. Check and make sure that all setscrews
are tight.
Figure 4-14: Spreader clamp linear bearing
assembly check.
Check Spreader Clamp Linear
Bearing Assemblies
Perform only when the unit is OFF
with power disconnected.
Check the grooved bearings in the assembly
by taking the spreader clamp (Figure 4-14) in
hand and shaking it from side to side. If there is
free-play in the carriage, the bearings need to be
replaced.
For more information, refer to the REPAIR
chapter, Spread Section, Upper Spreader Clamp
Grooved Bearing Replacement procedure.
Figure 4-13: Make sure the setscrews are
sufficiently tightened.
