3.2 Operating Controls
All operating controls are externally mounted
on the machine and most are clearly marked with
nameplates.
References to these functions are capitalized
in this manual for easy identification. Detailed
descriptions are given in the following
paragraphs.
Most of these controls are located at the front of
the machine. There are duplicate sets of operator
controls as well as non-duplicated controls.
Front Controls
Controls at the front of the unit include (Figure
3-7):
START/STOP buttons (A)
SAFETY STOP buttons (B)
STAIN REJECT (option) button (C)
TEAR REJECT (option) button (D)
CHI Panel (E)
INTERCONNECTED STOP CIRCUIT
(option) indicator lights (F)
Pacing Lights (option) (G)
START/STOP button (A):
Initiate and pause general machine operation.
Each station has a set. The green
Start button
starts all moving parts while the square red Stop
button pauses operation of the unit.
During normal operation, the integrated lamp
glows steadily when the unit is running. The lamp
flashes when either a red station Stop button or a
red safety STOP button is pressed.
•
•
•
•
•
•
•

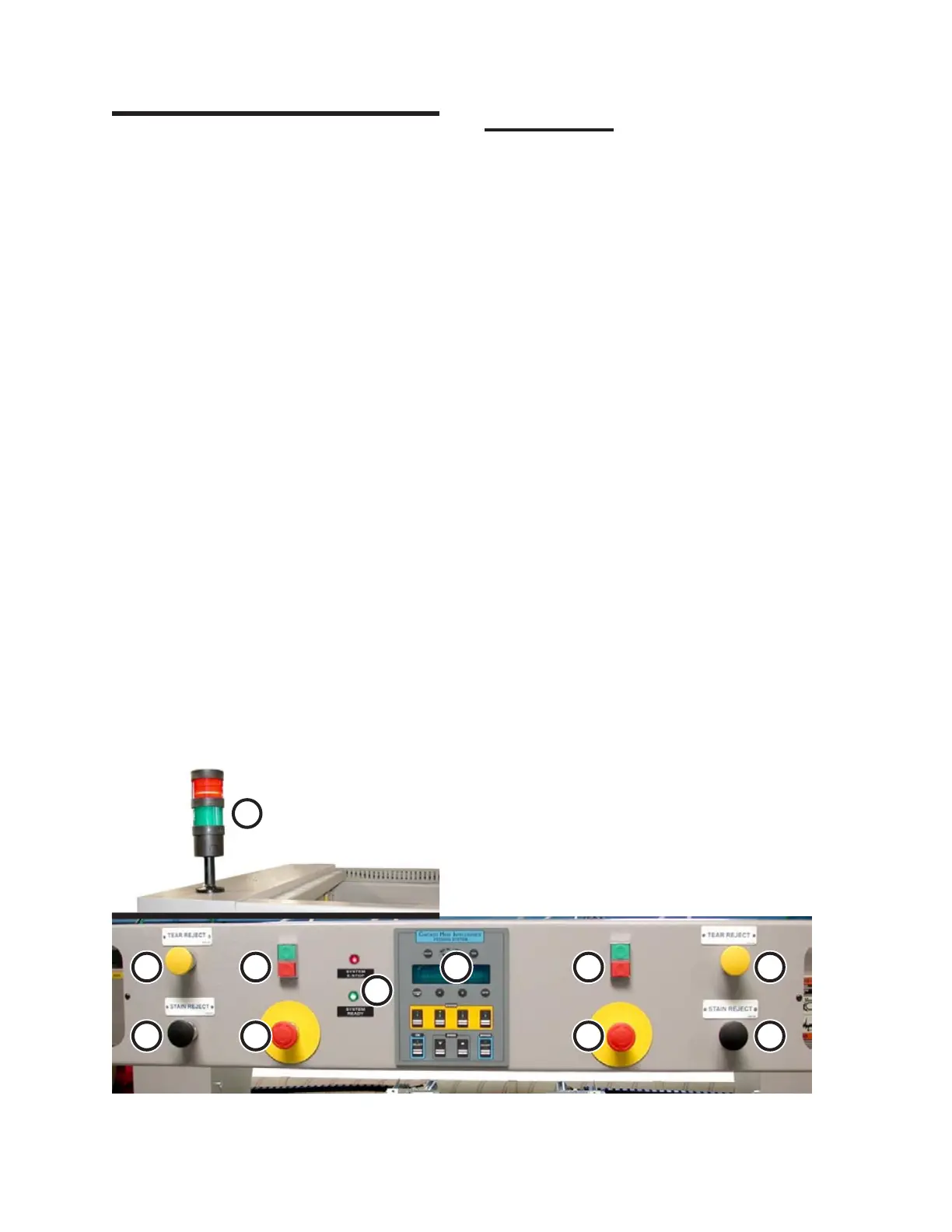

Figure 3-7: Controls located at the front of the feeder unit.
A
A
B
B
C
C
D
D
E
F
G
