[DB600] General Instruction Manual MODE c
- 106 -

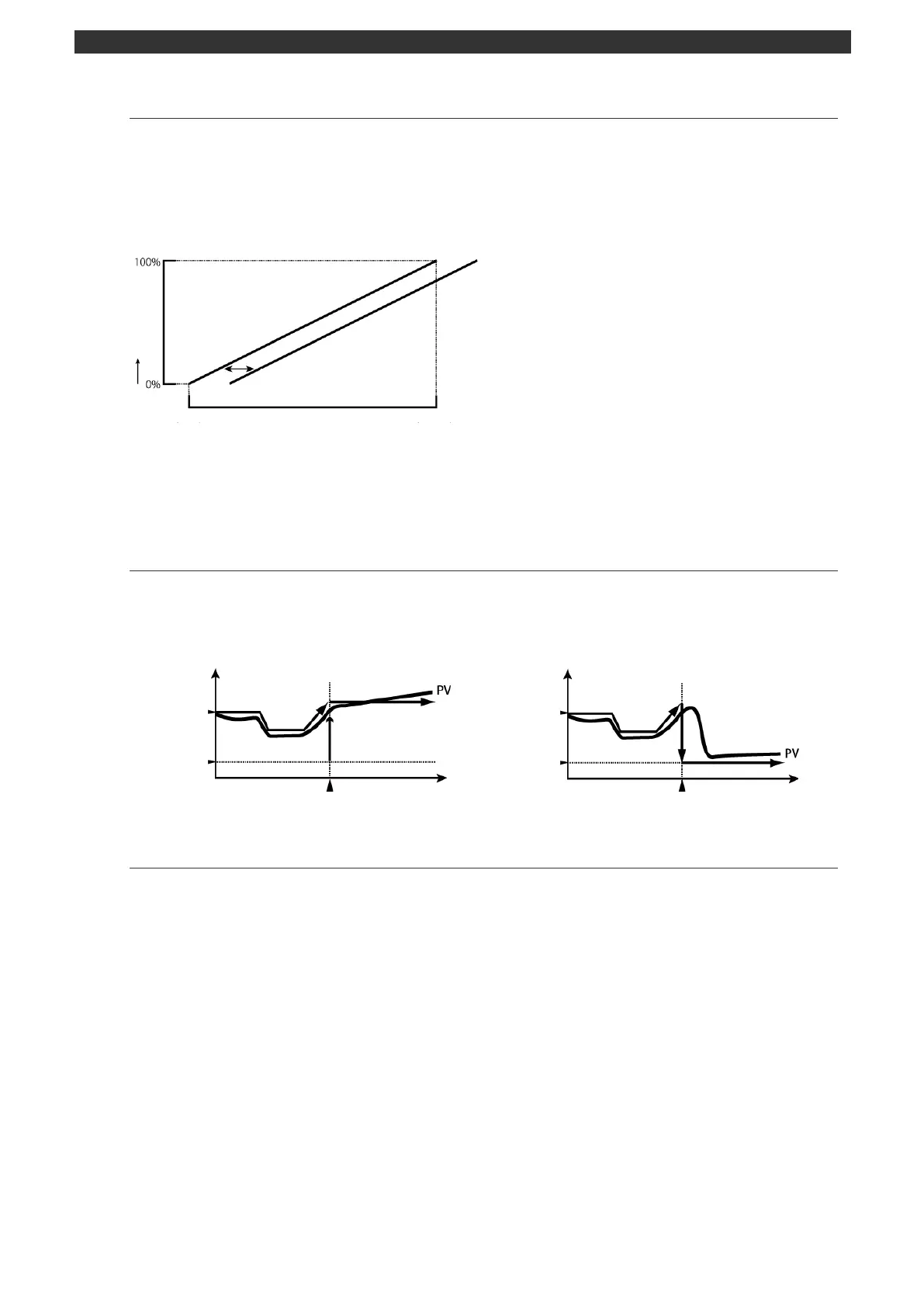

5-12-4 Correcting remote SV input
Set the remote SV shift and remote filter.
 Remote SV shift
This function is used to correct the SV of remote signal input. The SV is shifted by the setting value
according to the remote signal input (parallel shift).
This can be used as zero adjustment on the software.
 Remote filter
This is a software filter function that provides the same effect as CR circuit filter by performing a first-order
lag operation on the remote signal input SV. See the section 0 "Digital filter".
5-12-5 Tracking
The tracking function makes the local SV track the remote SV when the operation mode is switched from
remote to local. This is effective in preventing rapid variation in measured value (PV).
Tracking ON
Tracking OFF
5-12-6 Remote scale
This function is used to set the scale for remote signal input (analog signal).
Set the remote signal input range so that the remote input ranges from 0% (remote scale zero) to 100%
(remote scale span).
Remote signal
input
Remote shift setting
Remote scale range
(Span)
(Zero)
Remote
operation SV
Local
operation SV
Tracking
Remote
operation SV
Local
operation SV
Switch from remote to local operation
Switch from remote to local operation
Time
Time
