Chino DB650 - 2-2 Mounting

[DB600] General Instruction Manual
- 14 -
 DB670
Unit: mm

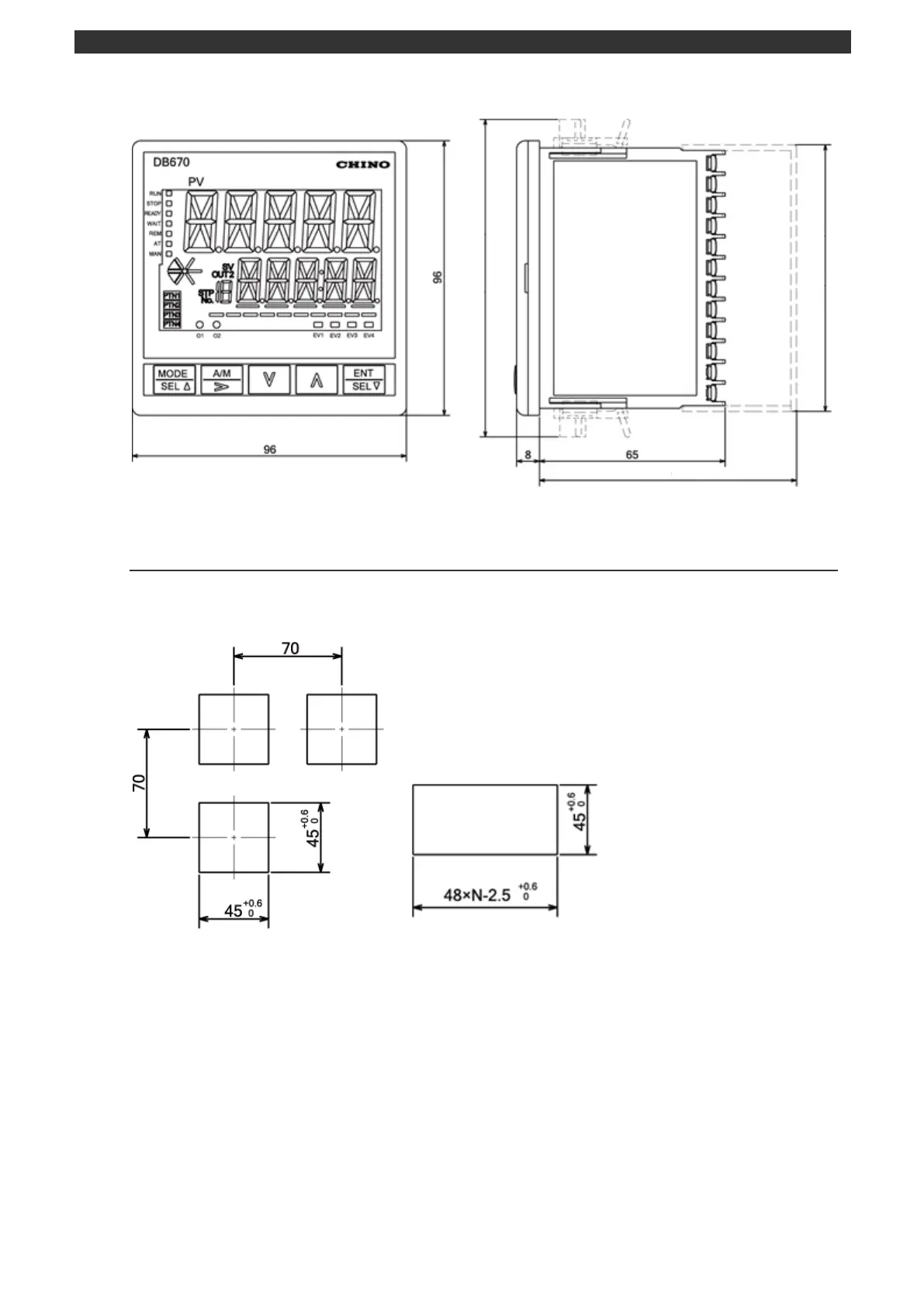

2-1-2 Panel cutout and mounting dimensions
 DB630
Panel cutout Closed installation
N: Number of the Instrument
112 (Mounting bracket dimensions)
90（When terminal cover attached）
93.2 (Terminal cover)
( )
