Chino DB650 - Example of Wiring

[DB600] General Instruction Manual
- 30 -

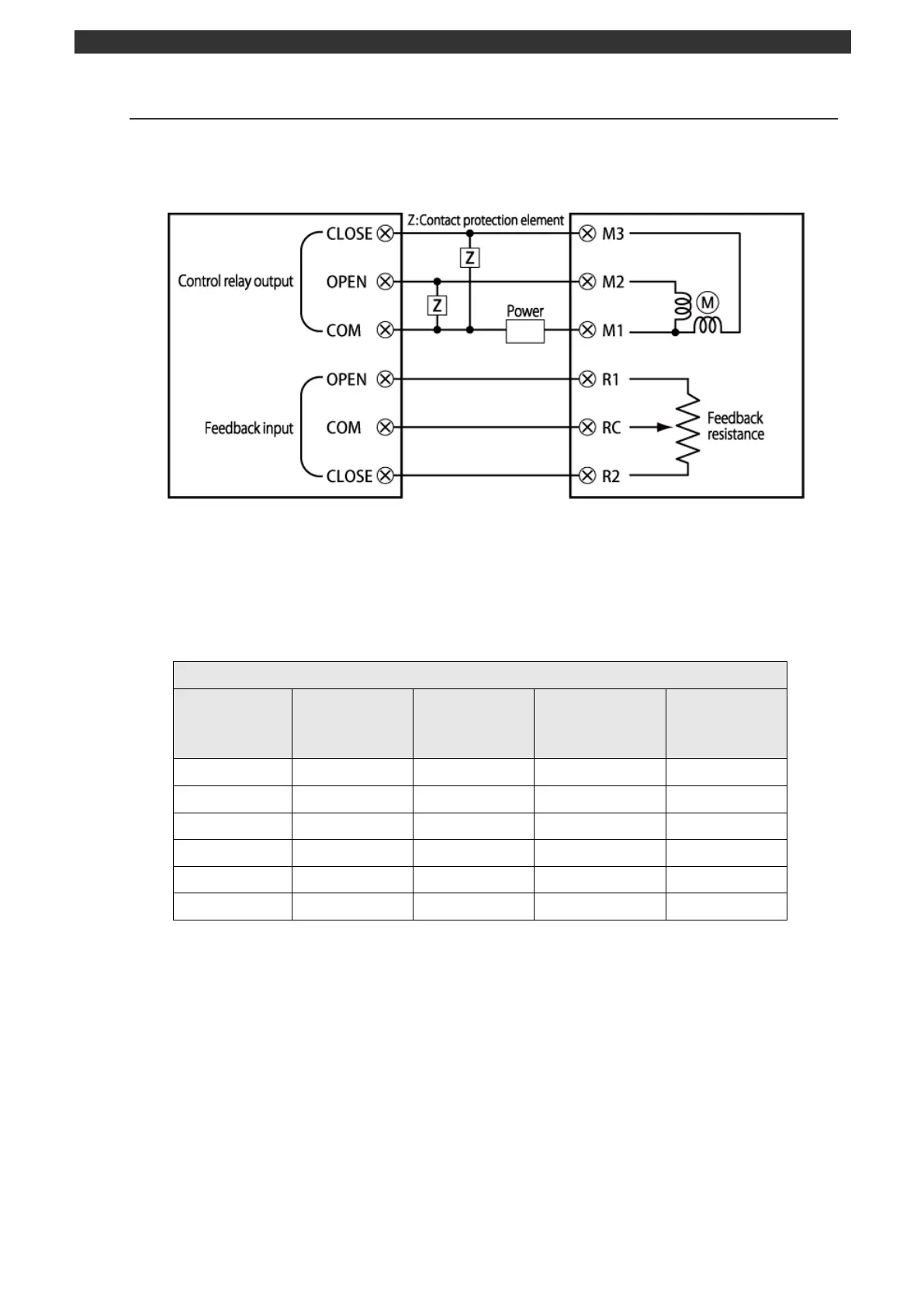

2-3-5 Example of wiring
Wiring of ON-OFF servo output type (DB650/DB670) 1.
Connect ON-OFF servo output type to control motor. See terminal diagram and perform wiring.
[This instrument] [Control motor]
In example of wiring, this instrument and CHINO’s control motor is directly connected, however, in
the actual wiring, make sure to connect through buffer relay. Also, for control output (relay output)
terminal connect contact protection element.
[List of symbolic name of motors from various companies]
List of symbolic name of motors from various companies
Chino Products
Toho Products
Shin-Nippon
Keisetsu
Product
Japan Servo
Products
Azbil Products
M3
S
S
T2
1
M2
O
O
T1
2
M1
C
C
T3
3
R1
BM
B
B
Y
RC
RM
R
R
T
R2
WM
W
W
G
