[DB600] General Instruction Manual MODE b
- 102 -
5-11 MODEb [Transmission output parameter]
5-11-1
Setting overview
MODEb provides the settings related to the transmission signal output. The display is available only for
the specification with transmission signal output.
The measured value, setting value, output value, output 2 value (only for the specification with 2 outputs),
and FB measured value are converted into 4 to 20mA, 0 to 1V, or 0 to 10V signal to output. See the
section 6-9 for details.
5-11-2

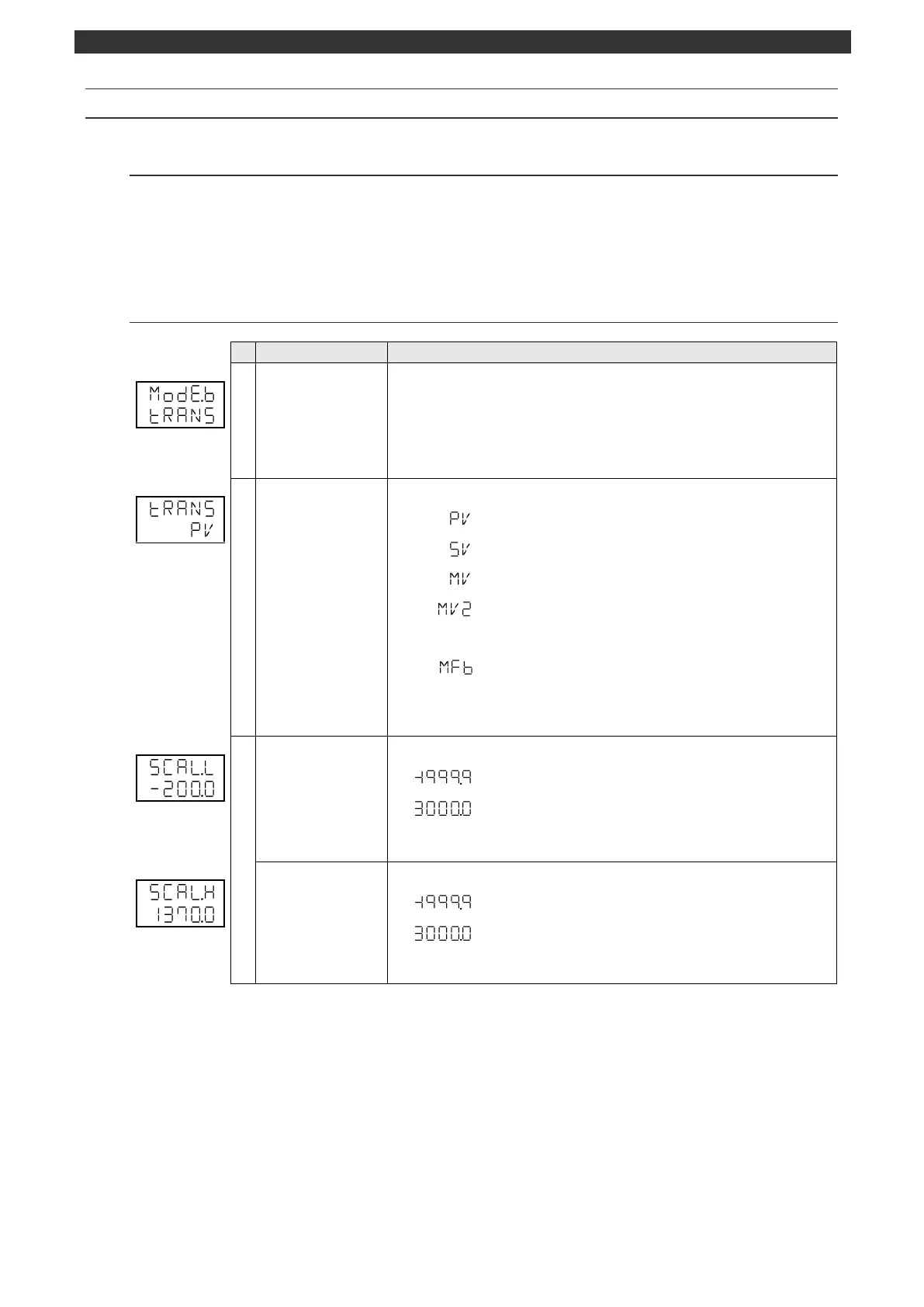

Setting screen and function
MODEb initial screen
(Transmission output
parameter)
MODEb (transmission output parameter) initial screen
Pressing the [
] key makes a switch to the MODEa, MODE7 or MODE6 screen.
Pressing the [
] key makes a switch to the MODEc, MODEd or MODEt screen.
No parameter is set by the [ENT] key.
[Switch to operation initial screen]
Press and hold the [MODE] key to display the screen set on the MODEt operation
initial screen.
Sets the transmission type.
PV transmission signal output: Transmits the measured value
(PV) on the operation screen.
SV transmission signal output: Transmits the setting value (SV)
on the operation screen.
Output 1 transmission signal output: Transmits the output 1
value on the operation screen.
Output 2 transmission signal output: Transmits the output 2
value on the operation screen.
* The display appears when the adjustment output 2 type is set
to other than "None".
Digital FB transmission: Transmits the measured value (FB) on
the operation screen digitally.
* The display is available for the ON-OFF servo output type.
Use the [
], [
] and [ENT] keys to set the transmission type.
Sets the transmission scale zero.
Use the [
], [
] and [ENT] keys to set the transmission scale zero.
Use the [>] key to move the cursor to the right digit.
Sets the transmission scale span.
Use the [
], [
] and [ENT] keys to set the transmission scale span.
Use the [>] key to move the cursor to the right digit.
