6-12 Communication interface
The instrument provides the following standard/optional communication functions.
6-12-1 Engineering port
Caution

mark at the engineering port
This is the engineering port of the instrument.
Only use the exclusive USB engineering cable.
This is used to connect the instrument with a PC. All models of the instrument have the engineering port
as standard.
The engineering port is located at the bottom of the case for DB630, and at the top of the case for
DB650/670. Insert the dedicated USB engineering cable "RZ-EC3" (sold separately) to establish
communication with a PC.
CHINO prepares the software for parameter setting. It will help you set various parameters easily using
the USB engineering cable and PC.
The communication specification of the engineering port is shown below.
 Communication protocol: MODBUS-RTU
 Communication transmission rate: 9600bps (fixed)
 Communication character: 8-bit length, NON parity, stop bit 1

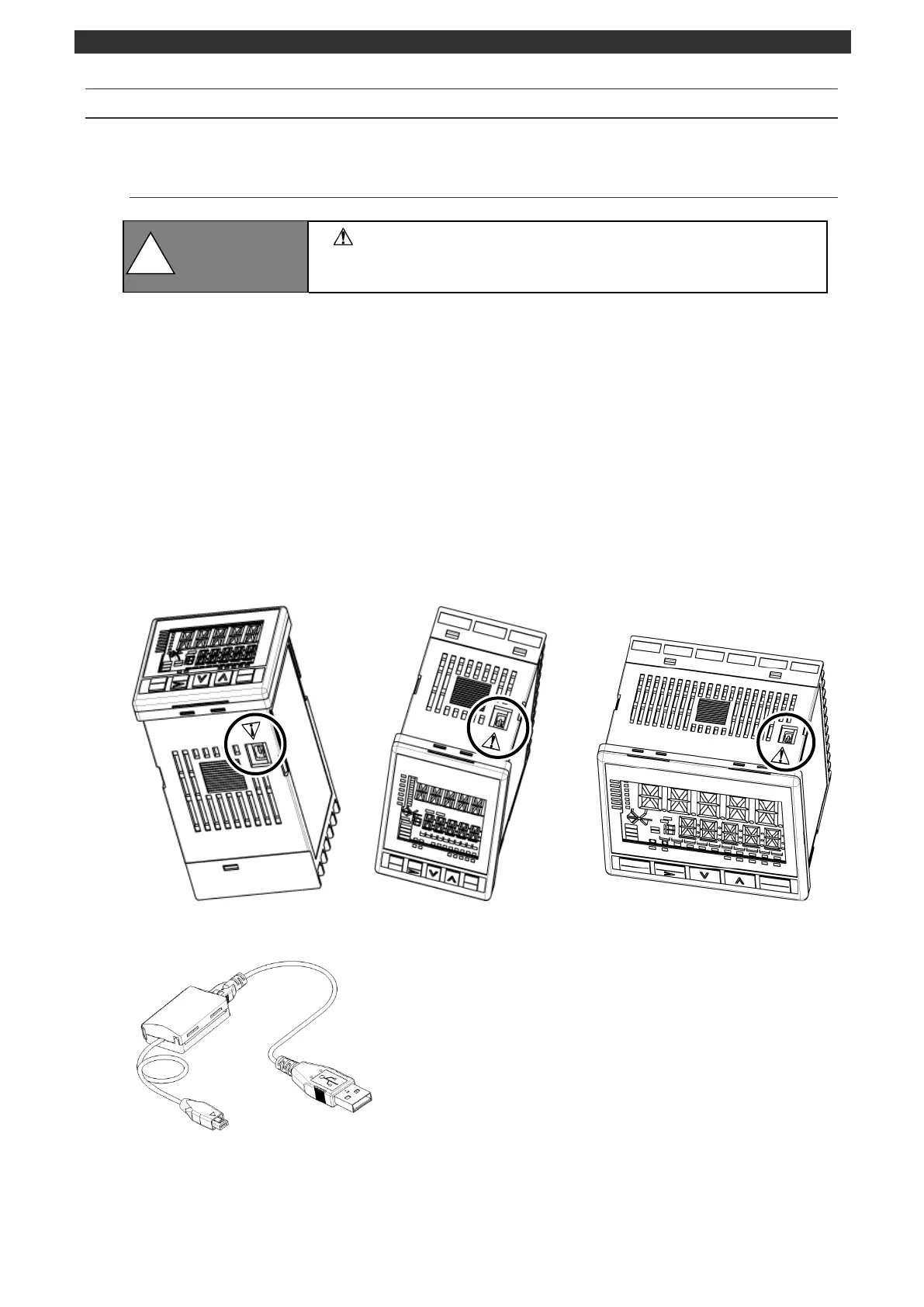

[DB630] [DB650] [DB670]
[RZ―EC3]
！
