[DB600] General Instruction Manual MODE d
- 109 -
5-14 MODEt [System parameter]
5-14-1
Setting overview
MODEt provides the system related settings.
5-14-2

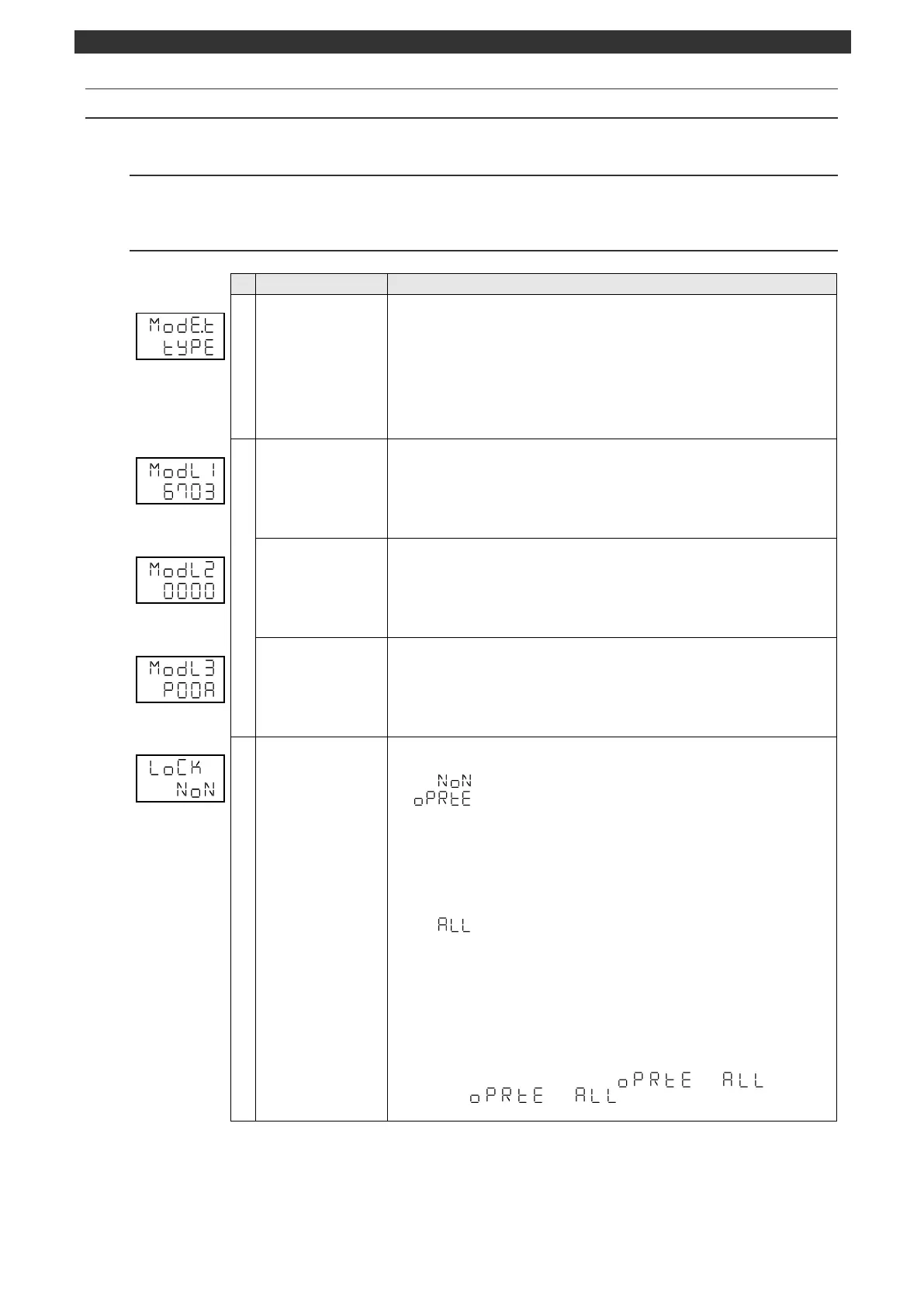

Setting screen and function
MODEt initial screen
(System parameter)
MODEt (system parameter) initial screen
Pressing the [
] key makes a switch to the MODEd, MODEc, MODEb, MODE7 or
MODE6 screen.
Pressing the [
] key makes a switch to the MODE0 screen.
No parameter is set by the [ENT] key.
[Switch to operation initial screen]
Press and hold the [MODE] key to display the screen set on the MODEt operation
initial screen.
Check the model No. 1.
No parameter is set/changed by the [
], [
] and [ENT] keys.
Model No. 2
(7)(8)(9)(10)
Check the model No. 2.
No parameter is set/changed by the [
], [
] and [ENT] keys.
Model No. 3
(11)(12)(13)(14)
Check the model No. 3.
No parameter is set/changed by the [
], [
] and [ENT] keys.
Changing the following operation parameters becomes
unavailable.
"Execution No. selection for constant value operation" on the
operation screen
"Pattern No. selection" on the operation screen
"Program drive" on the operation screen
The [ENT] key used in changing the parameters will be locked
(disabled).
Changing all parameters (operation parameters included) by
key operation becomes unavailable.
The [ENT] key is used in changing all the parameters on the
operation screen and MODE0 to MODEt screen will be locked
(disabled). Switching between AUTO and MANUAL by pressing
and holding the [>] key on the operation screen will also be
blocked (disabled).
However, MODEt "Key lock" will not be locked.
Use the [
], [
] and [ENT] keys to set the key lock.
The key lock setting can be changed in " " or " ".
Even when " " or " " is set, external signal input and
communication can be set/changed at any time.
