6-4 Status event

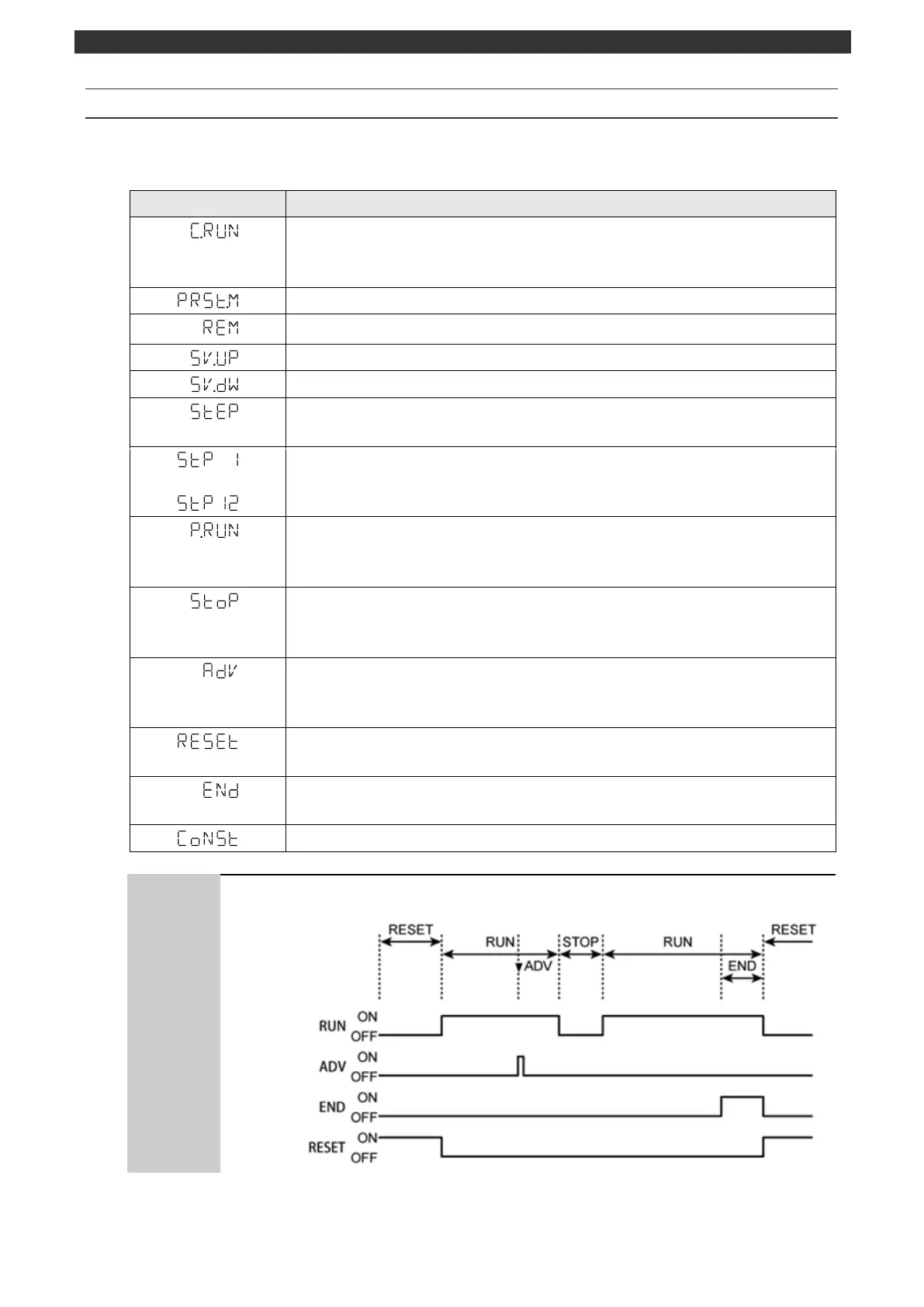

The status event comes in a variety of types as shown below.
For the event output specification, various status event types can be outputted. "0"
Function Name
Description
"
□
"

Status event at constant value operation RUN.

Event ON at operation status is RUN and event OFF at operation status is
STOP.
" "

Event ON at preset manual status.
"
□□
"

Event ON at remote input status.
"
□
"

Event ON at executing SV is in rise status.
"
□
"

Event ON at executing SV is in fall status.
"
□
"

Event signal becomes ON for about 0.5 seconds on step switching status
at program operation.
"
□
"
to
" "

Event ON at program operation step 1 to step 12 status
"
□
"

Status event at program operation RUN.

Event ON at operation status is RUN and event OFF at operation status is
STOP.
"
□
"

Status event at program operation STOP.

Event ON at operation status is STOP and event OFF at operation status is
RUN.
"
□□
"

Status event at program operation ADVANCE.

Event signal becomes ON for about 0.5 seconds at program operation
ADVANCE.
" "

Status event at program operation RESET.

Event ON at operation status RESET.
"
□□
"

Status event at program operation END

Event ON at operation status END (program end)
" "

Event ON on SV keep status at program operation.
Reference

Relations between the program operation status and event ON/OFF as follows.
Program operation status
Status event
Approx. 0.5 sec
