Chino DB650 User Manual

[DB600] General Instruction Manual
- 38 -

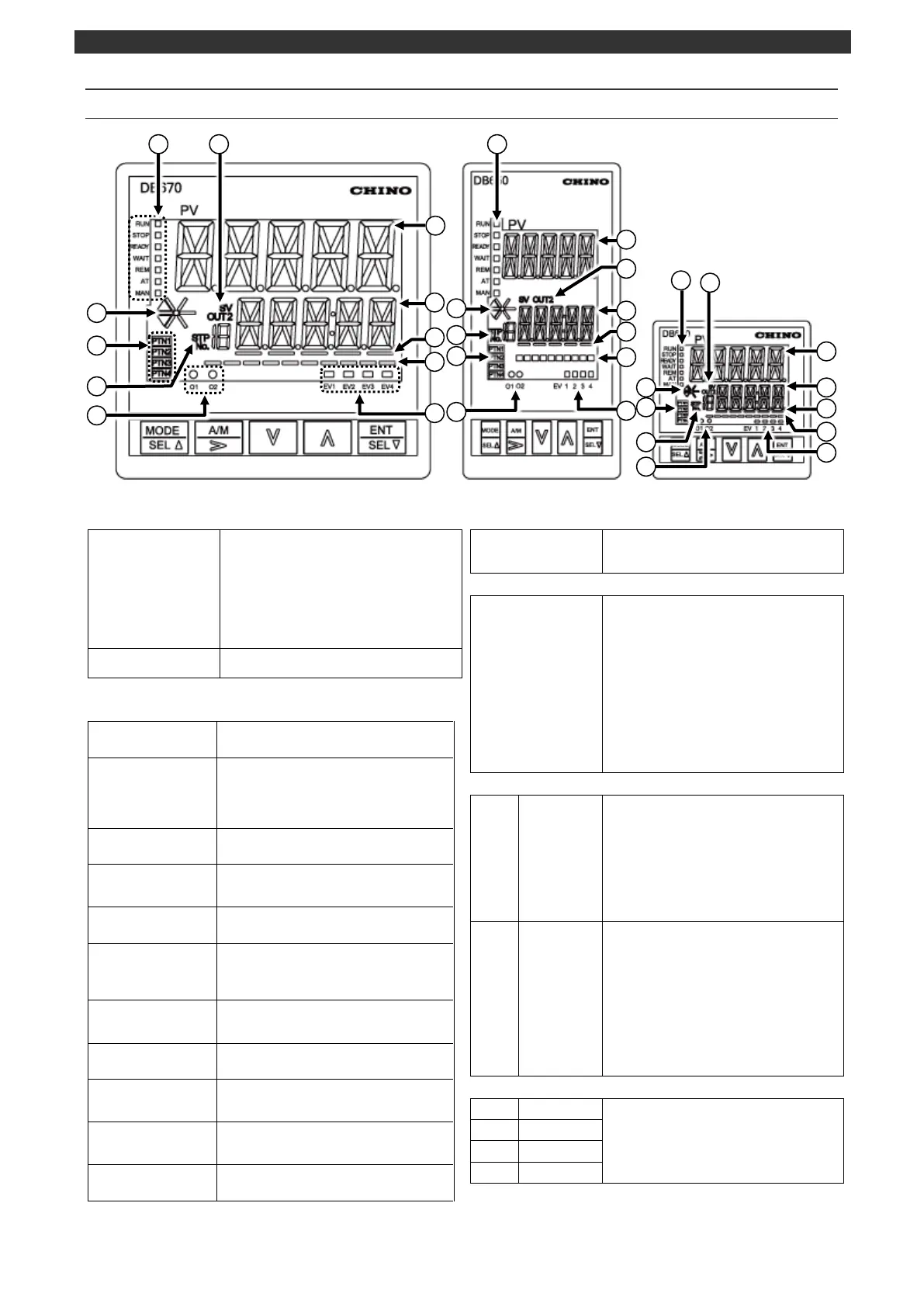

3-2 Name and function of display
① Measured value (PV)/ Parameter setting title
PV display screen
Displays measured value (PV) on
following operation screen
・ PV/ SV display
・ PV/ time display (with program function
specifications)
・ PV/ OUT1 display
・ PV/ OUT2 display (with 2 output
specifications)
Parameter setting
screen
Displays parameter setting screen title.
② Setting value (SV)/ operating condition/ parameter setting
value
SV
Displays setting value (SV) on PV/SV
display screen.
TIME
(with program
function
specifications)
Display step time on PV/ time display
screen. While displaying the step time, [:
(colon)] between tens place and
hundreds place blinks/ lights.
OUT1
Displays output 1 value [%] on PV/ OUT1
display screen.
OUT2
(with 2 output
specifications)
Displays output 2 value [%] on PV/ OUT2
display screen.
Event
Displays event status on event status
screen.
CT
(with heater
disconnection detection
specifications)
Displays CT value [A] on CT measured
value display screen.
FB
(with ON-OFF servo
output type)
Displays feedback value [%] on FB
(feedback) measured value display
screen.
AT
Displays auto tuning condition on auto
tuning screen.
Pattern repeat
(with program function
specifications)
Displays remaining number of pattern
repeat on pattern repeat screen.
Program drive status
(with program function
specifications)
Displays current program operating
condition on program drive status screen.
Parameter setting
Displays currently operating parameter
on parameter setting screen.
③ Cursor for setting parameter
Cursor
Displays cursor by pressing [>] key when
the parameter is switchable digits during
parameter setting screen is displayed.
④ Analog bar
Analog bar
Displays following measured value and/or
analog bar of parameter by setting of bar
display.
・ Output1 value
・ Output2 value (with 2 output
specifications)
・ CT measured value (with heater
disconnection detection specifications)
・ Feedback measured value (with
ON-OFF servo output type)
・ Step time (with program function
specifications)
⑤ Output
O1
Output
display 1
Displays following output status by types
of output 1.
・ ON-OFF pulse/ SSR drive pulse output
type
Lights: pulse ON, Off: pulse OFF
・ ON-OFF servo output type
Lights: CLOSE side output
Off: OPEN side output/ neutral
・ Current/ voltage output OFF
O2
Output
display 2
Displays following output status by types
of output 2.
・ ON-OFF pulse/ SSR drive pulse output
type
Lights: pulse ON, Off: pulse OFF
・ Current/ voltage output OFF
Displays following output status by types
of output 1.
・ ON-OFF servo output type
Lights: OPEN side output
Off: CLOSE side output/ neutral
⑥ Event
EV1
Event 1
Displays event status of event 1 to 4.
Lights: event ON (event activated)
Off: event OFF
EV2
Event 2
EV3
Event 3
EV4
Event 4
10
6
4
2
1
5
9
8
4
2
8
9
10
5
3
1
11
6
7
3
11
2
1
9
5
7
11
10
6
4
3
7
8
