[DB600] General Instruction Manual
- 21 -

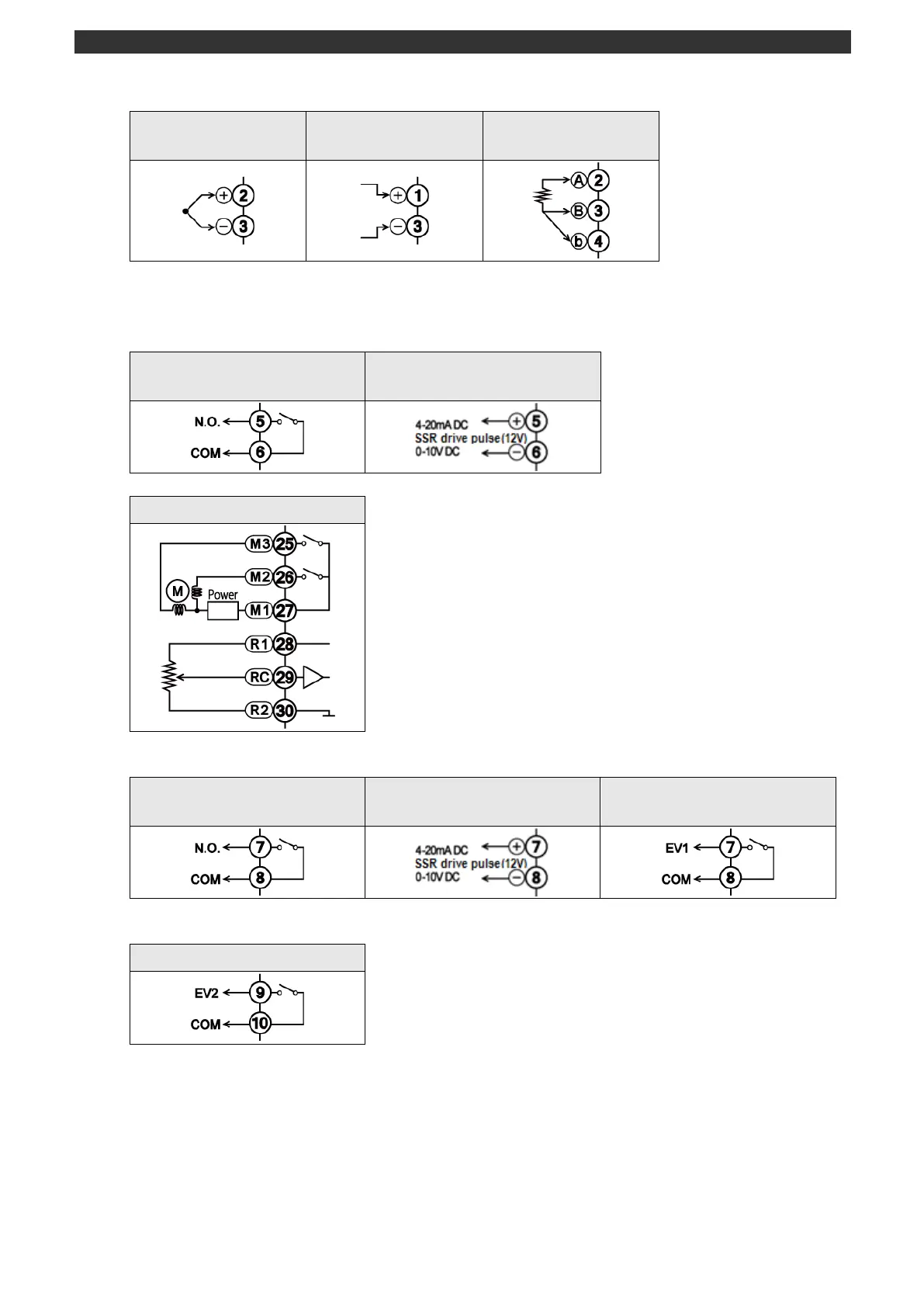

Measuring input terminal
Thermocouple/voltage
mV
Voltage V
Resistance
thermometer
*Do not wire except for specified terminals.
*For inputting current, connect shunt resistor (250Ω/selling separately) between ＋ and －.
Control output 1 terminal
ON-OFF pulse output
Current/SSR drive pulse/voltage
output
ON-OFF servo output
Control output 2/event output terminal (mechanical relay output)
ON-OFF pulse output
Current/SSR drive pulse/voltage
output
Event 1 output
Event output terminal (mechanical relay output)
Event 2 output
