Chino DB650 - 5-3 MODE1: Constant Value Operation Parameter

[DB600] General Instruction Manual MODE 0
- 68 -
□□□

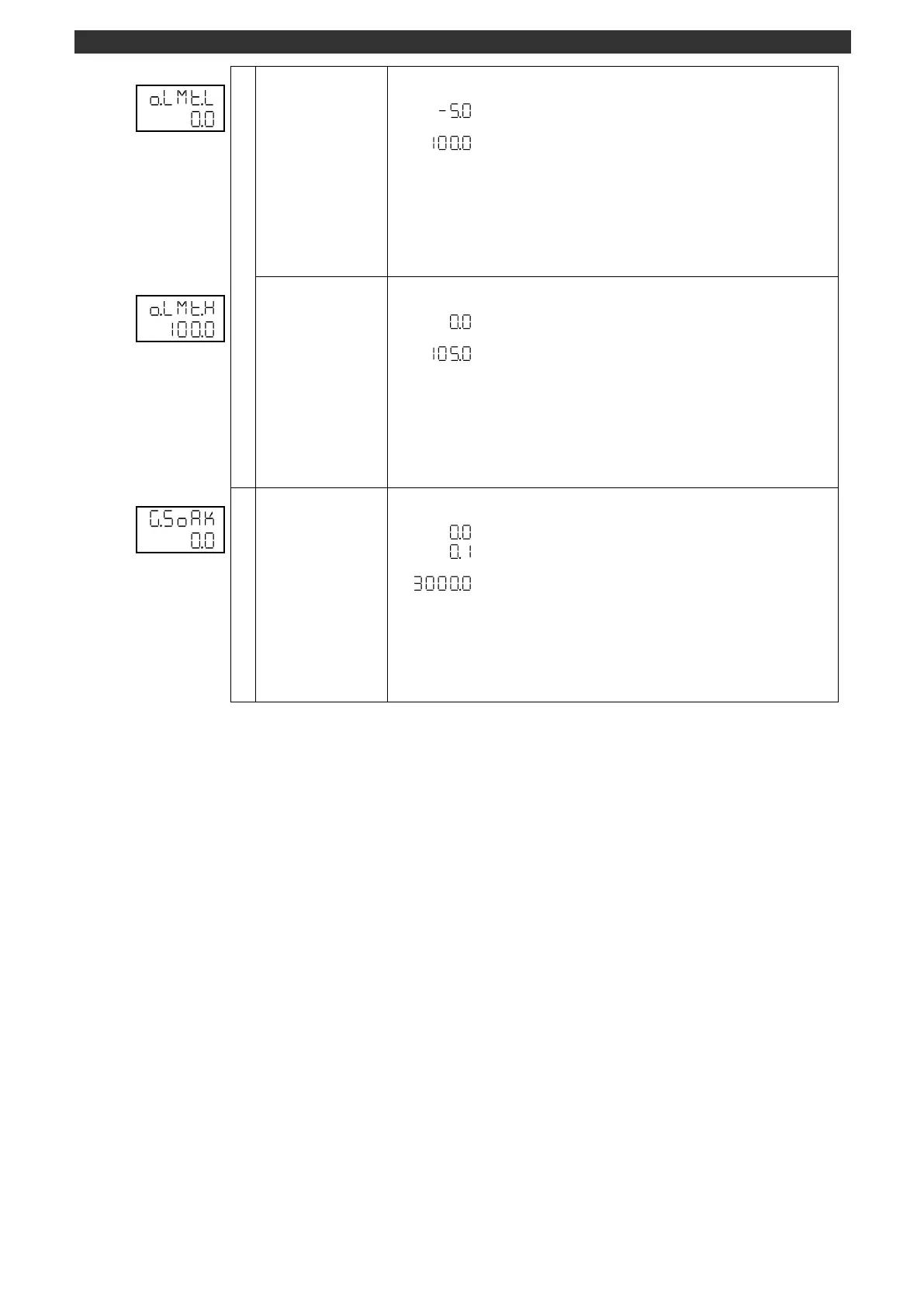

▲ SEL ↑ ↓ ▼ SEL
Output
Executing output limiter
lower limit
Sets/changes the lower limit of executing output limiter.
"
□□
"
to
"
□
"
Lower limit of executing output limiter [%]
Use the [

], [

] and [ENT] keys to set the lower limit of executing output limiter.
Use the [>] key to move the cursor to the right digit.
[Program operation]
When AUTO is selected at AUTO/MANUAL switch (operation screen) in the program
operation RESET status, the output limiter is not activated and the output is fixed to
0%.
□
▲ SEL ↑ ↓ ▼ SEL
Executing output limiter
upper limit
Sets/changes the upper limit of executing output limiter.
"
□□□
"
to
"
□
"
Upper limit of executing output limiter [%]
Use the [

], [

] and [ENT] keys to set the upper limit of executing output limiter.
Use the [>] key to move the cursor to the right digit.
[Program operation]
When AUTO is selected at AUTO/MANUAL switch (operation screen) in the program
operation RESET status, the output limiter is not activated and the output is fixed to
0%.
□□□
▲ SEL ↑ ↓ ▼ SEL
Deviation
Executing guaranty
soak
Sets/changes an executing guaranty soak.
"
□□□
"
Function OFF Guaranty soak does not function.
"
□□□
"
to
" "
Executing guaranty soak [°C]
This display is available for the specification with program function.
The display appears when program operation is selected for "Program/constant
value operation switching (MODE2)".
Use the [

], [

] and [ENT] keys to set the executing guaranty soak.
Use the [>] key to move the cursor to the right digit.
The decimal point position follows the SV decimal point position.
