Control Installation Chore-Tronics® 3 Control
108
MT2398C
Expansion Board Dip Switch Setting- Each Expansion Board installed must have the DIP switches set
properly. These DIP switches are used to assign a number to each Expansion Board so the Control can
identify each Board. To assign the first Expansion Board installed to #1, set the DIP switches for
Expansion Board 1 so that the number one switch is in the "OFF" position and the rest of the switches are
in the "ON" position. See Figure 36 below for Dip Switch settings for all seven Expansion Boards. Note:
Only the first two Expansion Boards are shown.
ON
123 4 52
1
2
ON
123 4 52
Expansion Board #1
Expansion Board #2
Item Description
1 Expansion Board #1
2 Expansion Board #2
3 Expansion Board Dip Switch
ON
123 4 52
ON
123 4 52
ON
123 4 52
ON
123 4 52
ON
123 4 52
Expansion
Expansion Expansion Expansion
Expansion
3
Board #3
Board #4

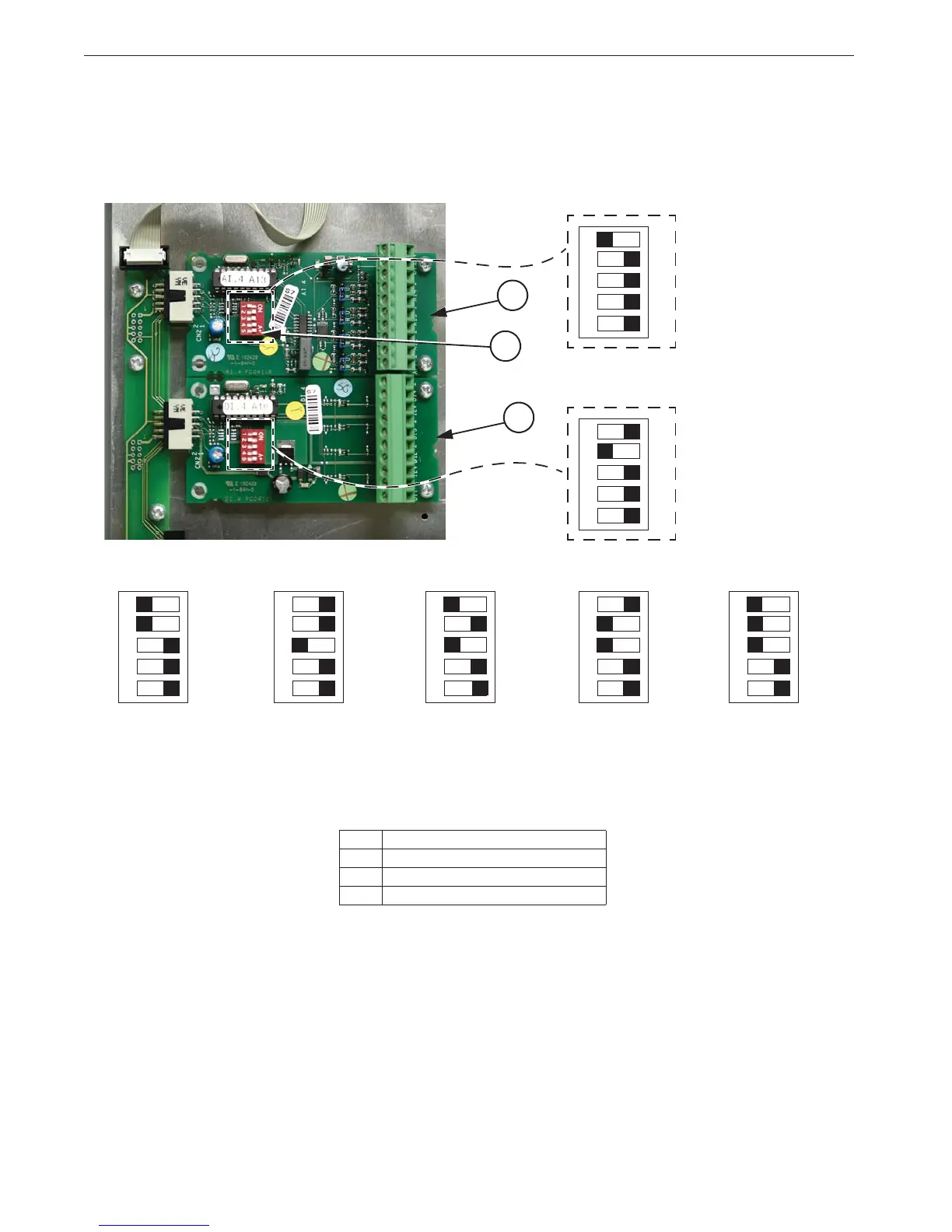

Figure 36. Expansion Board Dip Switch Settings
Board #5 Board #6
Board #7
