Analog Inputs-House Temperature Sensors.

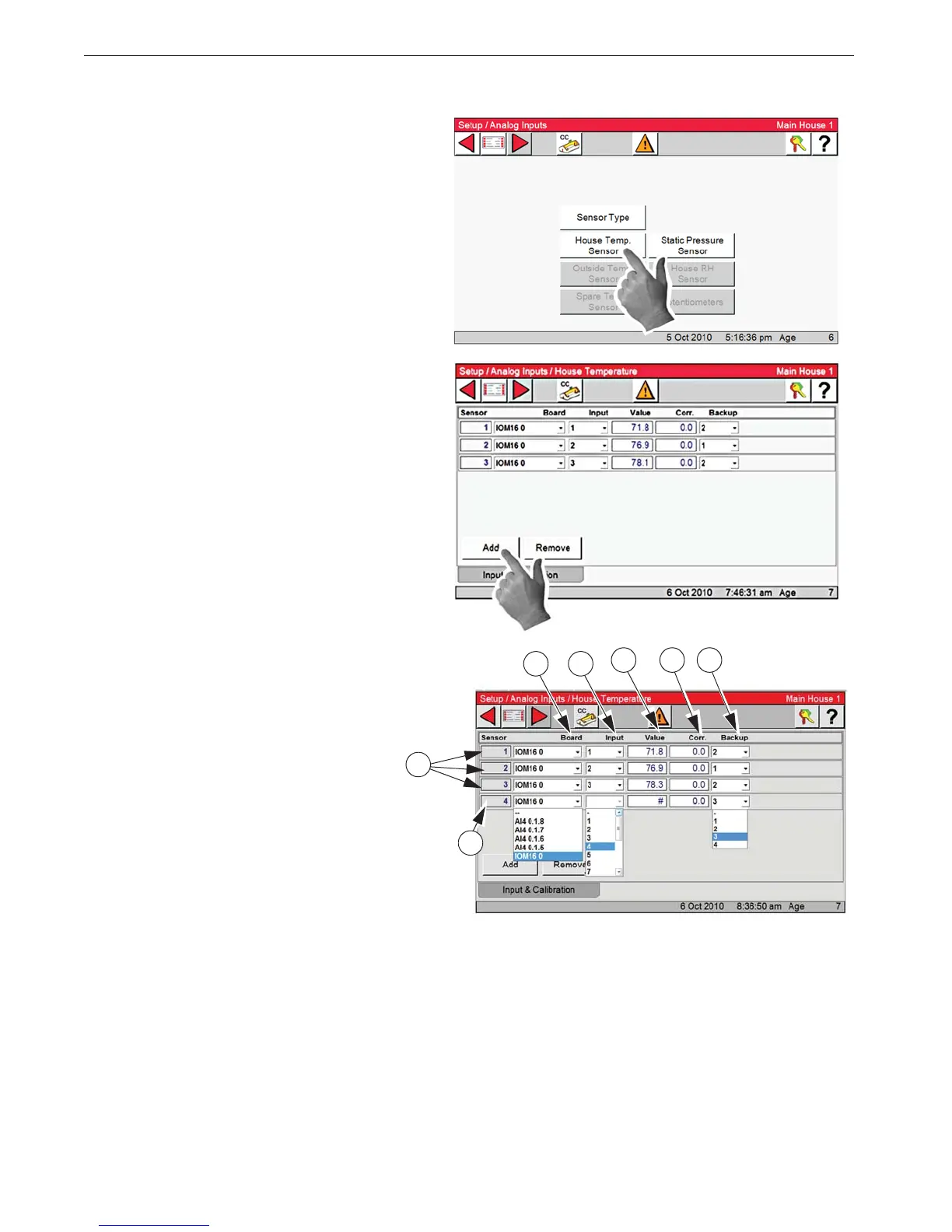

1. Select the House Temp. Sensor button
From the Setup/Analog Inputs screen select
House Temp. Sensors button. The Setup/Ana-
log Input/House Temperature screen should be
displayed at this time
2. Factory assigned
Sensor numbers
Temperature sensors 1-3 come from the facto-
ry pre-assigned. To assign the next sensor se-
lect the Add button and the next sensor will
appear (See below right).
3.
Adding Sensor assignments
Fill in the Board, Input, and backup by select-
ing from the dropdowns. Continue until all the
temperature sensors have been assigned. If it is
desired to skip a sensor and move to the next
sensor in the list, select the - (not assigned) on
the sensor that needs to be skipped and select
the ADD button, next sensor will appear in the
list.
4
4. Board
The number of the Board the Sensor is con-
nected. Board number 0 is the IOM16 Board.
If the sensor is connected to an additional an-
alog input board, then the Board number
matches the address of the add on Board (see
the installation section of this manual).
5.
Input
This is the input number that the Sensor is
connected to on the Board. On the IO Board
the input number will be 1 thru 16. If the Sen-
sor is connected to an additional Analog Input
Board then the Input number will be 1-4.
5
6
6. Value
This is the current temperature reading.
7. Corr.
This is the amount of correction made when the sensor was calibrated. Calibration will be gone over
later in the manual.
8. Backup
This is the sensor you want to be the backup if the sensor fails.
