Control Setup Chore-Tronics® 3 Control
23
MT2398C

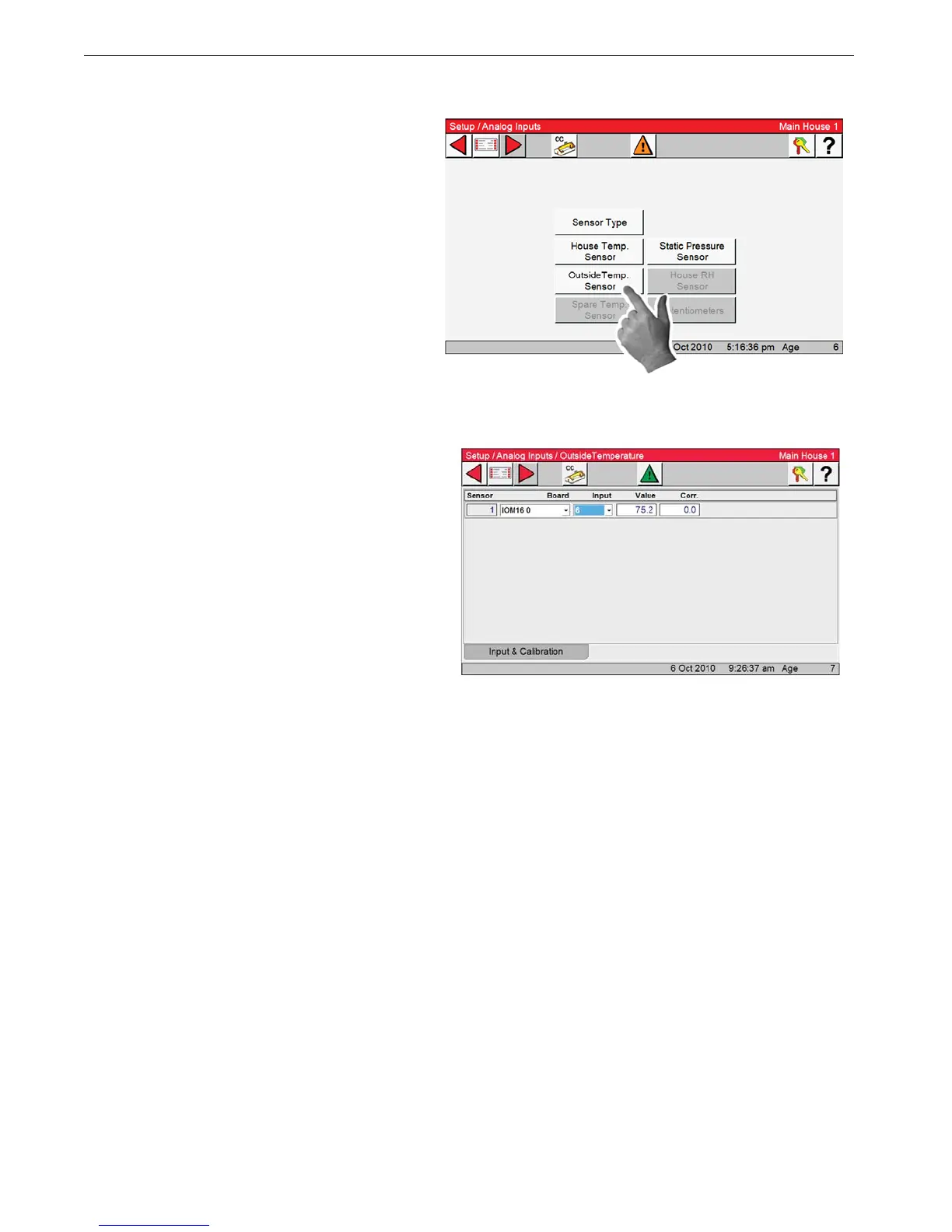

Analog Inputs-Outside Temperature Sensor
1. Select the Outside Temp. Sensor button
In this screen the Outside sensor is assigned.
Calibration is also done from this screen. Skip
this Screen if no outside sensors are installed.
2. Adding Sensor Assignments
Fill in the Board and Input by selecting from
the dropdowns.
Select the Back button after the Outside temperature sensor has been assigned.
