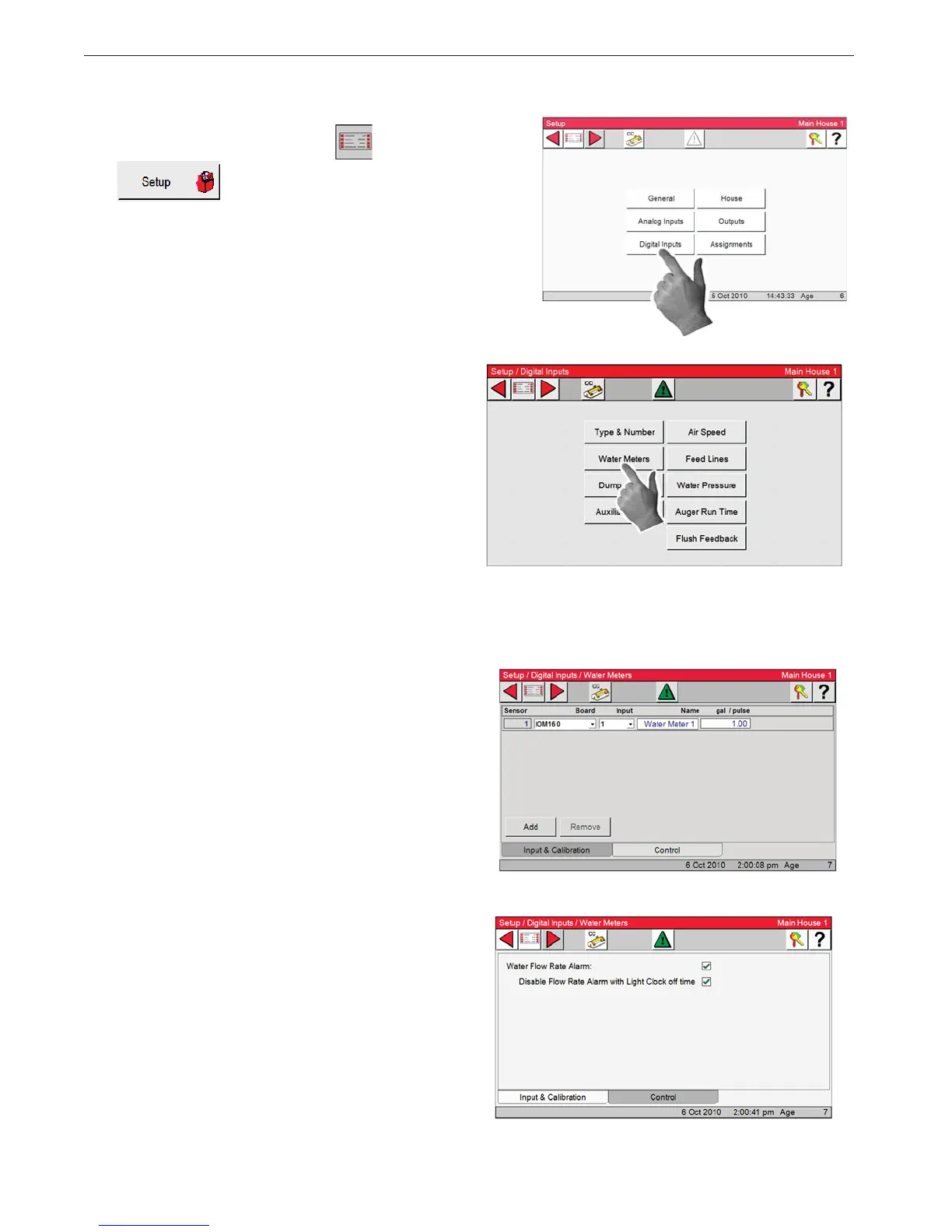

1. Select the Main menu button. Select the Setup but-
ton from the Main Menu screen. Finally, se-
lect the Digital inputs Button.
2. Select the Water Meters button.
3. Enter all Drinker/Water Meters that are connect-
ed to the CT3 here. A Drinker Water Meter is a Wa-
ter Meter that is monitoring the water being used by
drinker water lines or the entire house (1 meter for
both drinker lines and Cool Pads). If a Water Meter
is assigned an input here, its daily usage will be add-
ed to the total amount of consumed water in the
management screen. When a Water Meter or other
digital input is assigned to a board and an input on
that board, to add the next Water Meter or digital in-
put select the ADD button and Meter #2 will appear.
If it is desired to skip a Meter or other digital input
and move to the next digital input in the list, enter
(not assigned) for the input that needs to be skipped.
it is desired to skip a Meter or other digital input and
move to the next digital input in the list, enter (not
assigned) for the input that needs to be skipped.
4. Select the Control tab
Water Flow Rate Alarm- Put a check in the box if
you want an alarm when flow rate is too high. The pa-
rameters are setup in the Alarm screen under the Pro-
duction tab.
