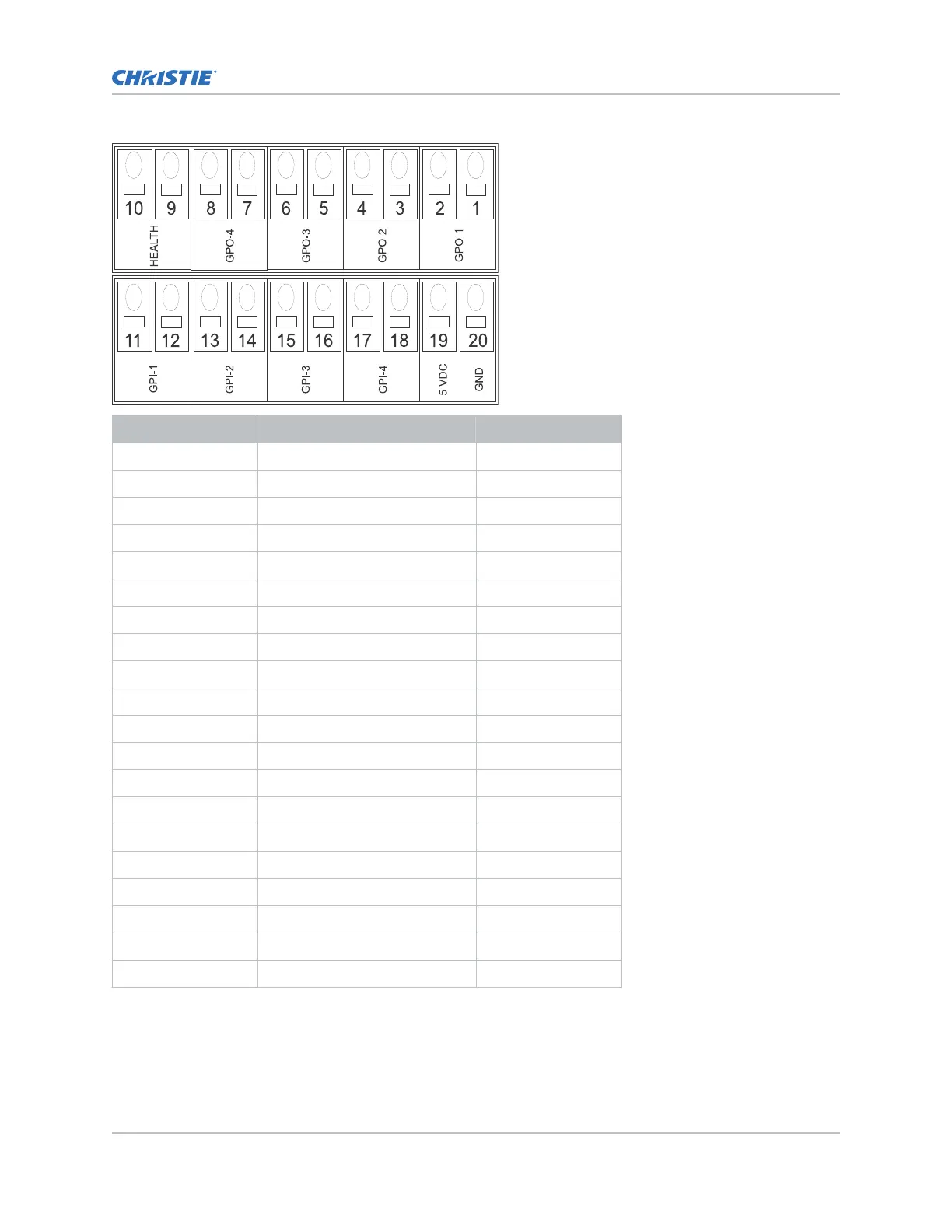

Pin number Signal name Direction
Pin 1 GPO1_POS Out
Pin 2 GPO1_NEG Out
Pin 3 GPO2_POS Out
Pin 4 GPO2_NEG Out
Pin 5 GPO3_POS Out
Pin 6 GPO3_NEG Out
Pin 7 GPO4_POS Out
Pin 8 GPO4_NEG Out
Pin 9 HEALTH_POS Out
Pin 10 HEALTH_NEG Out
Pin 11 GPI1_POS In
Pin 12 GPI1_NEG In
Pin 13 GPI2_POS In
Pin 14 GPI2_NEG In
Pin 15 GPI3_POS In
Pin 16 GPI3_NEG In
Pin 17 GPI4_POS In
Pin 18 GPI4_NEG In
Pin 19 +5V —
Pin 20 GND —
GPIO inputs
The 5 VDC (pin 19 and pin 20) is intended for use to supply the inputs.
