Automatic Transformer Test System 3300/3302 User’s Manual
4.4.8 Zx. Setting Description

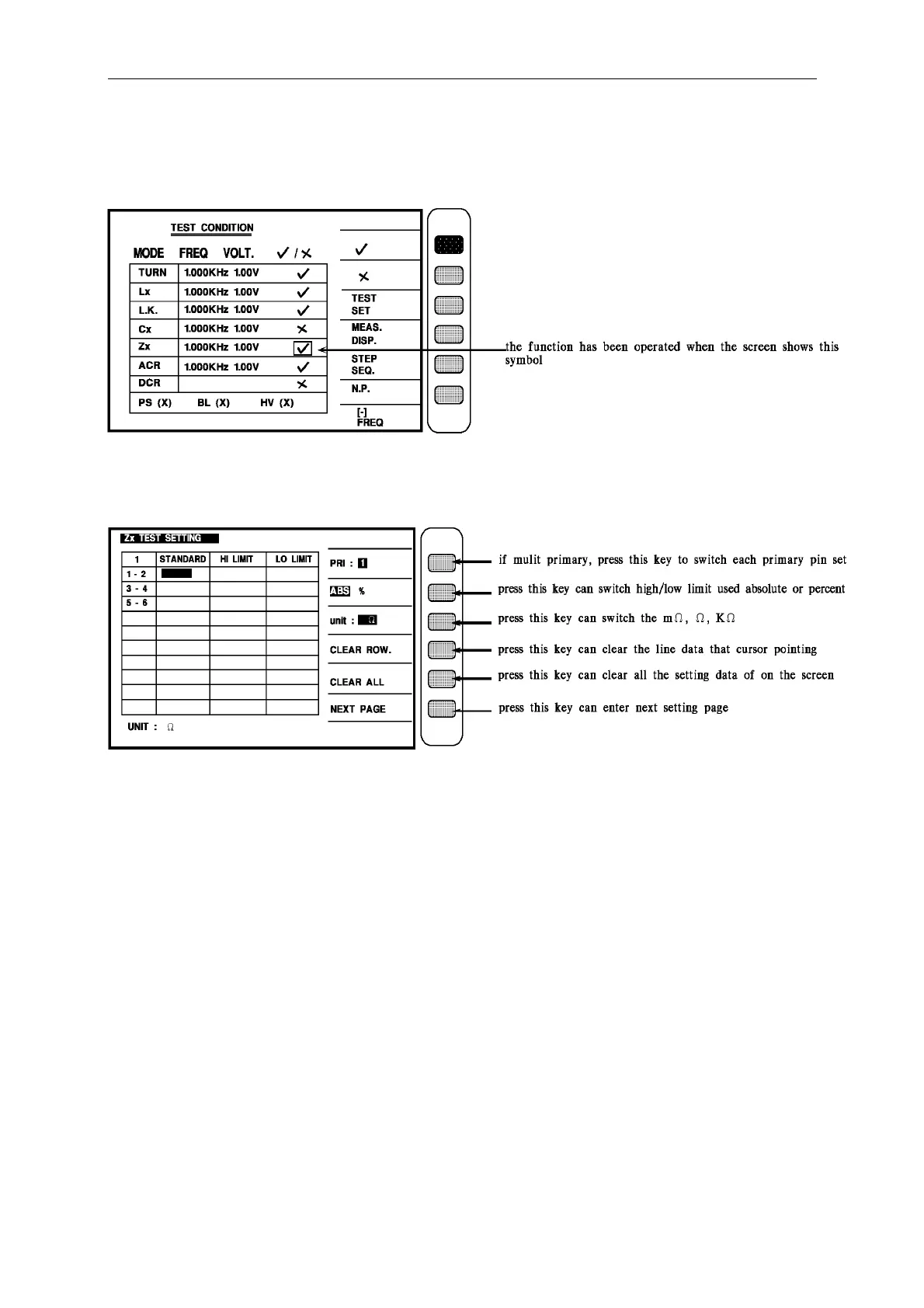

Under the test condition setting input the Zx test voltage and freq., then open this function
When this function has been opened, then the guidable operation will automatic enter each
setting screen that we have set already, and while enter Zx setting screen, the screen is as
below:
The description of each visible parameter are as following:
PRI : The first level pin setting
1-2, 3-4, 5-6 : The secondary turns of the transformer
STANDARD : The standard value of each turn
HI LIMIT. : The judgment of the Hi-limit value
LO LIMIT : The judgment of the Lo-limit value
When enter this screen then into the transformer Zx judgment setting, the same as above is the
guidable operation, just according screen block-light with number keys to input the value then
press [Enter] then automatic skip to next setting item, use this method to set till the last item
(the set secondary) then press [Enter] to change to the next parameter setting screen.
If want to change setting on the block-light, use the four keys under cursor to move.
