Application of Interface
5-1
5. Application of Interface
5.1 Transformer Automatic Scan Interface (Scan Box)
5.1.1 Description The Test Function
About the application of transformer automatic scan test interface, must be with 3001A scan
box use in automatic scan test fixture then can work prefect.
This instrument can offer the test items LX, LK, Q, TURN-RATIO, VOLTAGE-RATIO,
PHASING, CX, DCR, LX-BALANCE, DCR-BALANCE, PIN-SHORT…..etc.
This instrument can offer the functions pin of transformer and test fixture automatic change,
automatic time setting, multi-primaries test, multi-leakage inductance test, measurement
deviation, statistic the good and no-good amount, test parameter stored and recall memory,
repeatedly test no good item….etc.
So, use 33XX with 3001A can show prefect test function, to offer fast, convenient, precision
test.
5.1.2 Notice before Using

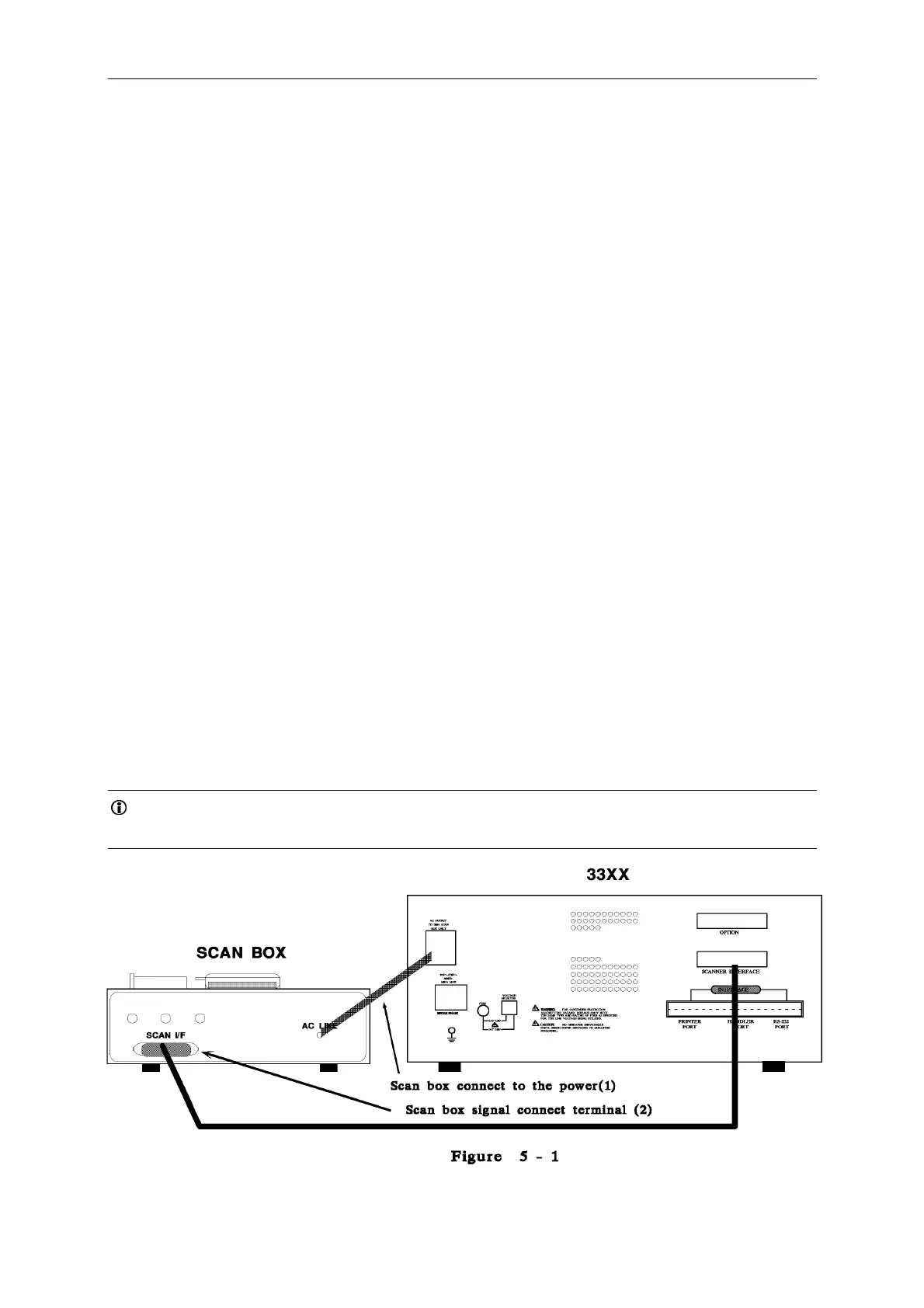

AC input line of the model 3001A test fixture (scan box ) is offered an appropriate output
from 33XX rear panel, do not use the other AC source, on the other hand, the signal control
lines and test cable should be connected with 33XX, the connecting is as below:
 Notice :
Before connecting the cable or any control line, turn off the power of 33XX.
