Application of Interface
d. Air control line socket (CYLINDER)
This socket is to offer and control the air switch power, please connect the power cord of air
switch to this socket.
e. Foot switch socket (FOOT SWITCH CONTROL)
It is a socket that control the scan box in the different way, please connect the power cord to
this socket.

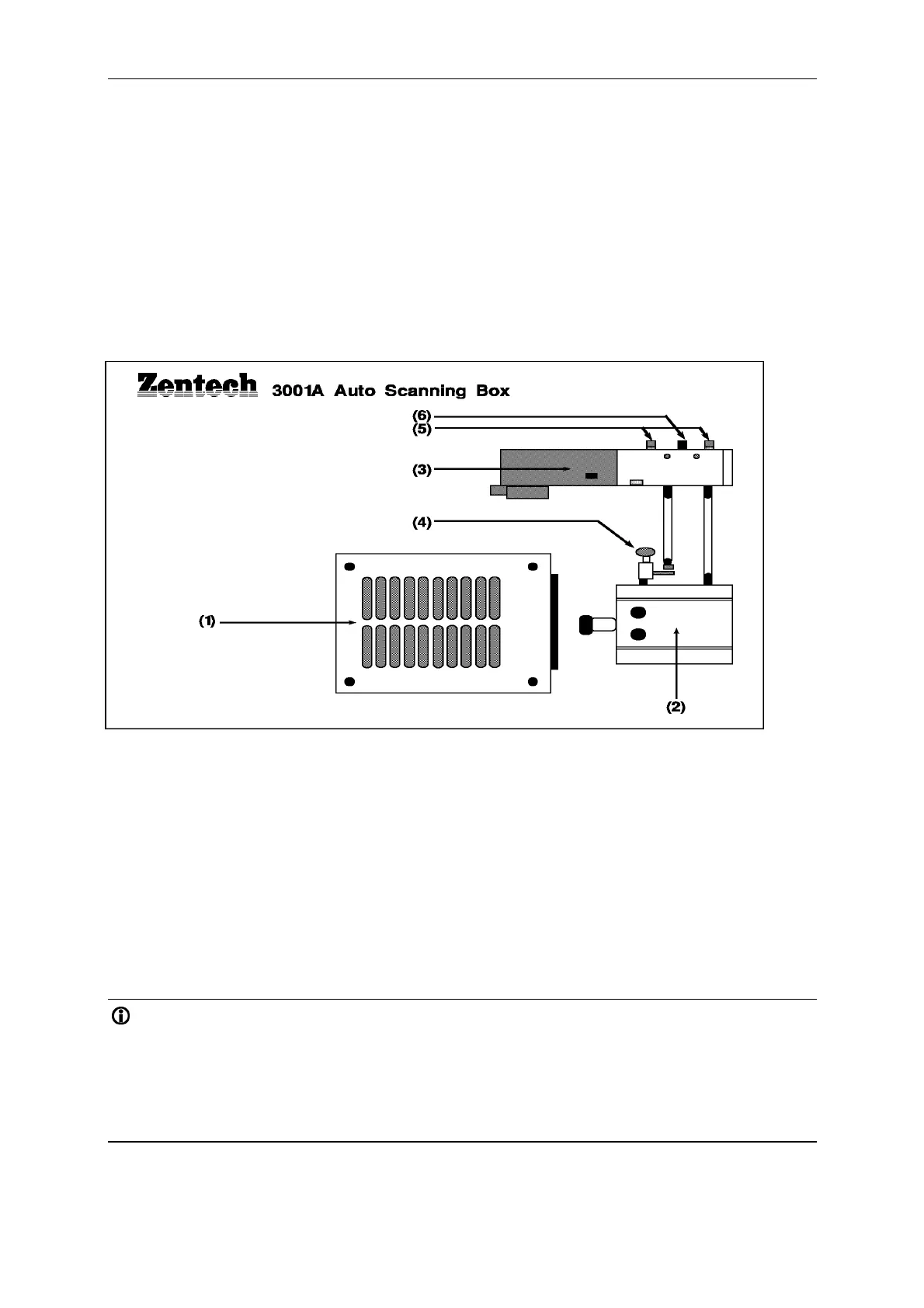

5.1.5 Scan box Description
(1) TEST FIXTURE
This test fixture is reversible, if want to change the fixture of difference pin length just need to
take apart four screws then install the fixture that you intent to use, but be careful the correct
position of pin length and screw holes.
(2) CYLINDER
The main push power of this test fixture.
(3) PISTON CONTROLLER
To control how much the cylinder in and output air, the power is DC24V.
Notice :
A. Please add the filter which can filter water before the vantage of the piston to extend
the life of cylinder and piston.
B. The atmospheric pressure specification of this air valve is limited to be used in 5- 6.5
kg/cm
2
