Automatic Transformer Test System 3300/3302 User’s Manual
(4) ADJUSTING SPEED KNOB
This knob is for adjusting the speed of the piston, can made cushiony to avoid shake, but not
for long time, inside the plastic screw is for adjusting speed, external iron screw is for
fixative.
(5) STOP AIR KNOB
This knob is for quiet and to avoid dusty.
※
The function of the two screw caps which are at front of the cylinder is to adjust the
gap between head of piston and test fixture, the front of screw cap is for adjusting, the rear
of screw cap is for fixative.
※
This test fixture is an equipment that use frequently, so should be noticed the maintenance
to keep the measurement correct.
(6) PISTON
Connected to air compressor, for providing air pressure.
5.1.6 Test Fixture (Scan Box) Description
※
Read the instruction before using
※

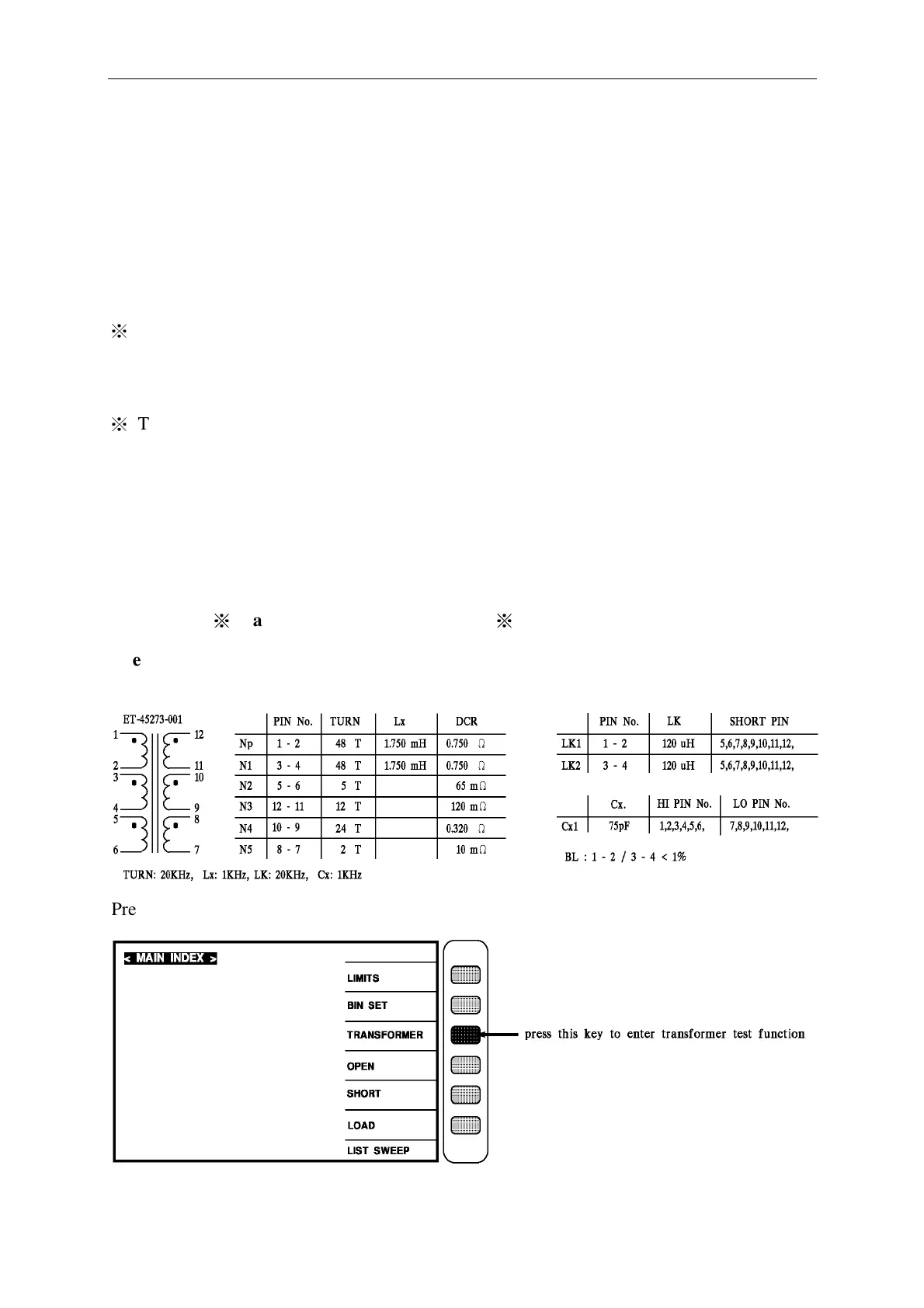

The sample for setting:
The spec. and pin of the transformer are following:
Press the key [Main Index] then show the screen as below.
