Local Operation

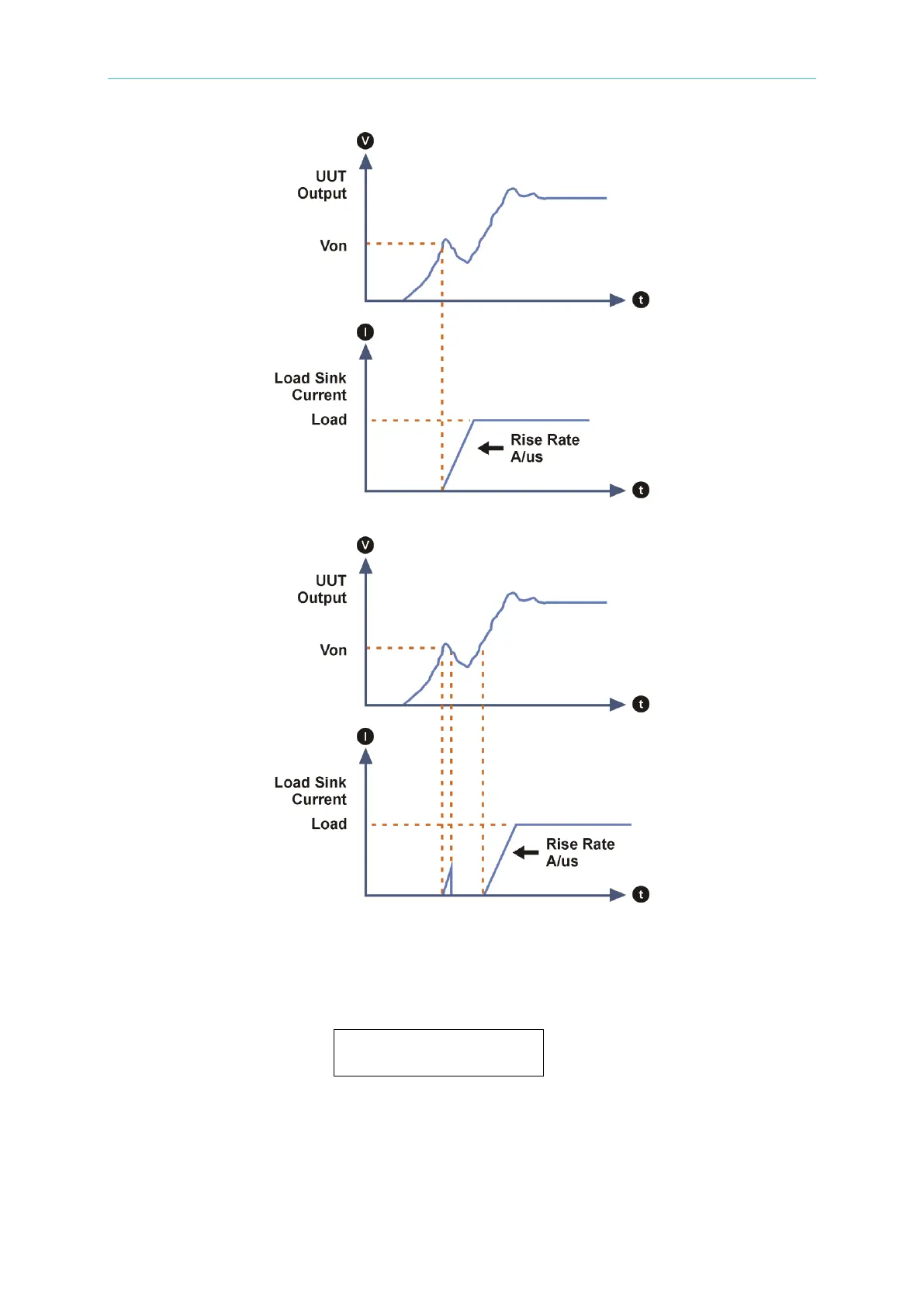

Figure 4-8 Von LATCH ON Current Waveform
Figure 4-9 Von LATCH OFF Current Waveform
Set Voff point. Voff is the conduction voltage level, and it is only available in Timing mode.
The Electronic Load stops sinking current when the UUT output down to reach the Voff
voltage. To avoid the logic error, the Voff should be less than or equal to Von. The default
setting for Voff voltage is 0V.
Vof_POT : 00.000V
Set CV mode type. There are two operation modes in CV mode: Current PSU and Voltage
PSU. This option is for users to choose appropriate CV movement to apply to different UUT.
CV Mode type of Current PSU is for Current source supplies like Charger and Current source.
CV Mode type of Voltage PSU is for Voltage source supplies like Fuel cell, Battery,
Photovoltaics source. The default setting of CV mode type is Voltage PSU.
