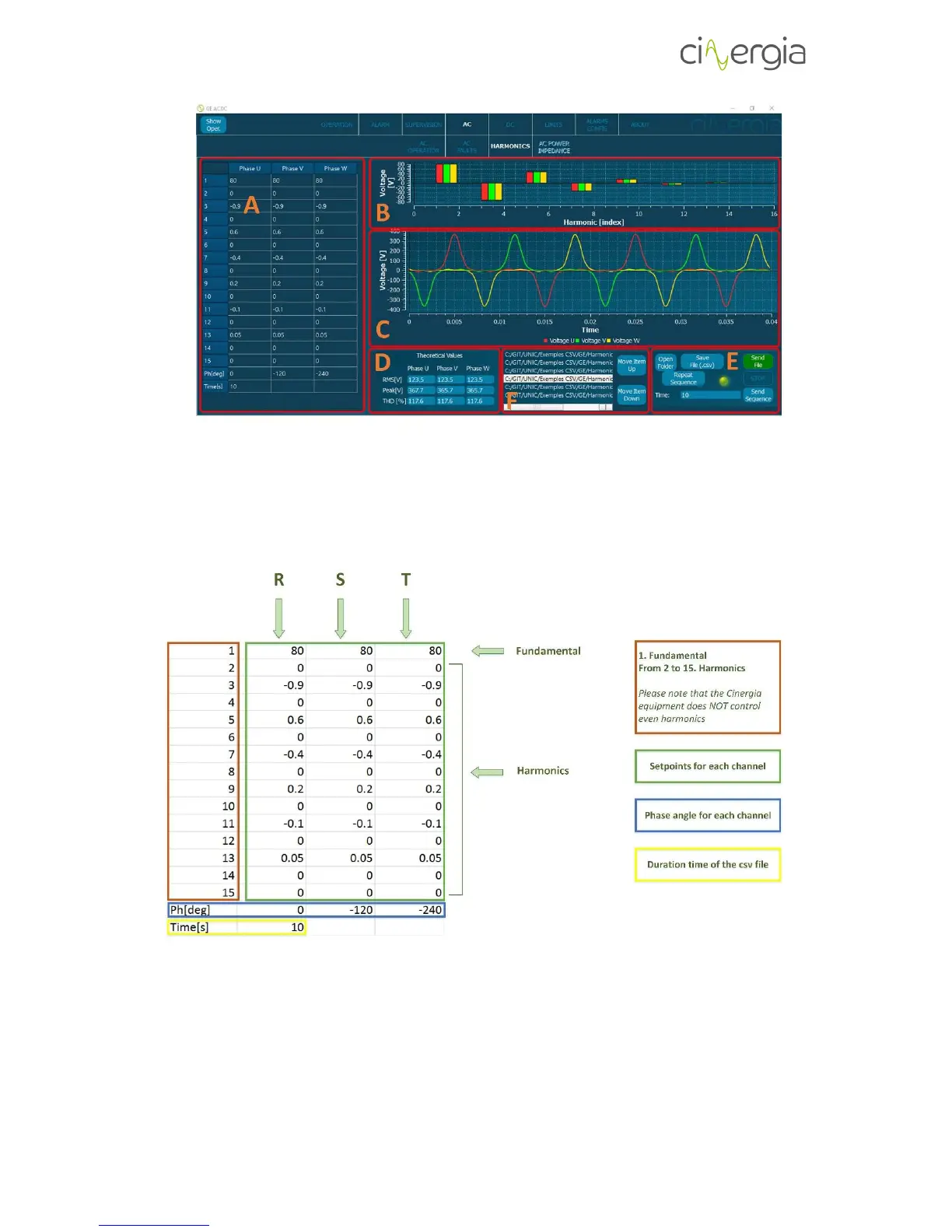

- A: This table shows all the values that refer to the configuration of the harmonics and it
is distributed in the following way:
The user can write the desired values on this table of the interface to create a harmonic
file to be sent or saved as it is explained in the point E of this chapter.
- B: Meanwhile the user is introducing the values for the harmonics in table A, the index
graph is refreshing at the same time. Remember that the index graph has the
fundamental (with its full value) at the left part and the harmonics (with its percentage
value, positive or negative, referenced to the fundamental).
