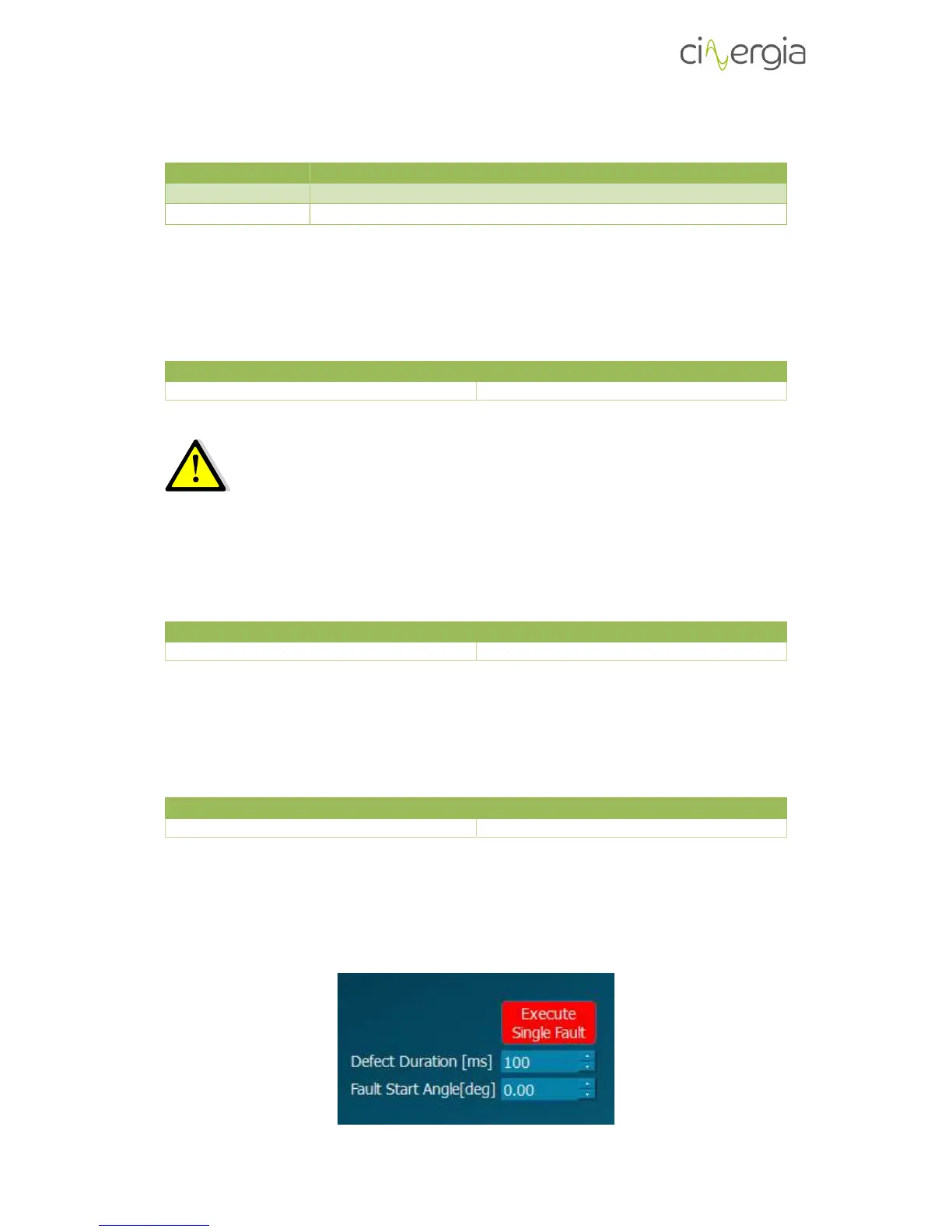

VI. Parameters and limits (DC mode)
In CV mode, the GE AC&DC wrks as a DC power supply:
Parameter
Allowed range of values
Unipolar voltage
[0 , +750]
Bipolar voltage
[
-
350 , +350]
5.3.2. Constant current (CC)
In CC mode, the user may modify the values of the following parameters as long as they are
within the specified range (only available in DC mode):
Parameter
Allowed range of values
Current ± rated current depending on the catalogue
A setpoint with a ramp higher than 5A/ms will produce over peaks bigger than
10%.
5.3.3. Constant power (CP)
In CP mode, the user may modify the values of the following parameters as long as they are
within the specified range (only available in DC mode):
Parameter
Allowed range of values
Active power ± rated power depending on the catalogue
5.3.4. Constant impedance (CI)
In CI mode, the user may modify the value of the following parameters as long as they are within
the allowed range (only available in DC mode):
Parameter
Allowed range of values
Resistance 1000 – 0.8 Ohm
5.3.5. Faults Generation (FG)
This mode allows the user to define and apply faults in the grid previously generated with the
CV mode.
