Cinergia GE+ - DC (Q4 in DC Position)

GE+ ACDC Installation and operation manual v11
57 / 121

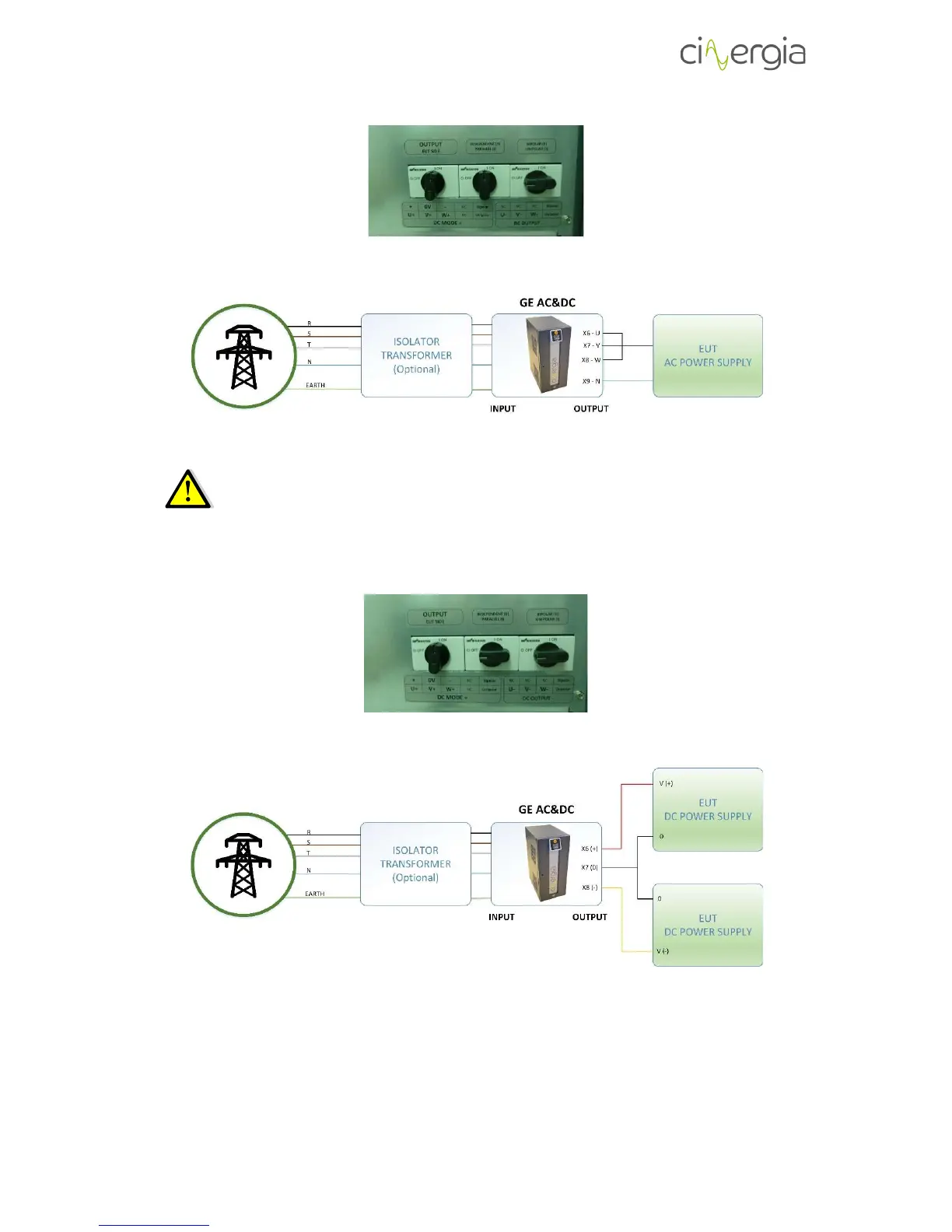

II. Parallel mode
Please note that working with a single-phase grid requires a short circuit between
the output terminals in the Cinergia converter. X6, X7 and X8 must be short circuited.
5.4.2. DC (Q4 in DC position)
I. Bipolar mode
II. Unipolar independent mode
