8. REMOTE COMMUNICATIONS

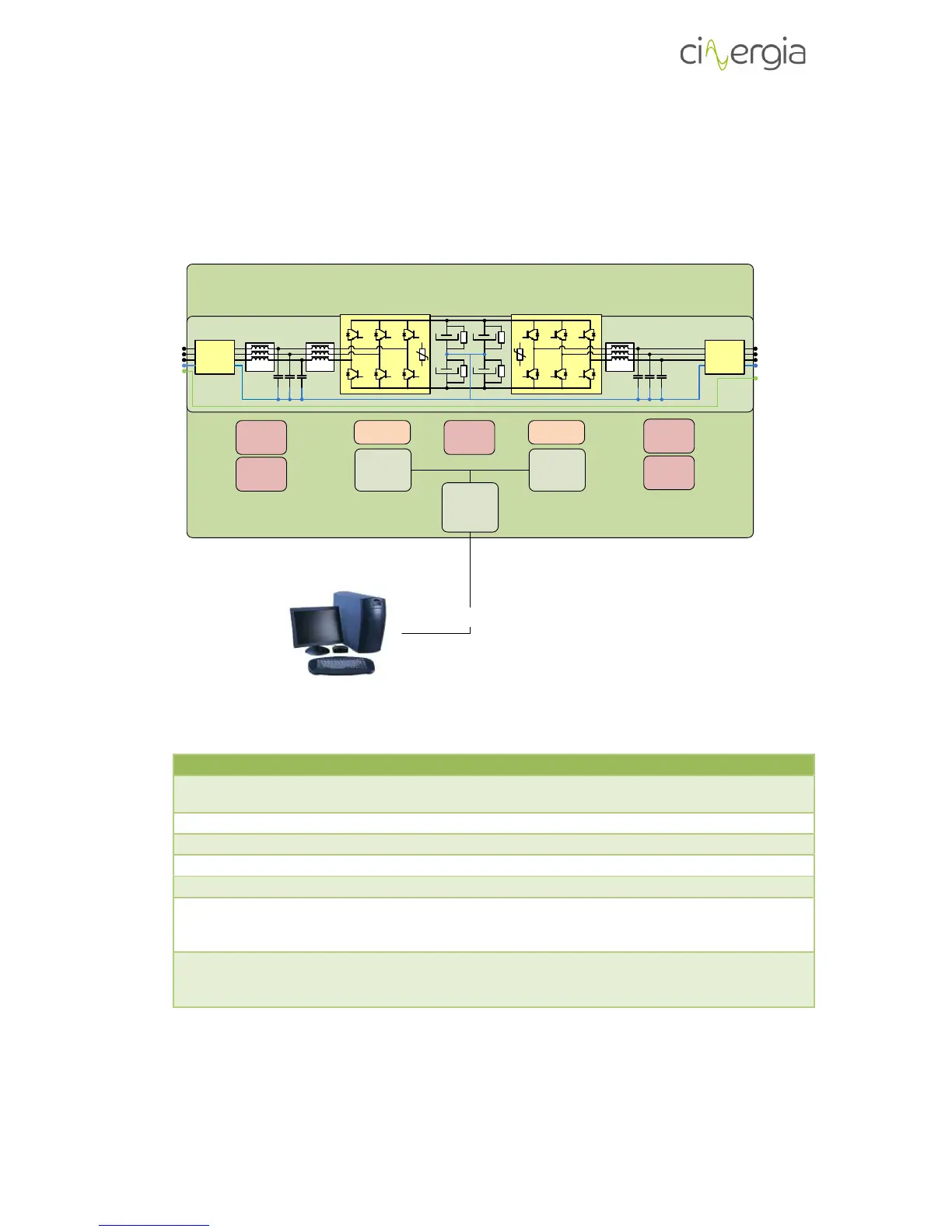

CINERGIA’s power supplies can be operated and supervised remotely through an Ethernet
communications bus. An internal embedded PC, with CINERGIA’s proprietary software, allows
the exchange of information between the internal CAN bus and the external Modbus TCP/IP
(Ethernet). In this way, the customer can build specific HMI client software application while
CINERGIA’s power supply acts as a Modbus TCP/IP server.
Drivers x6 Drivers x6
Current
sensor x3
Voltage
sensor x2
Voltage
sensor x3
Current
sensor x3
Voltage
sensor x3
PE
-U
-U
PE PE
EMC
filter
EMC
filter
AC output
GE
U
DSP
board
DSP
board
CAN/
Ethernet
board
CAN
MODBUS/TCP
ETHERNET
V
W
N
PE
R
S
T
N
PE
This Modbus TCP slave has the following properties:
It is important to read the document Modbus Data Table.
Property
Implementation
Function
Codes:
0x03: READ_HOLDING_REGISTER
0x10: WRITE_MULTIPLE_REGISTER
Server port:
502 (decimal)
Modbus node ID:
1 (decimal)
CRC
Not used in TCP. Used in Modbus RTU (RS485/RS232).
Multiple connections
Up to 10 connections allowed at the same time.
Idle
connections
Idle connections might be closed by the slave.
Anyway, the listen socket will force the master to keep the connection
active, even when there is no active connection at all.
Other
All variables are 32-bit length. This is 2 Modbus base register addresses.
And so all Read operations must begin at the beginning of one variable, and
be Even.
