The equipment may be installed in any place if the safety and ventilation requirements are
fulfilled.

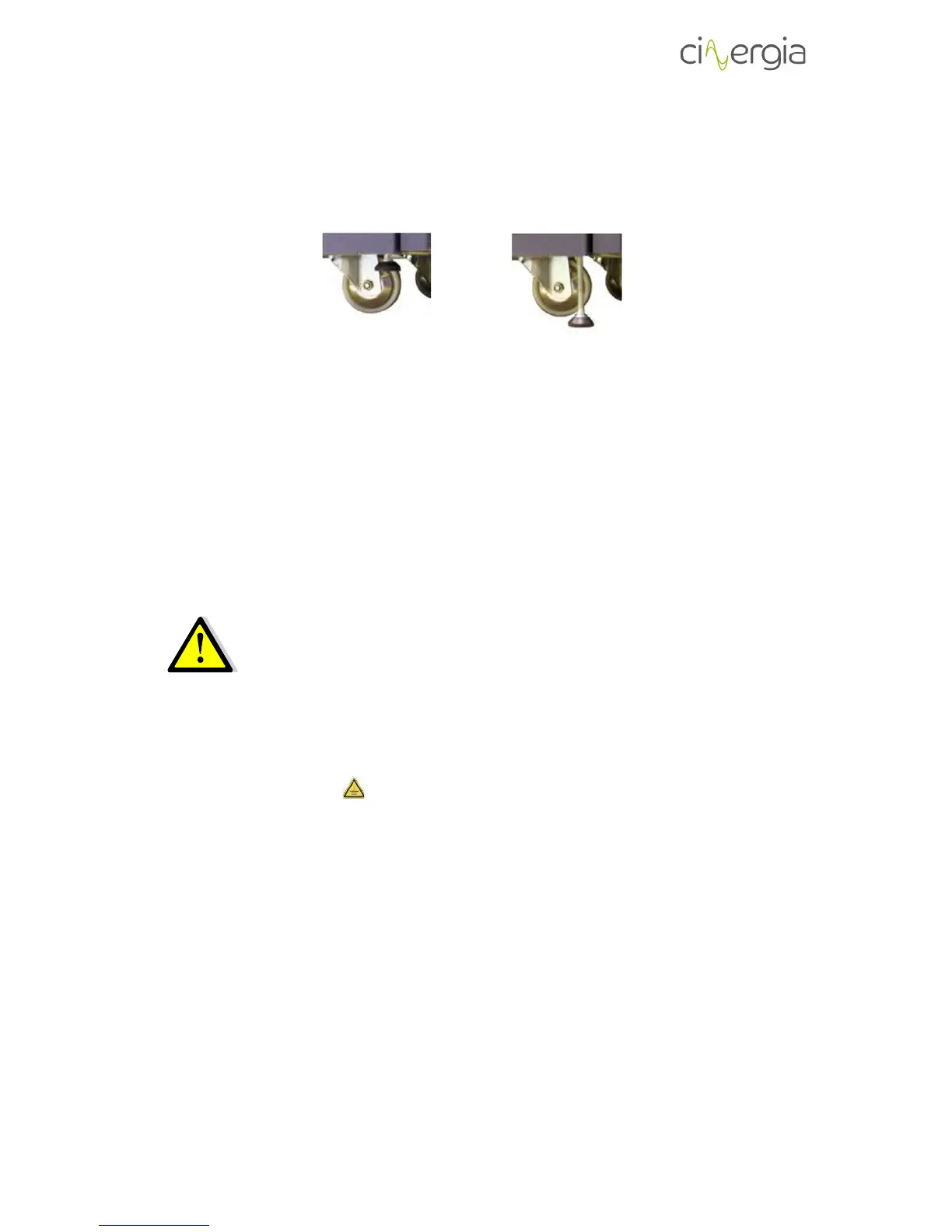

The power supply includes 2 levelling elements located near the front castors, which serve to
immobilize the unit once it is in place.
To adjust the level, open the front door of the cabinet and proceed as follows:
By hand, loosen the levelling elements by turning them anticlockwise until they touch
the floor, and then, using a spanner, continue loosening until the castors are raised off
the floor 0.5 cm maximum.
Close the door once more.
4.4. Connection
The recommended inspection interval to check terminal torque is once per year.
It is very important to be sure that all connections are done properly.
4.4.1. Earth protection
As a device with class l protection against electric shocks, it is essential to install a protective
earth wire (connect earth ). Connect the protection earth wire to the terminal (X5) before
connecting the grid to the grid emulator input.
On the other hand, connect the protection earth wire to the terminal (X10) before connecting
the EUT to the grid emulator output.
4.4.2. Input connection, terminals (X1 to X5).
Connect the grid cables R, S, T and N to the terminals (X1), (X2), (X3) and (X4) respectively. This
connection must always be done according to the label placed under the input screw terminals.
In case of discrepancies between labelling and this manual instruction, the label information
will always prevail.
