Cinergia GE+ - AC (Q4 in AC Position)

GE+ ACDC Installation and operation manual v11
56 / 121
Please remember to disconnect the equipment before modifying the connection
mode.

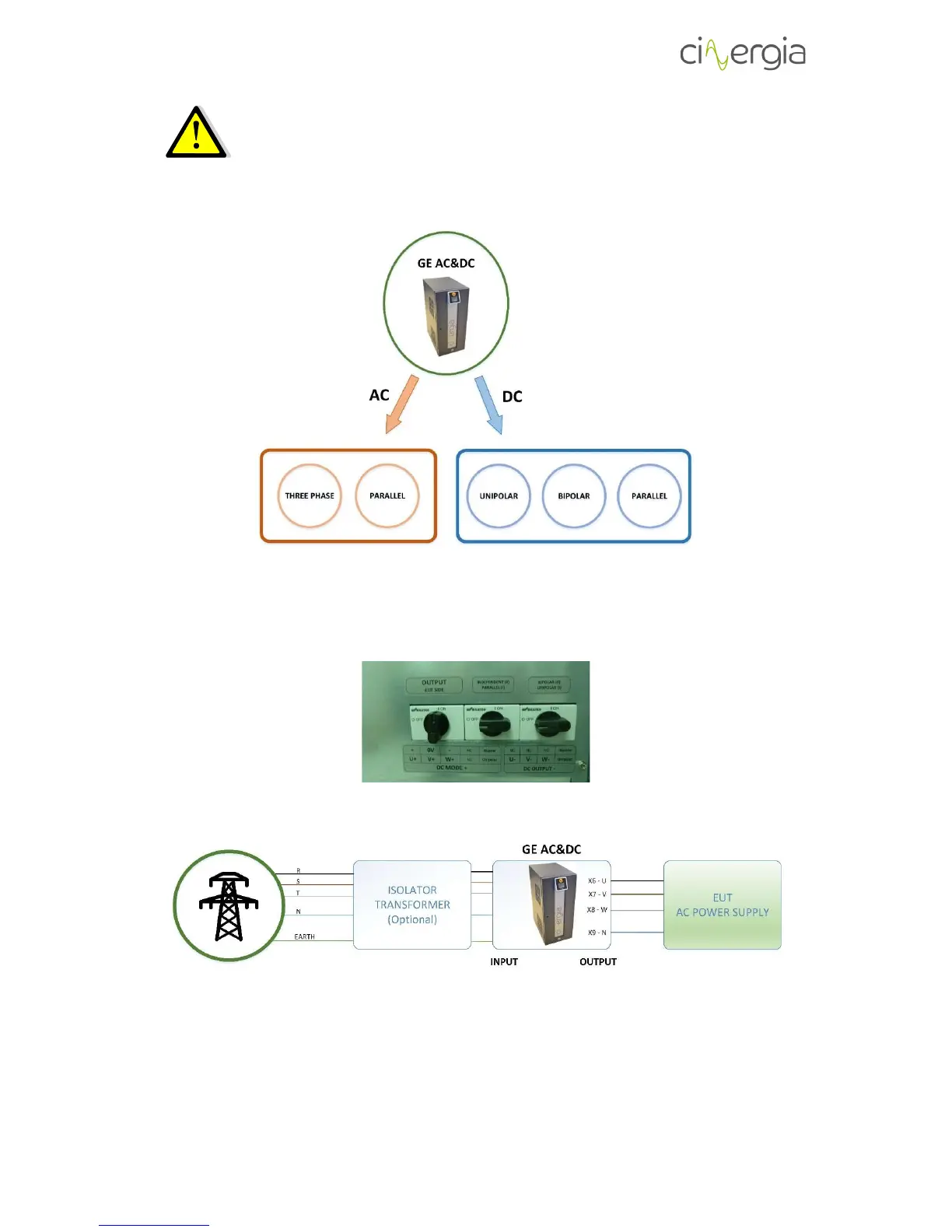

The following diagram illustrates the different operation connection modes:
5.4.1. AC (Q4 in AC position)
I. Three-phase mode
