GE+ ACDC Installation and operation manual v11
93 / 121

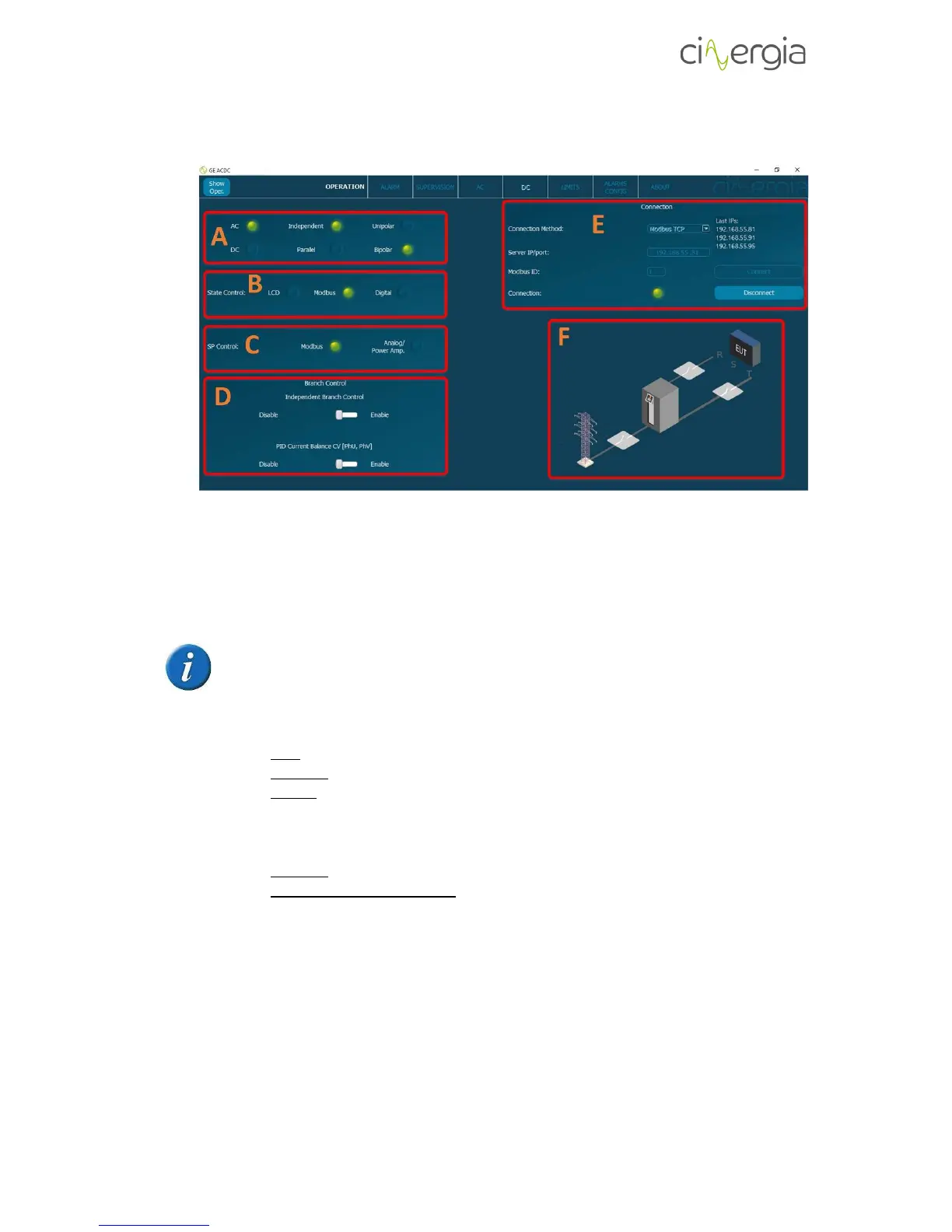

9.2.1. Operation
- A: Connection mode. Informs about the connection:
- AC Independent/Parallel Bipolar (note that AC unipolar is not allowed)
- DC Independent/Parallel Unipolar
- DC Independent Bipolar (note that parallel bipolar is not allowed)
The connection mode can only be modified by changing the switches in the front
panel. Please read the document Operation Modes for more information.
- B: Informs about which is the equipment’s state control:
- LCD: control from LCD screen.
- Modbus: control using Modbus Ethernet (IP) or serial port.
- Digital: control with digital/analogue control.
The selection of the control mode is set throw the LCD touchscreen (please see figure
below)
- C: Informs about which is the equipment’s setpoint control:
- Modbus: the setpoint is sent via Modbus (interface)
- Analogue / Power Amplifier: the setpoint is sent with an analogue signal. There
is also the possibility to us the converter as a power amplifier (optional).
The following figure explains how to change the control mode throw the LCD
touchscreen.
