VII. Parameters and limits
In FG mode, the user can modify the value of the following fault general parameters as long as
it is within the specified range:
Paramete
r
Allowed range of values
Fault duration Minimum: 100ms
Fault delay (β) – from phase U 0 - 360 °

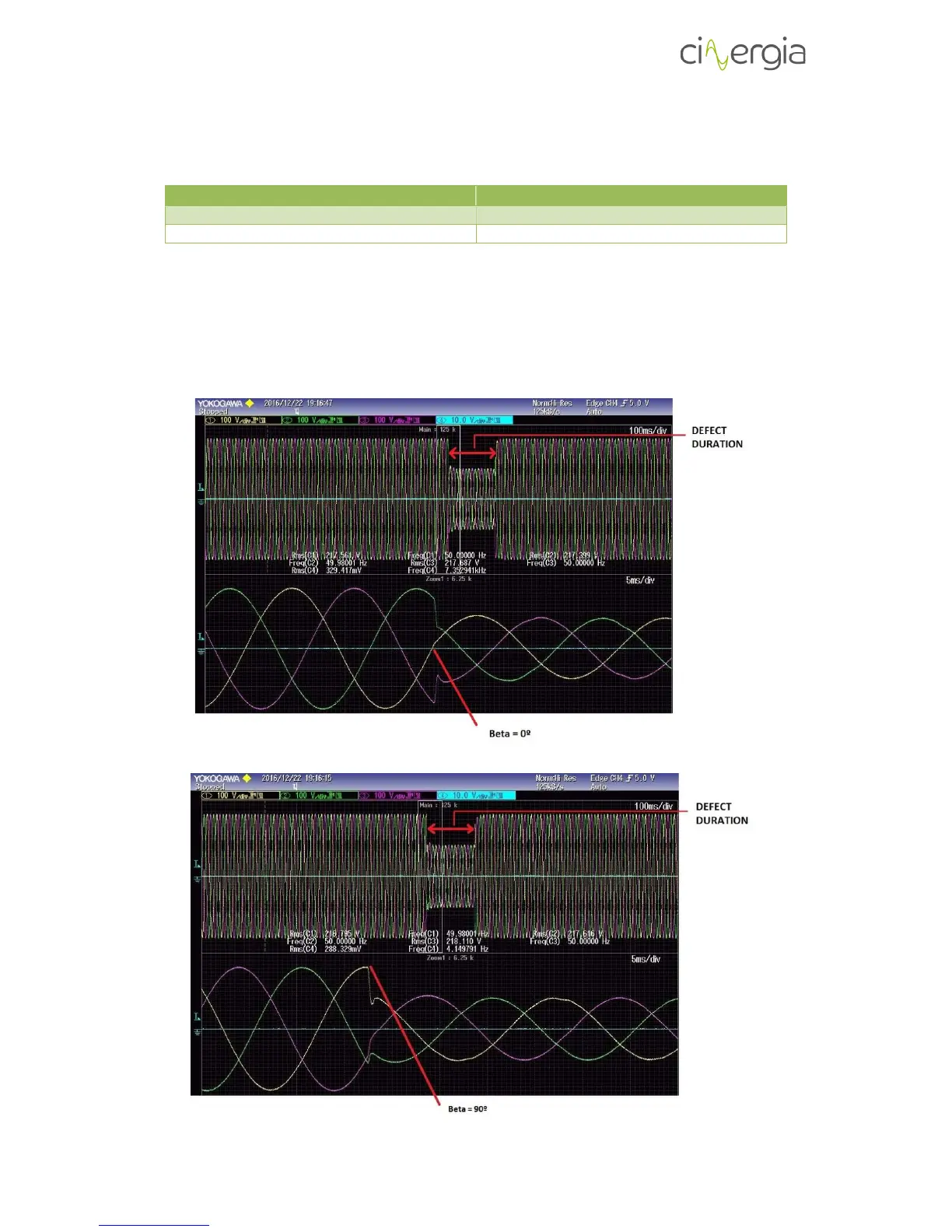

The specified fault will start when the button “Execute Single Fault” is activated. The two
following images show an example of a voltage dip with different fault delay (β). The first one has
a β=0º whereas the second one β=90º.
