minimum displayed at the current time. This configuration is able for all three
graphs.
2. The number of points are all the points that will be displayed in the graphs. If
the number is high the time is going to be longer whereas it is going to be
displayed a short period of time with a low number of points. This value is
common for all 3 graphs.
9.2.4. AC
This tab contains all the subtabs concerning the AC mode: AC Operation, AC Faults and
Harmonics.
Remember that the Show Slide button is available in all the tabs. It is useful to
hide the control operation of the converter to have a wider view of the working
tab.

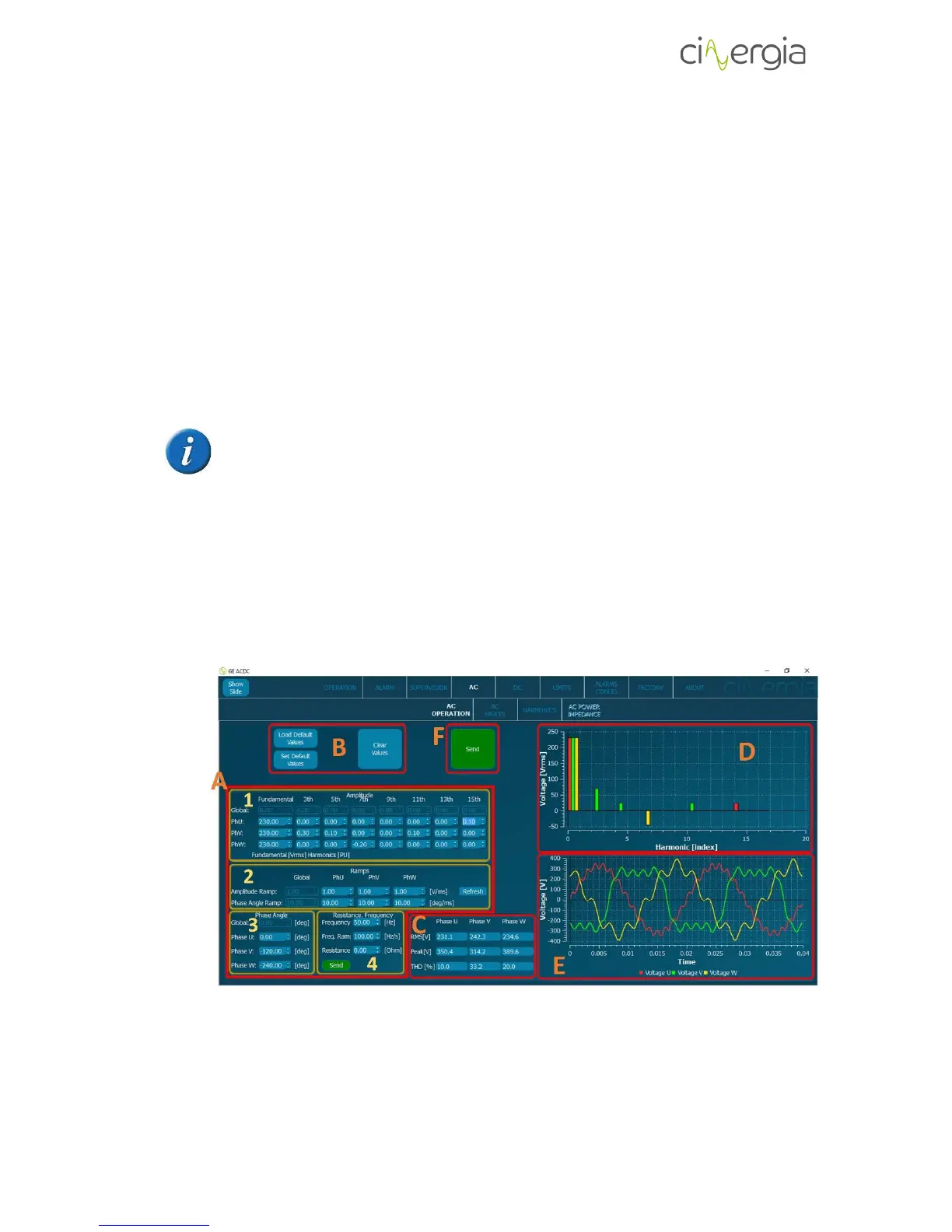

I. AC Operation
This subtab allows the user to send all the AC parameters to control the Cinergia converter in
AC mode: voltage setpoints, harmonics, phase angles, frequency, grid resistance and ramps.
- A: Part of the subtab to introduce all the parameters to be sent to the converter.
1. Set the fundamental amplitude of the voltage setpoint in the first column. The other
7 columns are for the harmonics setpoints. The units for the first column are volts,
