92
Enter Setup
1663 Barcode Scanner
U
ser Guide

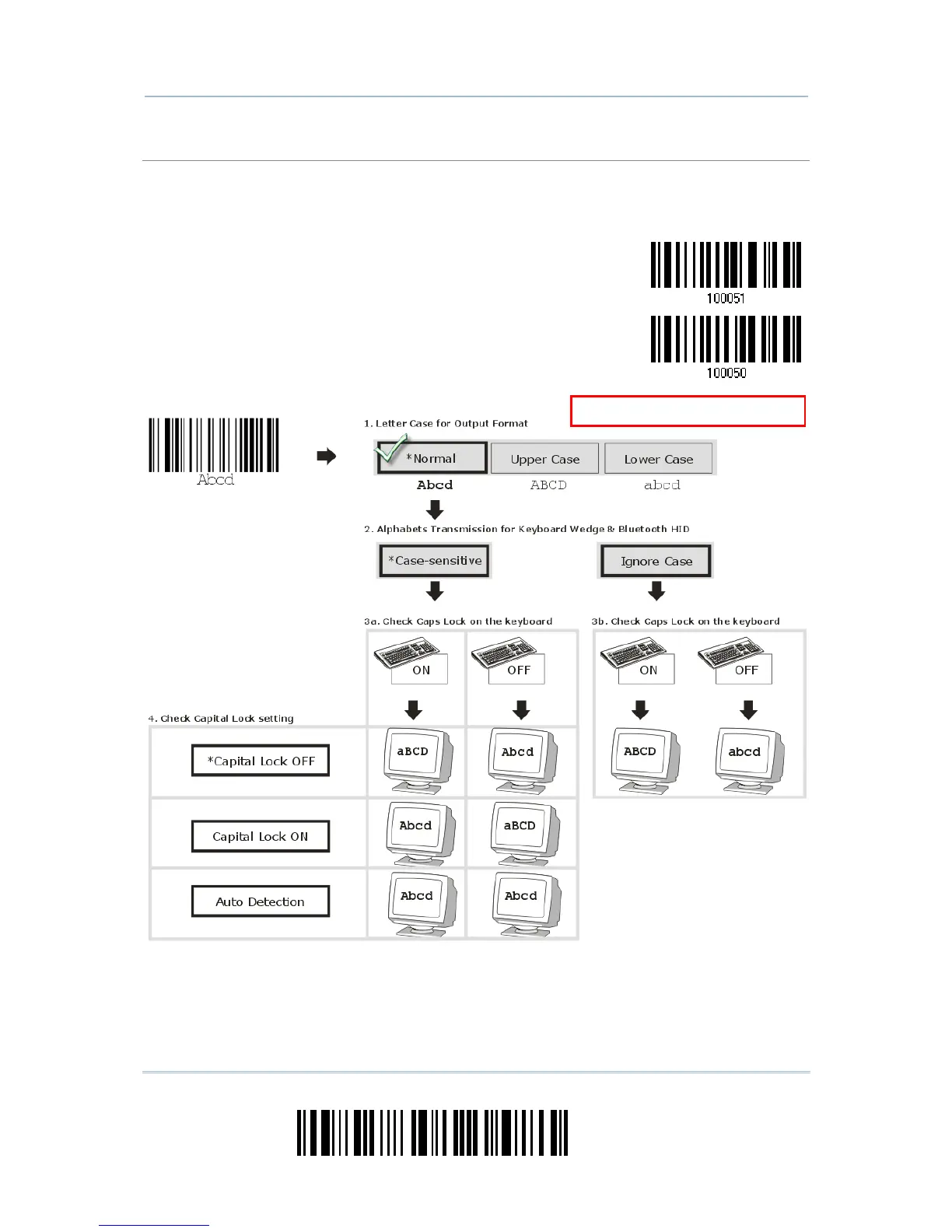

Alphabet Transmission
By default, the alphabet transmission is case-sensi
tive, meaning that the alphabet will be
transmitted according to the ori
ginal case, the status of Caps Lock on the k
eyboard, as well as the
Capital Lock setting. Select [Ignore C
ase] to have alphabet tran
smitted according to the status of
Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
R
efer to 5.1 Letter Case.
103
105
