136
Enter Setup
1663 Barcode Scanner
U
ser Guide

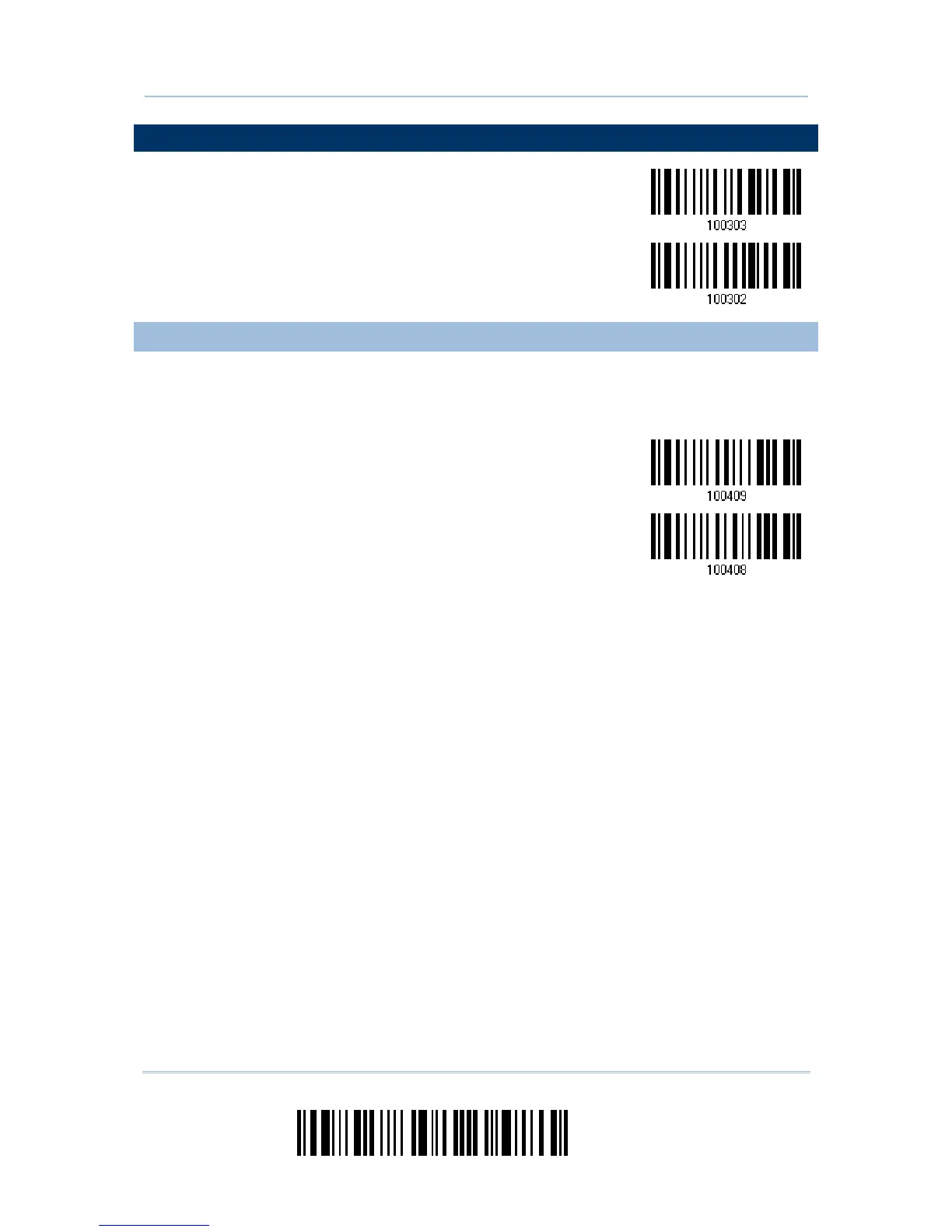

4.14 ITALIAN PHARMACODE
Enable
*Disable
4.14.1 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*
Transmit
I
talian Pharmacode
Check Digit
Do Not Transmit
147
149
Table of Contents
Default Chapter
3
For Canada
3
Important Notices
3
For Hand-Held Product with RF Functions
4
Safety Precautions
4
Care & Maintenance
4
Release Notes
5
Table of Contents
7
Introduction
13
Get Familiarized with 1663 and 3610
14
Install the Battery into 1663
14
Charge the Battery
15
Charge the Battery Via Charger
16
Use 3610
17
Inside the Package
18
Product Highlights
18
Symbologies Supported
19
Quick Start
21
Enter Configuration Mode
23
Exit Configuration Mode
23
Default Settings
24
Save User Settings as Defaults
24
Restore User Defaults
24
Restore System Defaults
24
Read a Setup Barcode
25
Configure Parameters
25
List the Current Settings
29
Create One-Scan Setup Barcodes
31
Chapter 1
33
Battery
33
Power Level
34
How to Operate the Scanner
34
Auto Power off & Power-Saving
35
Understanding the Barcode Scanner
33
Memory
38
Transmit Buffer
38
Memory Mode
38
Free Memory
40
LED Indicator
41
Good Read LED
42
Good Read LED Duration
42
Beeper
43
Beeper Volume
44
Good Read Beep
45
Low Battery Alarm
46
Vibrator
46
Good Read Vibrator
46
Good Read Vibrator Duration
46
Send "NR" to Host
47
Scan Modes
48
Continuous Mode
49
Test Mode
49
Laser Mode
50
Auto off Mode
50
Auto Power off Mode
50
Alternate Mode
51
Aiming Mode
51
Multi-Barcode Mode
52
Scanning Timeout
53
Delay between Re-Read
54
Read Redundancy for All Symblogies
55
Addon Security for UPC/EAN Barcodes
56
Negative Barcodes
56
Effective Decoding Area
57
Positioning Window
57
Adjusting Window
58
Use Direct USB Cable
59
Direct USB Interface
59
Disable Direct USB Interface
59
Pager Beep Duration
60
Time Stamp
61
Date and Time Settings
61
Separator for Date and Time
63
Date Format
64
Hardware Reset
65
Restore System Defaults
65
Reset Connection
65
Selecting Output Interface
67
Bluetooth ® HID
68
Chapter 2
68
Bluetooth® HID
68
Activate Bluetooth ® HID & Select Keyboard Type
69
Reset Connection
70
Keyboard Settings
71
Inter-Character Delay
76
Inter-Function Delay
77
HID Character Transmit Mode
77
Special Keyboard Feature
78
Keypad Support for Iphone/Ipad
78
Simple Pairing for Iphone/Ipad
79
Transmit Speed
79
Bluetooth ® SPP Slave
80
Activate Bluetooth SPP, Slave Mode
80
Inter-Function Delay
80
ACK/NAK Timeout
81
Bluetooth ® SPP Master
82
Activate Bluetooth SPP, Master Mode
82
Bluetooth® SPP Master
82
Inter-Function Delay
83
ACK/NAK Timeout
84
Switch between Master/Slave Mode
84
USB HID Via 3610
85
Activate USB HID & Select Keyboard Type
86
Keyboard Settings
87
Inter-Character Delay
93
Inter-Function Delay
94
HID Character Transmit Mode
94
Special Keyboard Feature
94
USB Virtual COM Via 3610
95
Activate USB Virtual COM
95
Inter-Function Delay
95
ACK/NAK Timeout
96
Direct USB HID
97
Activate USB HID & Select Keyboard Type
98
Keyboard Settings
99
Inter-Character Delay
105
Inter-Function Delay
106
HID Character Transmit Mode
106
Special Keyboard Feature
106
Direct USB Virtual COM
107
Activate USB Virtual COM
107
Avtivate USB Virtual COM_CDC
107
Inter-Function Delay
107
ACK/NAK Timeout
108
Set up a Wpan Connection
109
Connecting Via 3610
110
Connect to 3610
110
Change Interface
111
Connecting Via Bluetooth ® Dongle
112
Change Interface
112
Configure Related Settings
113
Connect to Dongle
116
Change Symbology Settings
123
Chapter 4
124
Codabar
124
Security Level
124
Start/Stop Characters Selection
124
Start/Stop Transmission
125
CLSI Conversion
125
Code 25 - Industrial 25
126
Start/Stop Pattern Selection
126
Verify Check Digit
127
Transmit Check Digit
127
Code Length Qualification
128
Code 25 - Interleaved 25
129
Start/Stop Pattern Selection
129
Verify Check Digit
130
Transmit Check Digit
130
Code Length Qualification
131
Code 25 - Matrix 25
132
Start/Stop Pattern Selection
132
Verify Check Digit
133
Transmit Check Digit
133
Code Length Qualification
134
Code 39
135
Start/Stop Transmission
135
Verify Check Digit
135
Transmit Check Digit
136
Standard/Full ASCII Code 39
136
Security Level
136
Code 39
136
Code 93
137
Code 128
137
Security Level
137
Ean-8
138
126
138
Convert to EAN-13
139
Transmit Check Digit
139
128
140
ISBN Conversion
141
ISSN Conversion
141
Transmit Check Digit
141
Security Level
142
Gs1-128 (Ean-128)
143
Code ID Transmission
143
Field Separator (GS Character)
143
Isbt 128
144
Msi
145
Verify Check Digit
145
Transmit Check Digit
145
Code Length Qualification
146
French Pharmacode
147
Transmit Check Digit
147
Italian Pharmacode
148
Transmit Check Digit
148
Plessey
149
Convert to UK Plessey
149
Transmit Check Digit
149
GS1 Databar (RSS Family)
150
Code ID Selection
150
GS1 Databar Omnidirectional (RSS-14)
151
GS1 Databar Expanded (RSS Expanded)
153
GS1 Databar Limited (RSS Limited)
154
Telepen
155
Telepen Output - Full Ascii/Numeric
155
Upc-A
156
Convert to EAN-13
157
System Number Transmission
157
Transmit Check Digit
157
Upc-E
158
System Number Selection
159
Convert to UPC-A
159
System Number Transmission
160
Transmit Check Digit
160
Chapter 5
161
Letter Case
161
Character Substitution
162
Select a Set for Character Substituion
163
Symbologies for Character Substitution (All 3 Sets)
164
Prefix/Suffix Code
170
Code ID
171
Select Pre-Defined Code ID
171
Change Code ID
173
Clear Code ID Settings
174
Length Code
175
Multi-Barcode Editor
179
Edit a Concatenation of Barcodes
180
Activate the Concatenation of Barcodes
181
Removal of Special Character
182
Defining Output Format
161
Applying Formats for Data Editing
183
Chapter 6
184
Activating Editing Formats
184
Activate Editing Formats
184
Exclusive Data Editing
185
How to Configure Editing Formats
186
Select Format to Configure
187
Restore Default Format
188
Configure Format - Define Data Criteria
189
Applicable Code Type
189
Data Length
196
Matching String & Location
197
Configure Format - Define Data Field
198
Start Position
198
Field Adjustment
198
Total Number of Fields
199
Field Settings
200
Pause Field Setting
206
Configure Format - Define Transmission Sequence
207
Programming Examples
209
Example I
209
Example II
210
Specifications
211
Firmware Upgrade
213
How to Upgrade 1663 Firmware
213
Using 3610
213
Use Direct USB Virtual COM
215
Use Bluetooth ® Dongle
216
How to Upgrade 3610 Firmware
218
Upgrade 3610 CPU Firmware
218
Upgrade 3610 USB Bridge Firmware
219
Host Serial Commands
221
Serial Commands
221
Example
222
3610 Setup Barcodes & Serial Commands
223
3610 Serial Command Table
224
Example
226
Keyboard Wedge Table
227
Key Type & Status
228
Key Type
228
Key Status
228
Example
229
Numeral Systems
231
Decimal System
231
Hexadecimal System
232
ASCII Table
233
Entering PIN Code for Authentication
234
Use Preset PIN
234
Disable Authentication or Use Random PIN
235
