156

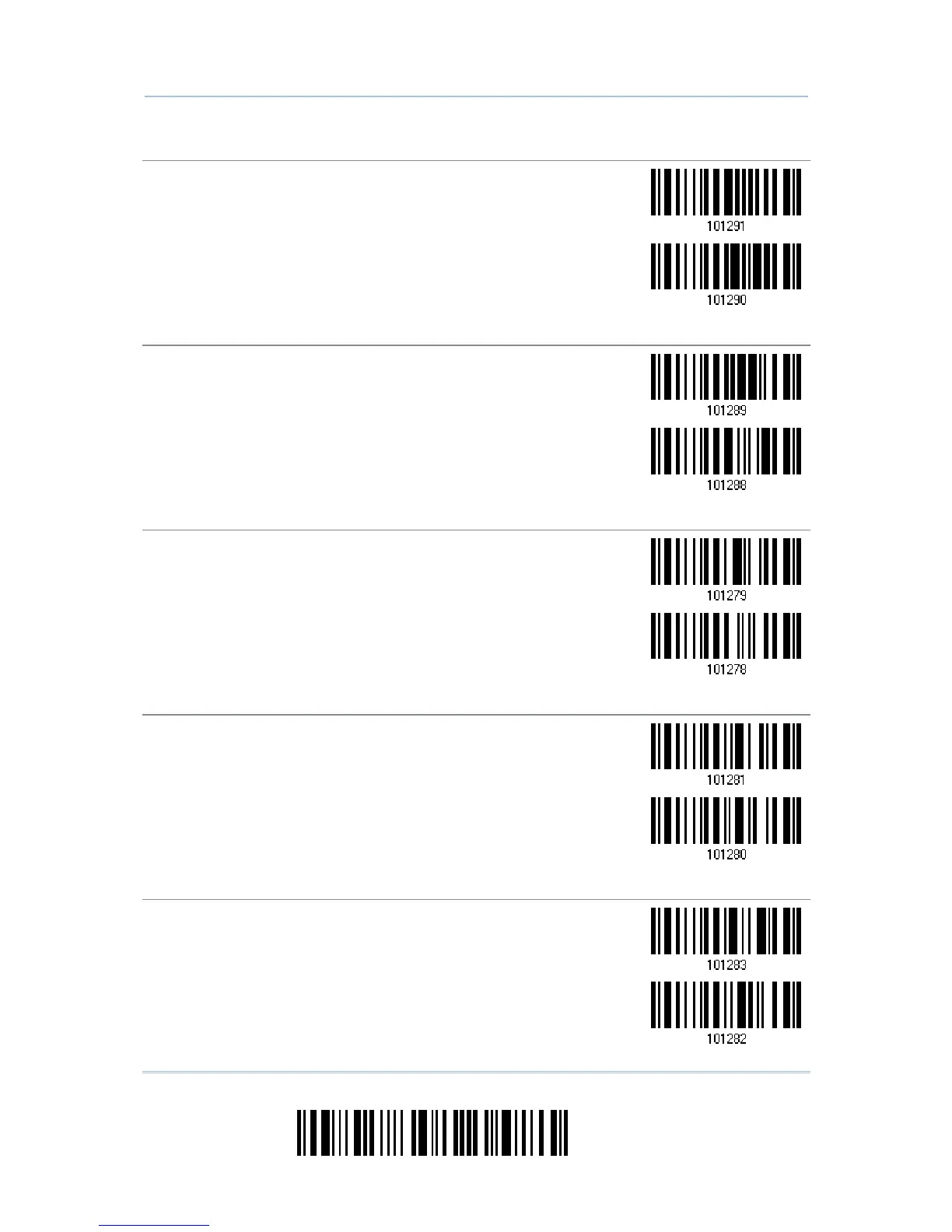

Enter Setup
1663 Barcode Scanner
U
ser Guide
Character Substitution for GS1 Dat
aBar
*Apply
Do Not Apply
Character Substitution for Tele
pen
*Apply
Do Not Apply
Character Substitution for UPC-A (No Addon)
*Apply
Do Not Apply
Character Substitution for UPC-A
Addon 2
*Apply
Do Not Apply
Character Substitution for UPC-A
Addon 5
*Apply
Do Not Apply
167
169
