Table 18:Decimal point and units of the alarm parameters.
Types of parameters Units Decimal point
Voltage
2000 V
200.0 V
20.00 kV
2.000 kV
Programmable
Current A Programmable
Frequency Hz Fixed
Power kW Programmable
Power factor PF Fixed
Cosine φ φ Fixed
Maximum current demand A Programmable
Maximum power demand kW Programmable
THD % Fixed

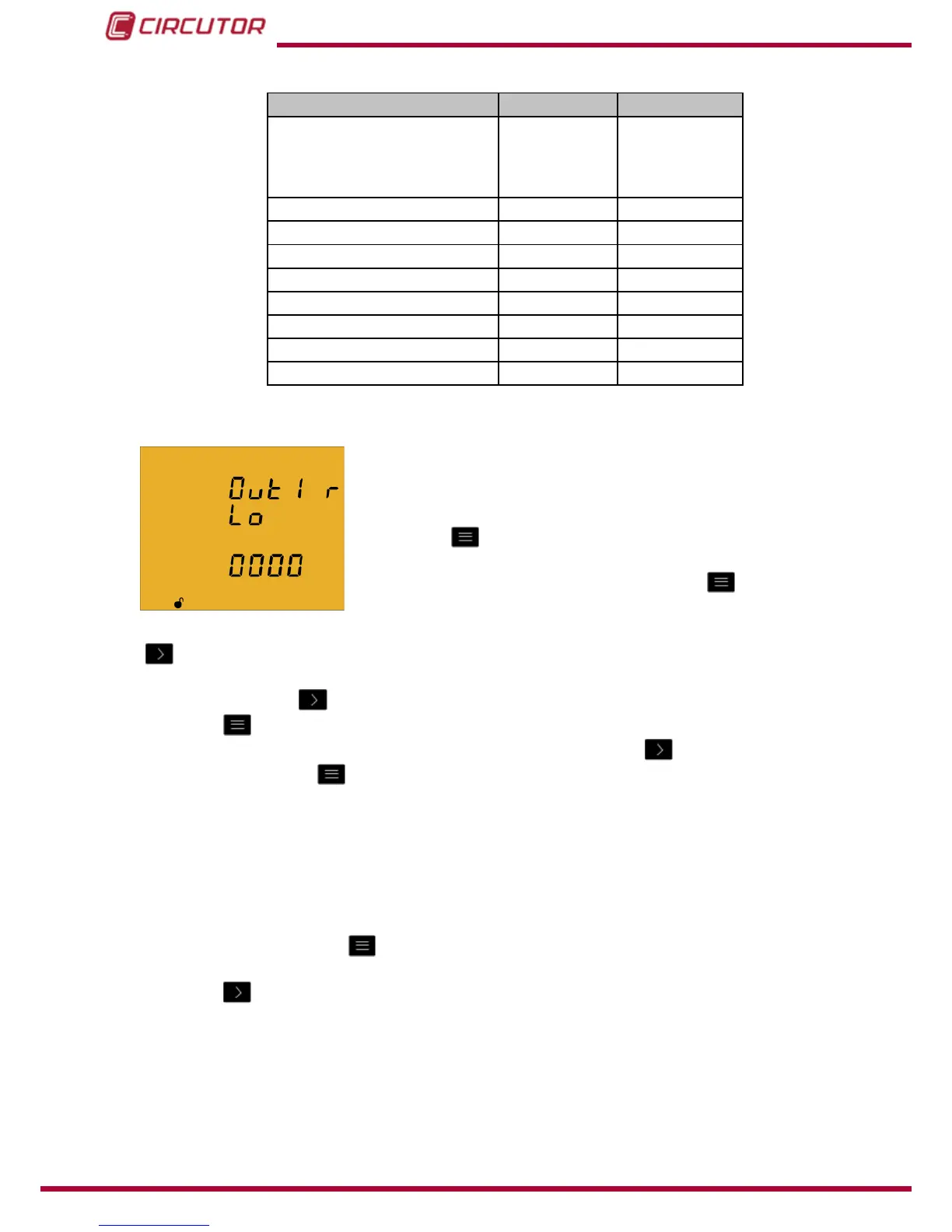

Programming the minimum value
The minimum value: the alarm is activated below this value.
Press key
for 3 seconds to edit the minimum value selection.
The prog icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
key repeatedly,
increasing the value of the ashing digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
In the case of some parameters (
Table 18) you can modify the position of the decimal point.
To do so, press key
after modifying the last digit and the decimal point will start ashing.
Press key
repeatedly to modify the position of the decimal point.
When the decimal point is in the desired position, press the key
to end the programming,
pressing now the key
we can set a positive or negative value.
Note: Pay special attention when programming the Generation Power (displayed with negative
values).
Example: If you wish to enter a generation power alarm with limits between 2 kW and 1 kW,
program the following as the maximum value : - 1 kW and the following as the minimum
value : - 2 kW.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.
60
