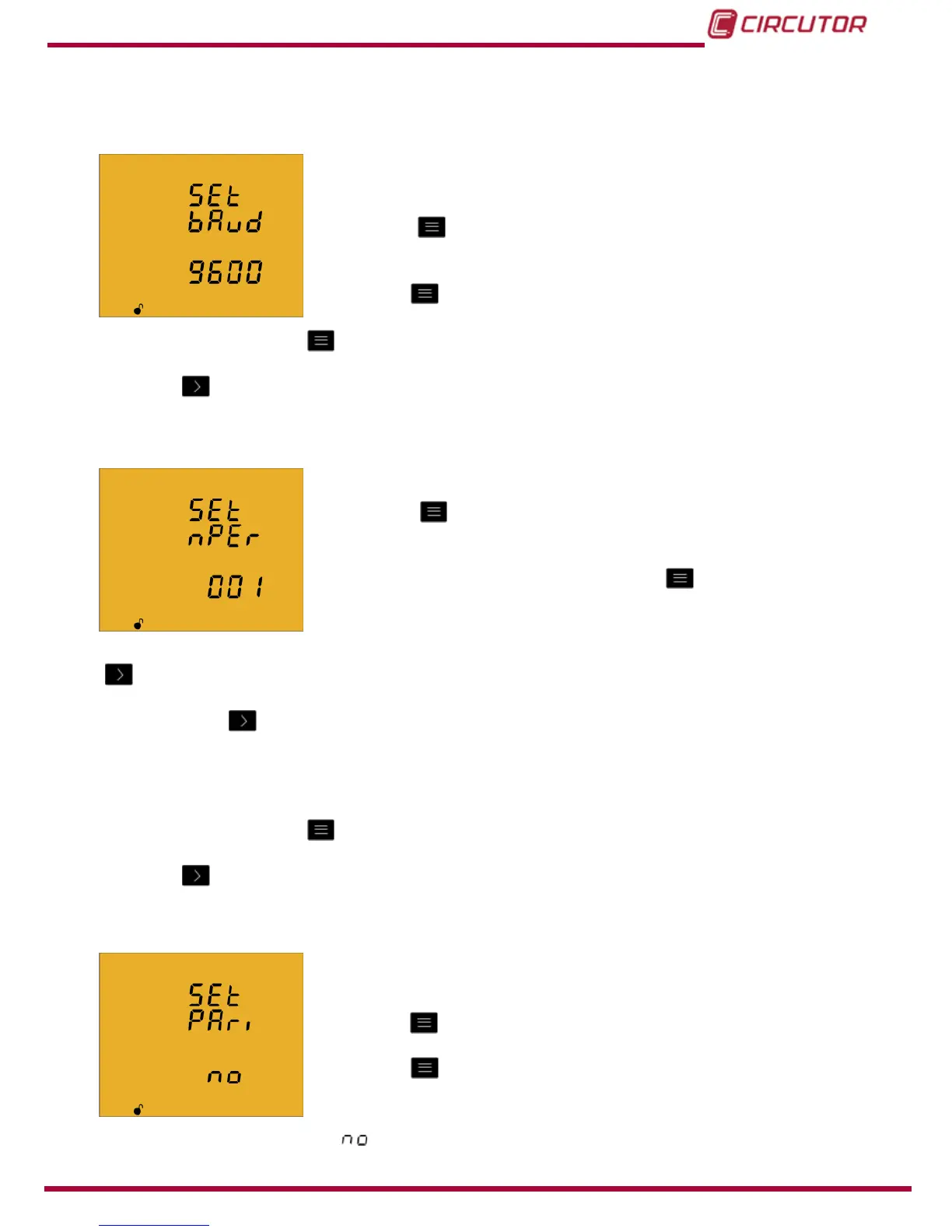

4.9.29.1 Modbus protocol
Transmission speed
The transmission speed of modbus communications is
programmed on this screen.
Press key
for 3 seconds to edit the transmission speed
selection. The prog icon will be displayed on the bottom of the
screen.
Press key
to browse the two options: 9600 or 19200.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.
Peripheral number
The peripheral number is programmed on this screen.
Press key
for 3 seconds to edit the peripheral number
selection. The prog icon will be displayed on the bottom of the
screen.
To enter or modify the value, press the
key repeatedly,
increasing the value of the ashing digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
The peripheral number ranges from 0 to 255.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.
Parity
The type of parity of Modbus communications is selected on this
screen.
Press key
for 3 seconds to edit the parity type selection. The
prog icon will be displayed on the bottom of the screen.
Press key
to browse the options:
no parity
67
