Cisco cBR Series Hardware Installation Guide

• RJ-45 cable
• RJ-45-to-DB-9 adapter
• PC or terminal
Step 1 Connect one end of the RJ-45 cable to the console port on the Supervisor PIC.

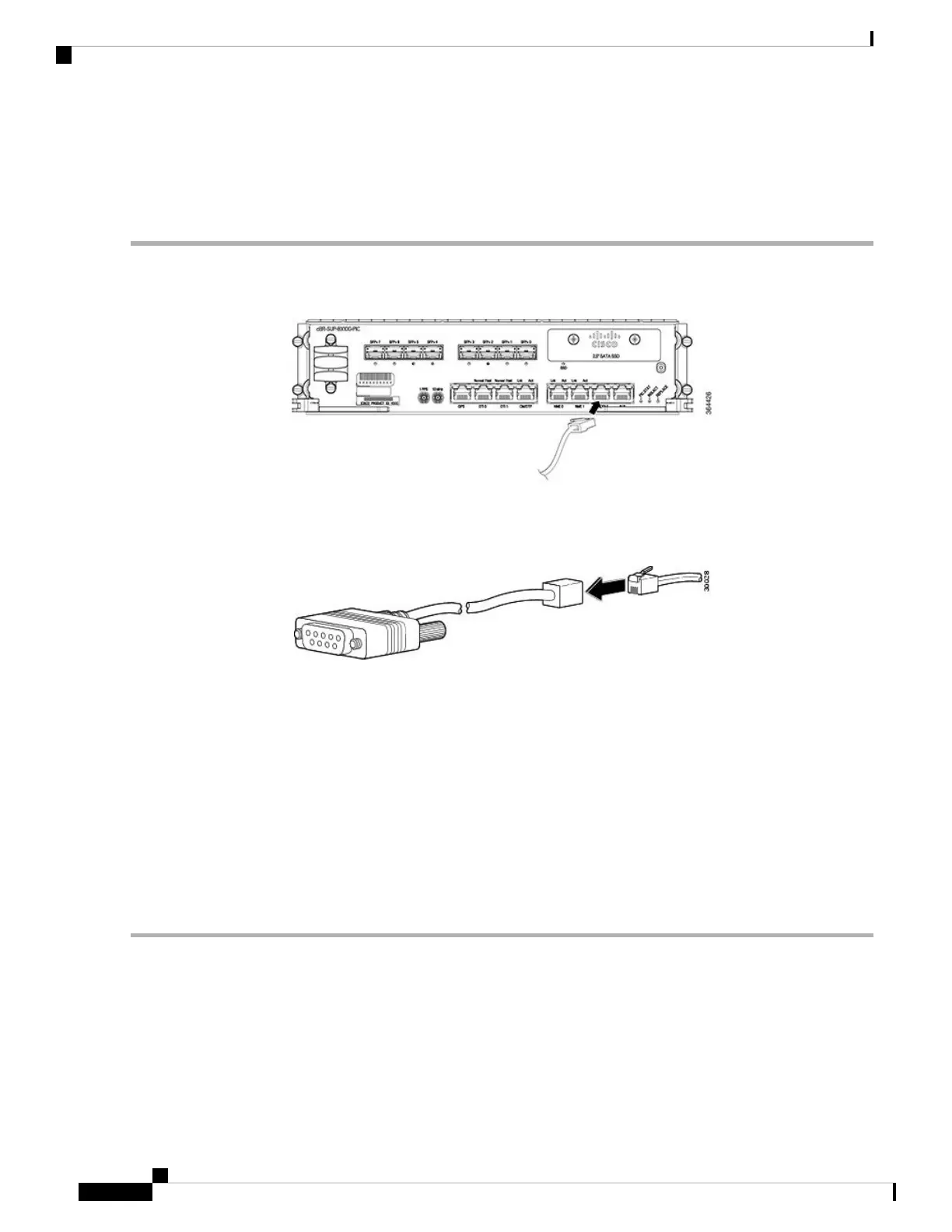

Figure 57: Console Port Connection on the Supervisor PIC
Step 2 Connect the other end of the RJ-45 cable to the RJ-45-to-DB-9 adapter.
Figure 58: Connecting an RJ-45-to-DB-9 Adapter
Step 3 Connect the RJ-45-to-DB-9 adapter to the appropriate serial port on the PC or terminal.
Step 4 Power up the PC or terminal.
Step 5 Configure the PC terminal emulation software or the terminal with the following settings:
• 9600 baud
• 8 data bits
• No parity generation or checking
• 1 stop bit
• No flow control
What to do next
• Route the cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable
routing guide.
• Connect a terminal server to the auxiliary port (if required).
Cisco Converged Broadband Routers Hardware Installation Guide
100
Installing the Supervisor in the Cisco cBR Chassis
Using the Console Port on the Supervisor PIC
