Cisco cBR Series Hardware Installation Guide

• No flow control
What to do next
• Route the cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable
routing guide.
• Connect a terminal server to the auxiliary port (if required).
Using the Auxiliary Port on the Supervisor PIC
The auxiliary port provides a connection for a terminal server to allow remote access to the router and its
command-line interface (CLI).
Before you begin
• Install the Supervisor PIC.
• Install the Supervisor Card.
Required Tools and Equipment
• RJ-45 cable
• RJ-45-to-DB-9 adapter
• Terminal server
Step 1 Connect one end of the RJ-45 cable to the auxiliary port on the Supervisor PIC.

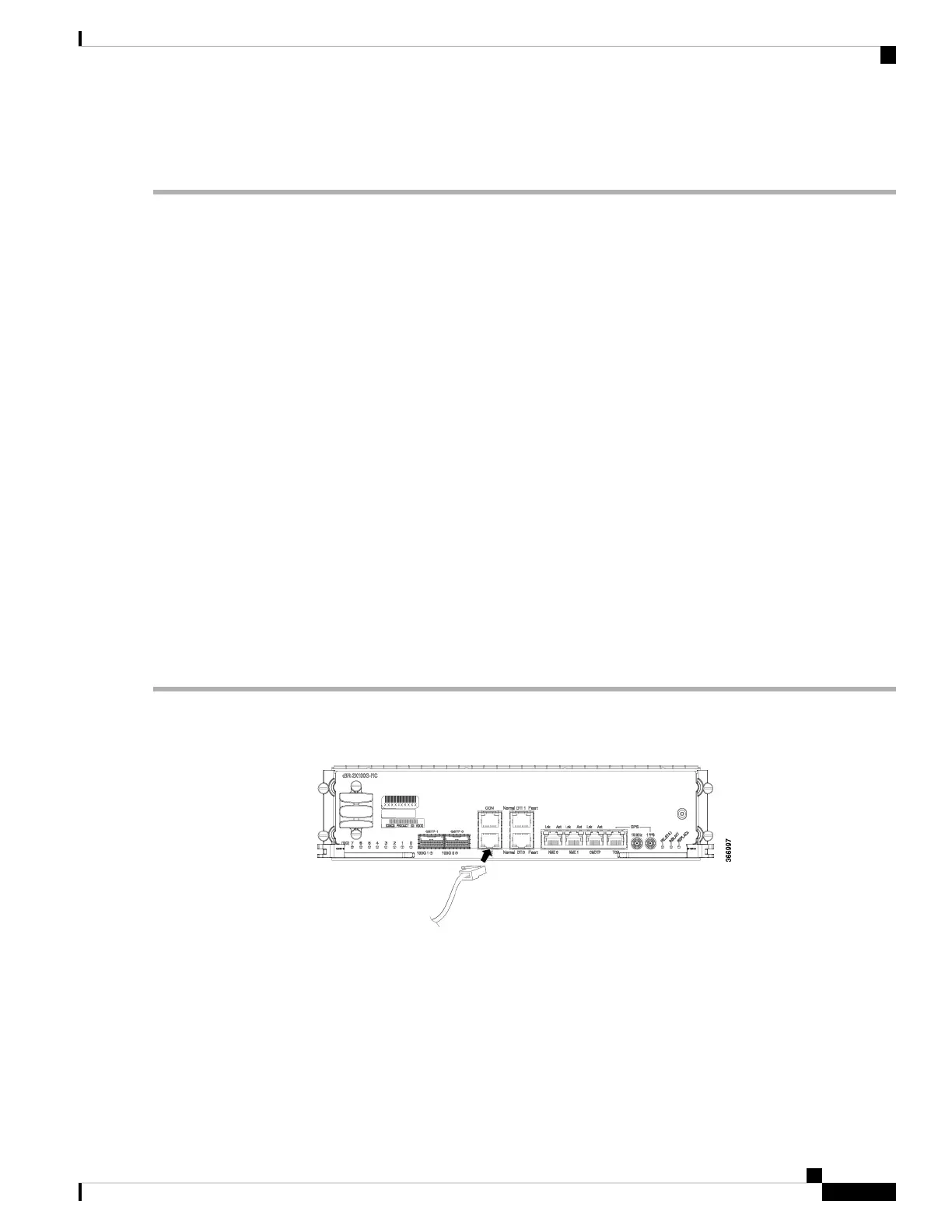

Figure 86: Auxiliary Port Connection on the Supervisor PIC
Step 2 Connect the other end of the RJ-45 cable to the RJ-45-to-DB-9 adapter.
Cisco Converged Broadband Routers Hardware Installation Guide
123
Installing the Supervisor in the Cisco cBR Chassis
Using the Auxiliary Port on the Supervisor PIC

Cisco cBR Series Specifications

General

Category	Network Router
Modular Design	Yes
Operating System	Cisco IOS XE
Model Examples	cBR-8, cBR-4
Product Series	cBR Series
Purpose	Converged Broadband Router
DOCSIS Support	DOCSIS 3.1
Redundancy	Yes
Management	Cisco Prime
Product Family	cBR Series
Downstream Frequency Range	Up to 1.2 GHz
Upstream Frequency Range	Up to 204 MHz
Modulation Schemes	QAM
Power Supply	Redundant AC or DC power supplies
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5 to 95% noncondensing
